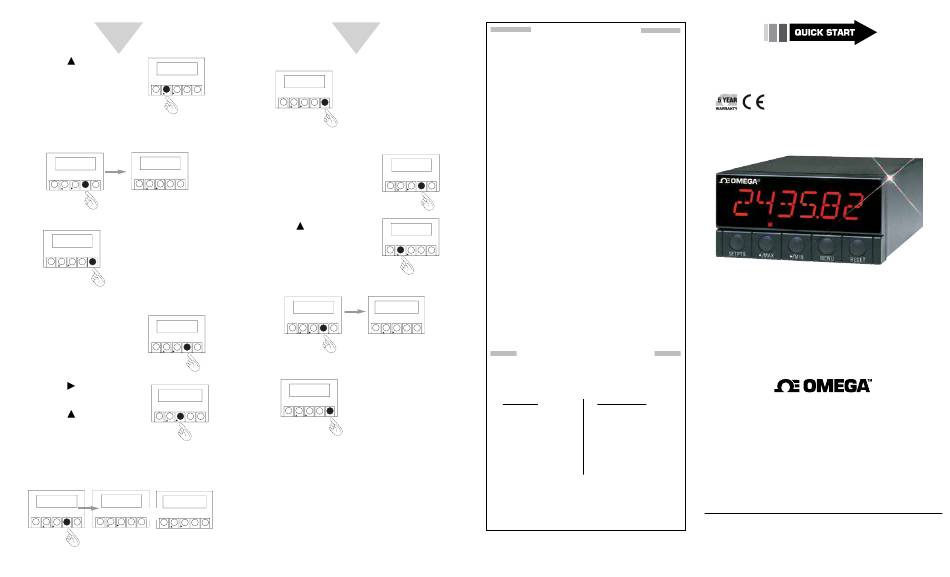

Omega DP41-TC Quick Start Manuals

5
4. Press /MAX until the
J TC
meter displays the
thermocouple type:
SETPTS /MAX RESET
/MIN MENU
Your choices are J, K, T,
E, N, DNJ, R, S, and B.
5. Press MENU. The meter displays:
RDG. C NF
STORED
SETPTS /MAX /MIN RESET SETPTS /MAX /MIN MENU RESET
MENU
6. Press RESET twice. The meter displays:
RESET2 and then shows the
current temperature.
SETPTS
/MAX /MIN MENU RESET
To Set Temperature Units:
1. Press MENU until the
RDG. C NF
meter displays:
SETPTS /MAX /MIN MENU RESET
2. Press /MIN until the
=
RDG. 5 0
meter displays:
3. Press /MAX to change
SETPTS /MAX /MIN RESET
the value. MENU
Your choices are:
0 = °C, 1 = °F, 2 = °K
4. Press MENU to enter the value. The meter
displays:
STORED RDG. S C
RD. S C. O F
or
SETPTS
SETPTS /MAX /MIN MENU RESET /MAX /MIN MENU RESET SETPTS /MAX /MIN RESET
MENU
6
5. Press RESET twice. The meter displays:
RESET2 and then shows the
current temperature.
SETPTS /MAX /MIN MENU RESET
To Set Decimal Point Position:
1. Press MENU until the meter
DEC PT
displays:
SETPTS /MAX /MIN MENU RESET
2. Press /MAX to move the
FFFF. F F
decimal point to the desired
location.
SETPTS /MAX /MIN MENU RESET
3. Press MENU. The meter displays:
STORED CNT BY
SETPTS /MAX /MIN MENU RESET SETPTS /MAX /MIN MENU RESET
4. Press RESET twice. The meter displays:
RESET2 and then shows the
current
temperature.
SETPTS /MAX /MIN MENU RESET
The unit is now up and running.
