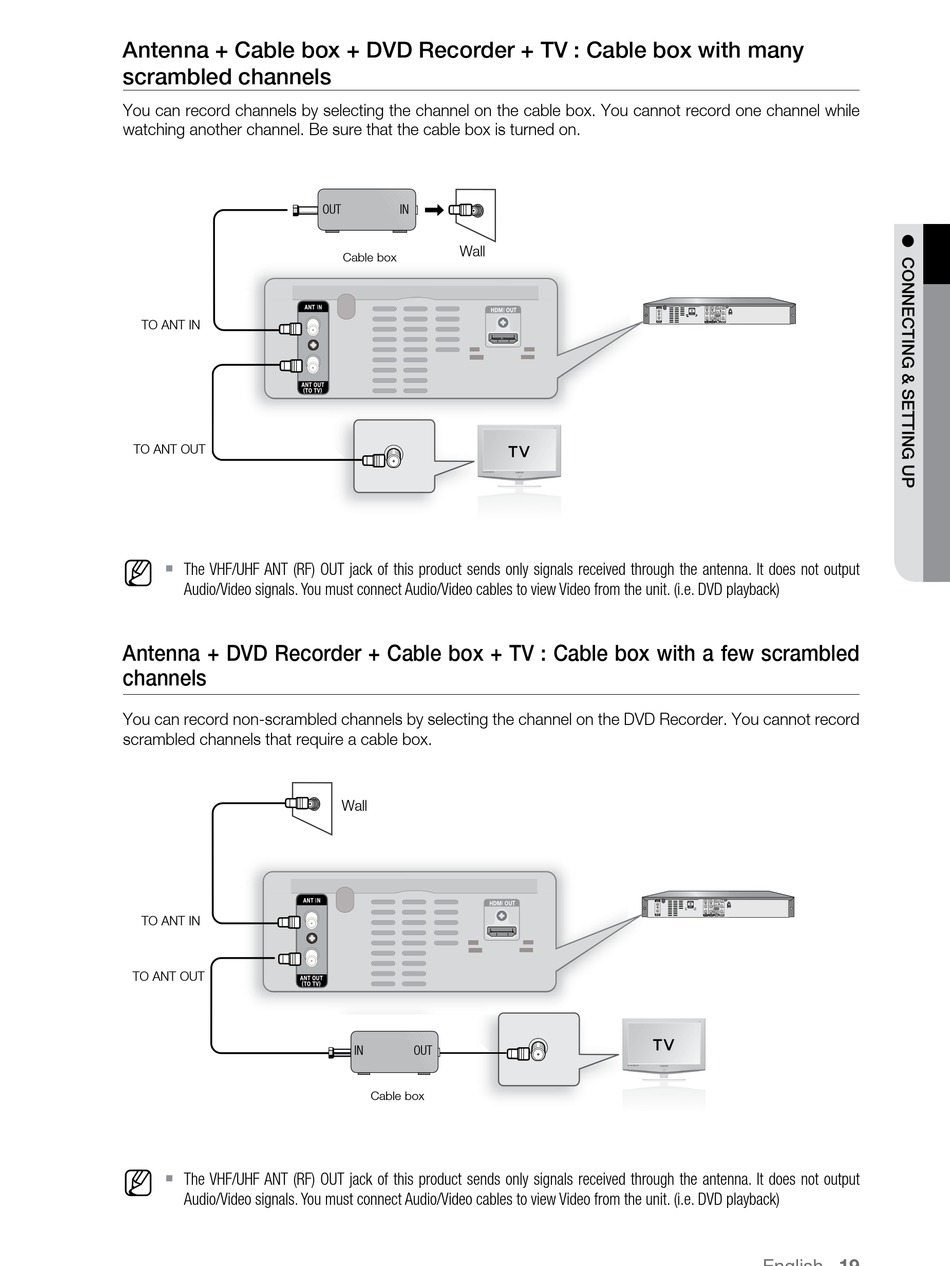

antenna + Cable box + DVD Recorder + tV : Cable box with many
scrambled channels
You can record channels by selecting the channel on the cable box. You cannot record one channel while
watching another channel. Be sure that the cable box is turned on.
TO ANT IN
TO ANT OUT
M
TheVHF/UHFANT(RF)OUTjackofthisproductsendsonlysignalsreceivedthroughtheantenna.Itdoesnotoutput
Audio/Videosignals.YoumustconnectAudio/VideocablestoviewVideofromtheunit.(i.e.DVDplayback)
antenna + DVD Recorder + Cable box + tV : Cable box with a few scrambled
channels
You can record non-scrambled channels by selecting the channel on the DVD Recorder. You cannot record
scrambled channels that require a cable box.
TO ANT IN
TO ANT OUT
M
TheVHF/UHFANT(RF)OUTjackofthisproductsendsonlysignalsreceivedthroughtheantenna.Itdoesnotoutput
Audio/Videosignals.YoumustconnectAudio/VideocablestoviewVideofromtheunit.(i.e.DVDplayback)
OUT IN
Wall
Cable box
Wall
IN OUT
Cable box
