About this manual
Please read this manual carefully before installing and using the camera. Be sure to keep the manual handy for later reference.
High Sensitivity, Day & Night

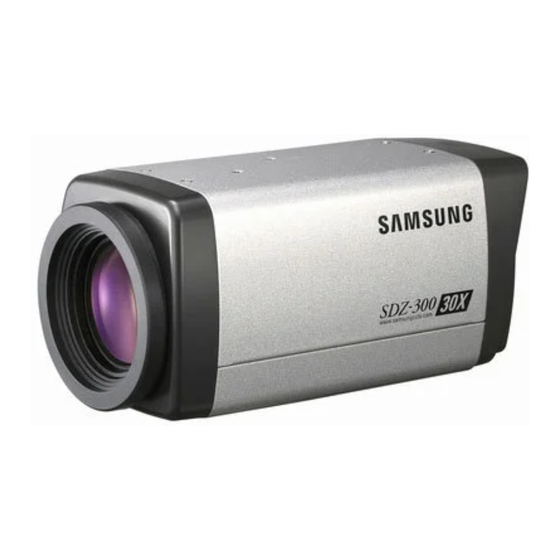

30X Zoom Color Camera
INSTRUCTION MANUAL
SDZ-300
Advertisement
Table of Contents
Related Manuals for Samsung SDZ-300
Summary of Contents for Samsung SDZ-300
-
Page 1: Instruction Manual
Gyeonggi-do 462-703, Korea TEL : +86-22-2761-4724(33821) FAX : +86-22-2761-6514 TEL : +82-31-740-8137~8141 FAX : +82-31-740-8145 SAMSUNG OPTO-ELECTRONICS UK, LTD. • Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey, Surrey KT16 OPS TEL : +44-1932-45-5308 FAX : +44-1932-45-5325 www.samsungtechwin.com www.samsungcctv.com About this manual P/No. - Page 2 Thank you for purchasing a SAMSUNG CCD CAMERA. Before operating the camera, confirm the camera model and proper input power voltage. In order to that you can understand this manual thoroughly, we'll introduce our model description. SDZ-300 SERIES •NTSC MODEL •PAL MODEL...
- Page 3 Features 30x Optical Zoom Day & Night The built-in SDZ-300 optical zoom lens is a The camera automatically determines whether highly durable component. It features auto it is night time or day time, selecting operating focus, auto iris, and zoom functions.
-
Page 4: Table Of Contents
Contents Precautions Components and Accessories Overview Bottom Back Connection Connecting To Monitor Connecting To Power Connecting To Connection Operating Your Camera Menu Configuration Menu Setup • CAM TITLE • WHITE BALANCE • BACKLIGHT • MOTION DETECTION • FOCUS • EXPOSURE •... -
Page 5: Precautions
Precautions Do not install under extreme Do not install in high humidity temperature conditions. environment. Use only under temperature conditions May lower image quality. between -10˚C and +50˚C. Provide good ventilation when using in high temperature conditions. Do not install under unstable Avoid touching the camera lens. -
Page 6: Components And Accessories
Components and Accessories 1. 30x Zoom Color Camera SDZ-300 2. Instruction Manual 3. 6-Pin Connection Cable 4. Remote Controller (Optional) COLOR CCD CAMERA User’s Manual Overview Tripod Mounting Bracket Screw Hole Used to fix tripod mounting bracket on top of the camera. -
Page 7: Overview
Overview Bottom Tripod Mounting Hole Used to install the camera on an optional tripod. The tripod must be equipped with screws with specifications shown on the right. 1/4"-20 UNC (20 THREAD) L:4.5mm±0.2mm (ISO standard), or 0.197" (ASA standard) Attach the bracket to the top of the camera. Use screws included in the package or their equivalent (less than 6mm). -
Page 8: Connection
Overview Power Input Terminal Power supply terminal (DC12V±10%). Power LED Illuminates when power is supplied. Video Output Jack Used to connect an external video monitor in jack. Communication Control Connector Used to connect the Remote Controller (Optional). Includes external 'SYNC' signal input pin, which is used for the line lock function. -
Page 9: Connecting To Connection
Connection Connecting to connection External Control Connector Function Connector Signal Level +6V~+12V Tele ZOOM Wide -6V~-12V +6V~+12V FOCUS Near -6V~-12V +4.0V~+5.0V There is motion 5±0.5sec There is no motion * MD (Motion Detection) Output Signal Level (less than 10mA) * When using the MD function, the 'GND' should be connected to the frame ground. Communication Control Connector The camera can be controlled by using external controllers like a Remote controller. -
Page 10: Operating Your Camera
Operating Your Camera Menu Configuration MAIN SETUP MENU CAM TITLE • • WHITE BALANCE ATW(OUTDOOR) • • BACKLIGHT • • HIGH • MOTION DET • • FOCUS MODE ZOOM TRK • • ZOOM SPEED D-ZOOM • • DISP ZOOM MAG ZOOM POS INIT •... -
Page 11: Cam Title
Operating Your Camera MAIN SETUP Select feature using the UP CAM TITLE or DOWN button. WHIET BAL BACKLIGHT MOTION DET FOCUS EXPOSURE SPECIAL RESET EXIT 3. Change the status of the selected feature using the LEFT or RIGHT button. 4. When completed, move the arrow indicator to 'EXIT' and press the SET button. Notes •... -
Page 12: White Balance
Operating Your Camera 5. Select on screen position of the CAM TITLE. Move the cursor to 'POS' and press SET button. The CAM TITLE is displayed on the top-left of the monitor screen. (Default position) FRONT DOOR to Locate, then SET to Locate, then SET Select the position by using the 4-directional buttons, then press the SET button to confirm the position. -
Page 13: Backlight
Operating Your Camera Notes • Proper White Balance may not be obtained under the following conditions. When the scene contains mostly high color temperature object, such as a blue sky or sunset. When the scene is dim. If your camera directly faces a fluorescent lamp or is used in an environment of varying lighting conditions. -
Page 14: Focus
Operating Your Camera FOCUS MAIN SETUP CAM TITLE WHIET BAL BACKLIGHT MOTION DET FOCUS EXPOSURE SPECIAL 1. Press the SET button to access the main setup manu and then position the indicator over FOCUS using the UP or DOWN button. 2. - Page 15 Operating Your Camera •FAST: To move zoom fast. •SLOW: To move zoom slowly. Notes • The 'ZOOM SPEED' mode cannot be used if 'MODE' is set to 'AUTO' and 'ZOOM TRK' is 'ON'. D-ZOOM: Configure magnification limit from x2~x10 using this feature. Position the indicator over 'D-ZOOM' using the UP or DOWN button.
-
Page 16: Exposure
Operating Your Camera EXPOSURE EXPOSURE SETUP BRIGHTNESS 50... IRIS AUTO SHUTTER MIDDLE SSNR MIDDLE SENS-UP AUTO 1. Press the SET button to access the main setup menu and then position the indicator over 'EXPOSURE' using the UP or DOWN button. 2. - Page 17 SHUTTER MIDDLE SSNR MIDDLE SSNR(Samsung Super Noise Reduction): On screen noise reduction. 1. Position the indicator over 'SSNR' using the UP or DOWN button. 2. Set 'SSNR' to the desired mode using the LEFT or RIGHT button. •LOW : Low noise reduction •MIDDLE : Medium noise reduction...
-
Page 18: Special
Operating Your Camera Notes • Changing 'AGC' setting from LOW to HIGH results in greater sensitivity, as well as on screen noise. • Setting 'AGC' to OFF locks 'SSNR' configuration. SENS-UP : This feature ensures clear images at night or under low lighting conditions. - Page 19 Operating Your Camera •PRESET NO : Up to eight different preset configurations are supported. USER PRESET SETUP PRESET NO. NO. 1 PRESET MODE PRESET SAVE PRESET CLEAR PRESET DEFINED •PRESET MODE: Configure initial settings under FOCUS, EXPOSURE, etc. •PRESET SAVE: Save configured preset. USER PRESET SETUP PRESET NO.
- Page 20 Operating Your Camera •GROUP SEL : Choose up to eight groups. Each group can consist of four mask areas. •MASK COLOR : Adjust desired mask color level. •AREA SEL : Configure eight mask areas. •AREA MODE : Mask area display. •TOP : To move the mask area up.
-
Page 21: Reset
Operating Your Camera Notes • For NTSC models, the line-lock mode can be used if the external SYNC signal frequency is at 60Hz. • For PAL models, the line-lock mode can be used if the external SYNC signal frequency is at 50Hz. COMM ADJ: Use this feature to select communication protocol (refer to p.46~ p.51 for details). -
Page 22: Troubleshooting
Troubleshooting Refer to the following table if you are experiencing trouble with your camera. Contact an authorized technician if the table does not provide you with a solution to the trouble. Problem Solution No display • Check the power cable and the wiring between the camera and the monitor. -
Page 23: Specification
Specifications SDZ-300ND SDZ-300N SDZ-300PD Input Voltage DC 10V~14V DC 10V~14V DC 12V(±15%) (Recommended : (Recommended : AC 24V(±15%) 12V) 12V) Input Current DC 12V 250mA: 250mA: 333mA: Steady-state Steady-state Steady-state 416mA: 416mA: 500mA: Max (Zoom, Focus, Max (Zoom, Focus, Max (Zoom, Focus, Day&night motor Day&night motor Day&night motor... -
Page 24: Stw Protocol Command Description
STW Protocol Command Description Byte1 Command Name Command Packet Return Packet Checksum CHECKSUM CALCULATION: UNARY OPERATION OF SUMMATION FROM BYTE2 TO BYTE9. C SOURCE EX) CHECKSUM = ~(BYTE2+BYTE3+... +BYTE8+BYTE9); Function Reset all data to factory default value. Reset Command Packet Return Packet Function Move focus lens to far direction. - Page 25 STW Protocol Command Description Function Save current user preset configuration information. USER PRESET Save Command Packet Return Packet Parameter P1: 00h = USER PRESET 1 01h = USER PRESET 2 02h = USER PRESET 3 03h = USER PRESET 4 04h = USER PRESET 5 05h = USER PRESET 6 06h = USER PRESET 7...
- Page 26 STW Protocol Command Description Function Move OSD arrow to up. OSD Menu Up Command Packet Return Packet Function Move OSD arrow to down. OSD Menu Down Command Packet Return Packet Function Move OSD arrow to left. OSD Menu Left Command Packet Return Packet Function Move OSD arrow to right.
-
Page 27: Declaration Of Conformity
