Page 1: User Manual

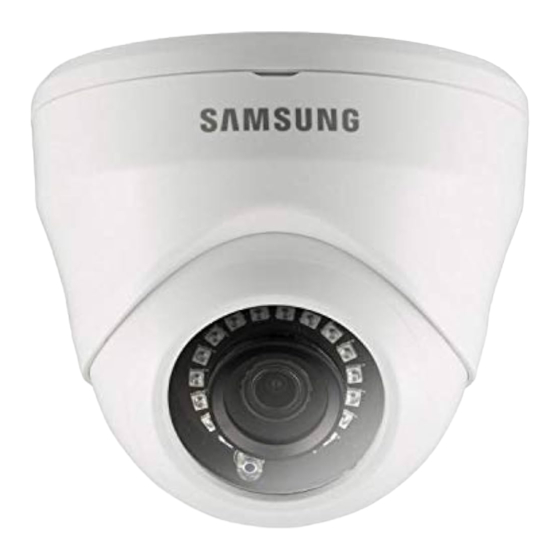

1080p HD Analog Dome Camera User Manual SDC-9443DF... - Page 2 1080p HD Analog Bullet Camera User Manual Copyright ©2016 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
-
Page 3: Important Safety Instructions
overview important Safety inStructionS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. -
Page 4: Safety Precautions
overview Safety precautionS CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. - Page 5 caution Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference. Do not install in a location subject to high temperature, low temperature, or high humidity. Doing so may cause fire or electric shock.
-
Page 6: Table Of Contents
overview contentS overview Important Safety Instructions Safety Precautions Contents Product Features Part Names and Functions inStallation Before Installation connection and inStallation Connection of DVR and monitor Power connection Use of Communication Connection and Installation camera operationS Camera Menus Main menu appendix Product Specification Product Overview... -
Page 7: Package Contents
product featureS • High resolution Use the 2 mega-pixel CMOS, and provide high resolution equivalent to 900TVL horizontal resolution. • High sensitivity The built-in high sensitive COLOR CMOS can produce a clear image. 0Lux (Auto IR LED On) • d-wdr (digit wide dynamic range) With the OV2710 CMOS sensor, this camera can provide a clear and quality image even under the circumstance of backlight, by way of and accurate exposure for the dark area and reducing exposure for the bright area: resulting in a clear, detailed and accurate image. -
Page 8: Part Names And Functions
overview part nameS and functionS Item Description Power input terminal: Connect the power as specified. (DC 12V) VIDEO OUTPUT jack: Video signals are output through this port. Connect this port to the Video IN port of an AHD DVR. Bottom Cover Top Cover Lens: 3.6mm focal length enables you to monitor at a wider field of view. -
Page 9: Before Installation
installation Before inStallation Ensure you read out the following instructions before installing the camera: • You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. • Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire. - Page 10 installation installation 1. Select installation site. Fix the Bottom cover to the wall or ceiling by using the 3 screws attached. 2. Connect DC 12V power supply to the camera. 3. Adjust camera position to make sure it points to the area you would like to monitor.
-
Page 11: Connection Of Dvr And Monitor
connection and installation connection of dvr and monitor Connect the video output jack of the camera to the video input jack of DVR and monitor. Monitor • Please refer to the manual attached with the device as the connection method varies from device to device. •... -
Page 12: Video Cable
connection and installation uSe of communication • Coaxial communication system connection and inStallation video cable Connect the video output jack of the camera to the monitor with BNC coaxial cable, as shown below: Please use an auxiliary video amplifier if the distance between the camera and monitor exceeds the recommended maximum value. -
Page 13: Camera Menus
camera operations camera menuS 1. Open DVR main menu, and go to Device PTZ Protocol. (Based on DVR SDR-B73303/SDR-B74303/ SDR-B75303) Set Coax as Protocol. 2. Go to live view interface, left click on the live channel and select the PTZ control icon [ ] to have the following interface. - Page 14 camera operations 0-15 optional. The higher the gain level, the brighter the screen, but the more the noise. SenS-up AUTO/OFF. When it is set as AUTO, the higher the frame accumulation, the brighter the image, and the lower the frame rate under a low-luminance environment. BriGHtneSS 0-100 is optional, and the larger the value, the brighter the image.
- Page 15 BacKliGHt < main menu > < BacKliGHt (OFF/BLC/HLC) > It will adjust automatically, therefore, you can distinguish the object and the background and select the required area in the image to view it more clearly even in a lighting scene with serious backlight. 1.level middle 2.area...
-
Page 16: White Bal
camera operations wHite Bal < main menu > < wHite Bal (ATW/AWC SET/INDOOR/OUTDOOR/MANUAL/AWB) > • ATW : When the color temperature is between 1,800K° and 10,500K°, set as ATW. • AWC SET : Set the white balance manually according to the current color temperature. • INDOOR : When the color temperature is between 4,500K°... -
Page 17: Cam Title
nr (noise reduction) < main menu > < nr > The function is to reduce the image noise. The noise reduction level can be set according to the actual situation of image. At the same time. The higher the level, the noise reduction effect is better. 1.2dnr middle 2.3dnr... - Page 18 camera operations d-effect d-effect 1.freeZe 2.mirror 3.return • FREEZE : ON/OFF. Choose ON which indicates the image cannot be rotated. OFF indicates the image can be rotated. • MIRROR : OFF/MIRROR/V-FLIP/ROTATE - MIRROR : Rotate Horizontal - V-FLIP : Rotate Vertical - ROTATE : The image is rotated by 180 degrees • RETURN: RET/SAVE&END.
- Page 19 • ALARM : Alarm setting alarm 1.view type 2.oSd view 3.time ..|..3 4.return - VIEW TYPE : Optional alarm display modes of motion detection: ALL/OFF/BLOCK/OUTLINE can be selected. BLOCK : After the MOTION alarm is triggered, the set MOTION area is displayed in a blocked area. OUTLINE : After the MOTION alarm is triggered, the set MOTION area is displayed in a area with border.
- Page 20 camera operations • COLOR : Set the color in the privacy area. WHITE/BLACK/BLUE/YELLOW/GREEN/CYAN is optional. • TRANS : Adjust the color transparency in the frame of the motion detection area. 0.25/0.50/0.75/1.00 is optional, and the larger the value, the higher the transparency. • DEFAULT : Default setting parameters • RETURN: RET/SAVE&END output...
- Page 21 return RET/SAVE&END In the following cases, the appear/indicator may malfunction. - Some random motion may occur continuously - Fixed object moves on the same position continuously - When a new object covers an object with changes. The identification size may have errors due to different shapes of the object. In the following cases, the motion detection and the image analysis alarm performance may be reduced or abnormal operation may occur.
-
Page 22: Product Specification
appendix product Specification Details Item SDC-9443DFN SDC-9443DFP Video Imaging Device 1/2.7” 2M CMOS Total Pixels 1952 x 1092 Effective Pixels 1920 x 1080 Scanning System Progressive Scan Min. Illumination 0 Lux (Auto IR LED on) S / N Ratio 52dB (AGC off) BNC(AHD, CVBS Selectable) BNC(AHD, CVBS Selectable) Video Output... - Page 23 Details Item SDC-9443DFN SDC-9443DFP Defog Off / On Motion Detection Off / On(4 zones) Privacy Masking Off / On (4 zones) Gain Control White Balance ATW / AWB/ Outdoor / Indoor / Manual / AWC(1,800K°~10,500K°) AUTO / FLK / 1/50,000sec~1/30sec / X2 ~ AUTO / FLK / 1/50,000sec~1/25sec / X2 ~ Electronic Shutter Speed Reverse...
-
Page 24: Product Overview
appendix product overview unit : mm(inch) Ø 100 [3.94] 24_ appendix... -
Page 25: Troubleshooting
trouBleSHootinG Please refer to the following table if you have problems during camera operation. Please contact with the authorized technicians if your problem cannot be solved through the guidance. Problem Troubleshooting There is no content displayed on y Check whether the power cable and the cable between camera and the screen. - Page 26 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 Head Office 86 Cheonggyecheon-ro Jung-gu Seoul 04541 Korea Tel +82.2.729.5277, 5254 Fax +82.2.729.5489 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom Tel +44.1932.57.8100 Fax +44.1932.57.8101...
