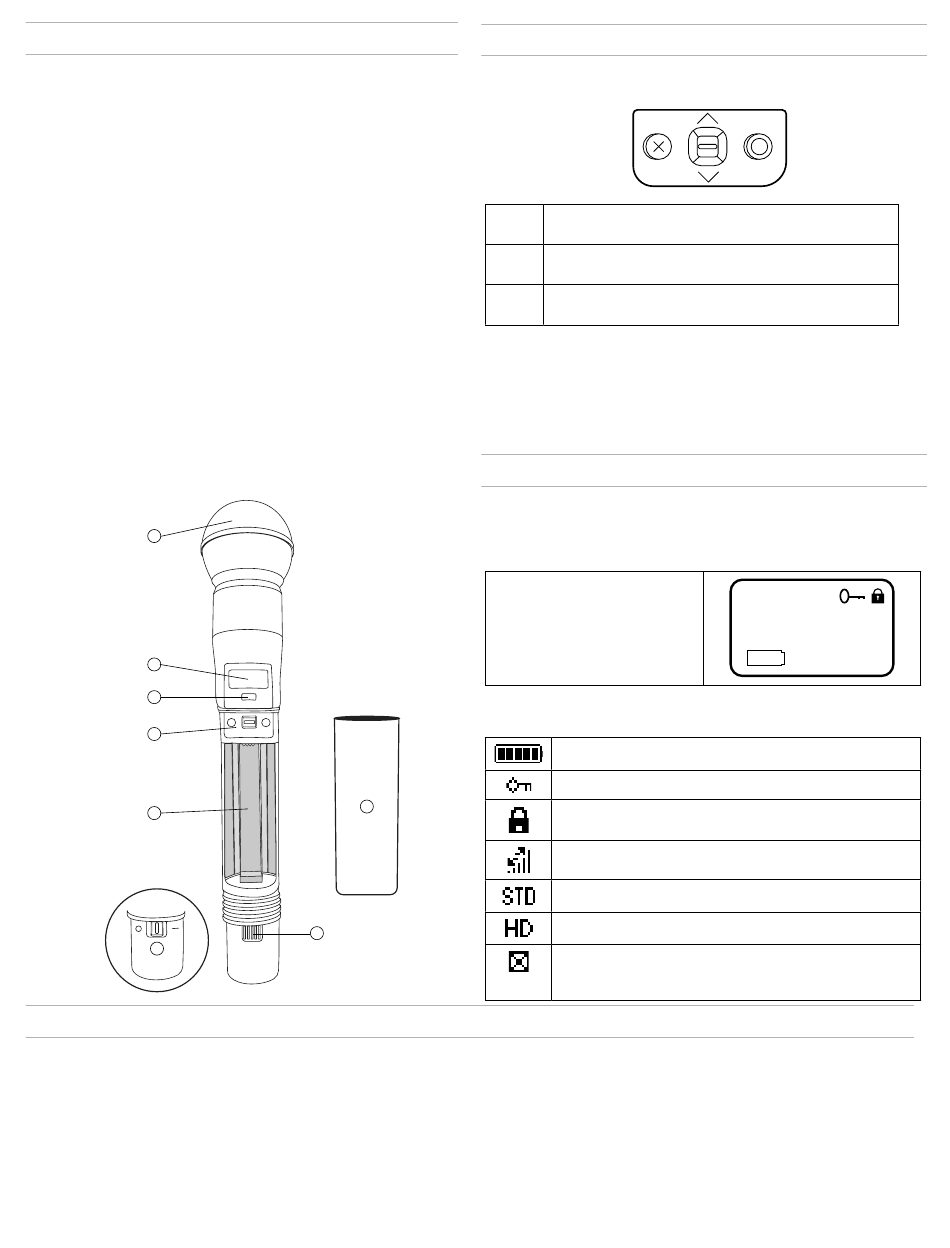

ADX2FD Transmitter Overview
① Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
② Display
View menu screens and settings. Press any control button to activate
the backlight.
③ Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated
transmitter programming.
④ Control Buttons
Use to navigate through parameter menus and change values.
⑤ Battery Compartment
Requires Shure rechargeable battery.
⑥ On/Off Switch
Powers the unit on or off.
⑦ Handle
Unscrew to access controls and batteries.
⑧ Battery Charging Contacts
Charging contacts for use with docking battery chargers.
1
2
3
4
5
6

Locking the Interface

Lock transmitter interface controls to prevent accidental or unauthorized changes to parameters. The lock icon is shown on the home screen when the
interface lock in enabled.
1. From the Utilities menu, navigate to Lock and select one of the following lock options:
- None: The controls are unlocked
- Power: The power switch is locked
- Menu: The menu parameters are locked
- All: The power switch and menu parameters are locked
2. Press O to save.
Tip: To quickly unlock a transmitter: Press O twice, select Unlocked, and press O.

Transmitter Controls

Use to navigate through parameter menus and change values.
X
O
∨∧
Tip: Use the following control shortcuts for quick set up:
• Hold the ∧ button while powering-on to lock the transmitter controls
• Hold the X button while powering-on to set the transmitter RF output to

Home Screen Display

The home screen shows transmitter information and status.
Tip: There are four options to choose the information shown on the home
screen. Use the arrow buttons to select one of the following choices:
The following icons appear to indicate transmitter settings:
7
8
5
Exit: Acts as a 'back' button to return to previous menus or
parameters without confirming a value change
Enter: Selects menu screens and confirms parameter
changes
Use to scroll through menu screens and to change param-
eter values
mute
• Name
• F1 and F2 Frequency Settings
• F1 and F2 Group (G) and
Channel (C)
• Device ID
Battery runtime in hours and minutes or bar display
Key: Displayed when encryption is enabled
Displayed when controls are locked. Icon will flash if access
is attempted to a locked control (power or menu).
ShowLink signal strength displays 0 to 5 bars
STD: Standard Transmission Mode
HD: High Density Transmission Mode
Box: When the box has an "x", Mute Mode is on and
engaged. If the box is empty, Mute Mode is on, but not
engaged.
Shure
470.200
MHz
7:45
