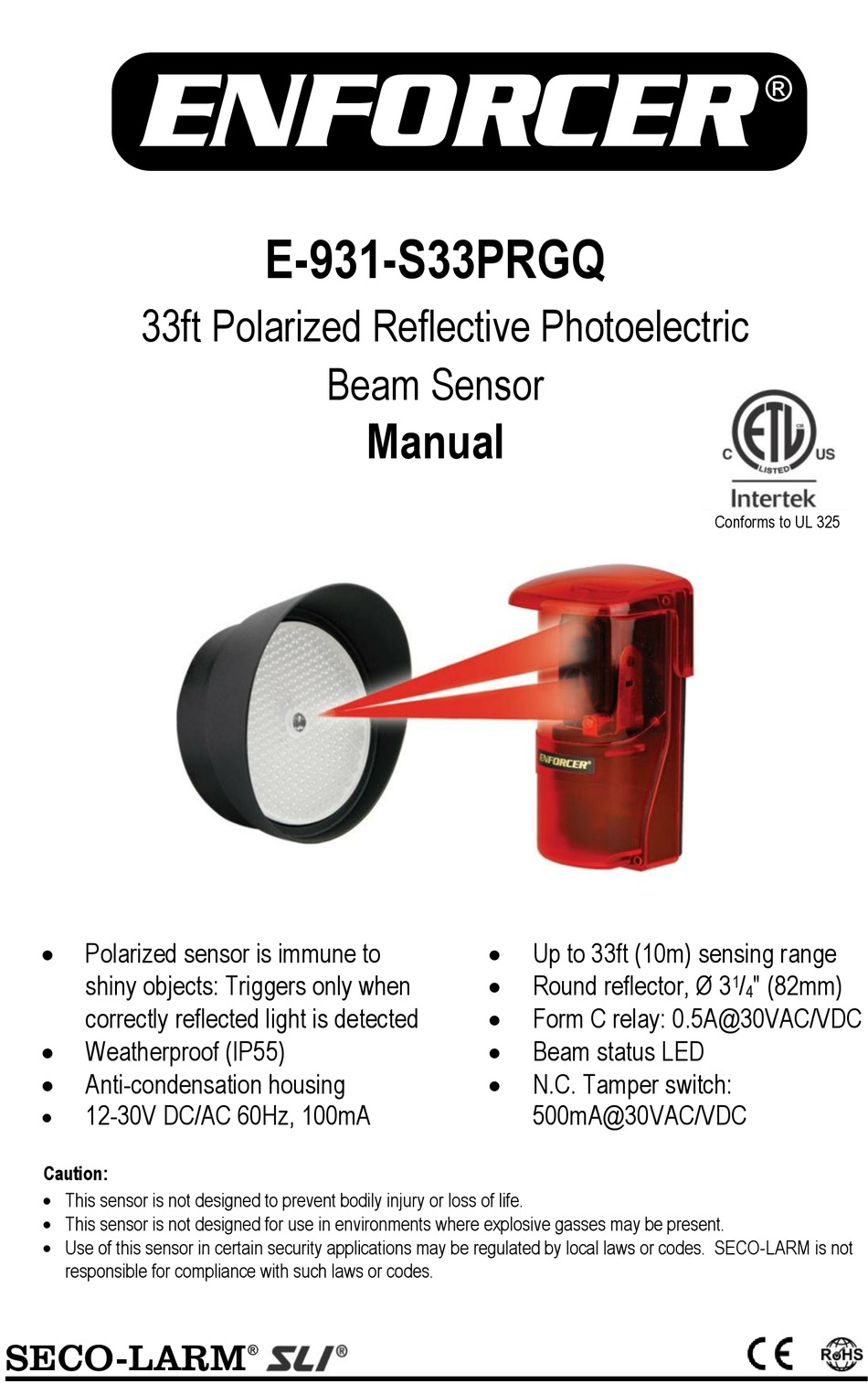

SECO-LARM ENFORCER E-931-S33PRGQ Manual

33ft polarized reflective photoelectric beam sensor

Download this manual

33ft Polarized Reflective Photoelectric



Polarized sensor is immune to



shiny objects: Triggers only when



correctly reflected light is detected



Weatherproof (IP55)



Anti-condensation housing

12-30V DC/AC 60Hz, 100mA



Caution:

 This sensor is not designed to prevent bodily injury or loss of life.

 This sensor is not designed for use in environments where explosive gasses may be present.

 Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM is not

responsible for compliance with such laws or codes.

E-931-S33PRGQ

Beam Sensor

Manual



Up to 33ft (10m) sensing range



Round reflector, Ø 3



Form C relay: 0.5A@30VAC/VDC



Beam status LED



N.C. Tamper switch:

500mA@30VAC/VDC

Conforms to UL 325

" (82mm)

Page 1  This sensor is not designed for use in environments where explosive gasses may be present.  Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM is not responsible for compliance with such laws or codes.
Page 2: Specifications
Wiring Diagram: 12-30V DC/AC Tamper Relay 60Hz, 100mA  Polarity does not matter for the power input. (Non-Polarity) N.C. N.O. COM N.C.  Connect the N.C. tamper terminal to the tamper circuit of an alarm control panel. SECO-LARM U.S.A., Inc.
Page 3 Alternating flash Poor beam signal sensor. No beam signal, 7. Re-attach the cover, replace the four screws, Solid red triggered and attach the hood to the top of the sensor. SECO-LARM U.S.A., Inc.
Page 4: Troubleshooting
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
