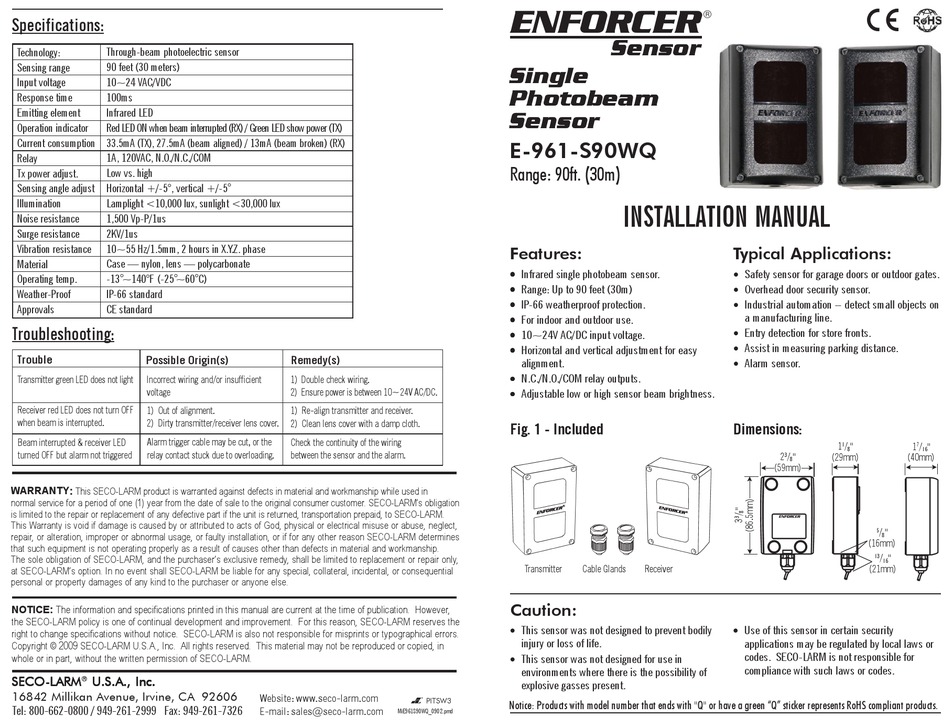

SECO-LARM ENFORCER E-961-S90WQ Installation Manual

Specifications:

Technology: Through-beam photoelectric sensor
Sensing range 90 feet (30 meters)
Input voltage 10~24 VAC/VDC
Response time 100ms
Emitting element Infrared LED
Operation indicator Red LED ON when beam interrupted (RX) / Green LED show power (TX)
Current consumption 33.5mA (TX), 27.5mA (beam aligned) / 13mA (beam broken) (RX)
Relay 1A, 120VAC, N.O./N.C./COM
Tx power adjust. Low vs. high
Horizontal +/-5 ° , vertical +/-5 °
Sensing angle adjust
Illumination Lamplight <10,000 lux, sunlight <30,000 lux
Noise resistance 1,500 Vp-P/1us
Surge resistance 2KV/1us
Vibration resistance 10~55 Hz/1.5mm, 2 hours in X.Y.Z. phase
Material Case — nylon, lens — polycarbonate
-13 ° ~140 ° F (-25 ° ~60 ° C)
Operating temp.
Weather-Proof IP-66 standard
Approvals CE standard

Troubleshooting:

Trouble
Possible Origin(s)
Transmitter green LED does not light
Incorrect wiring and/or insufficient
voltage
Receiver red LED does not turn OFF
1) Out of alignment.
when beam is interrupted. 2) Dirty transmitter/receiver lens cover.
Beam interrupted & receiver LED Alarm trigger cable may be cut, or the
turned OFF but alarm not triggered relay contact stuck due to overloading.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in
normal service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM's obligation
is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect,
repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines
that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to replacement or repair only,
at SECO-LARM's option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential
personal or property damages of any kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication. However,
the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the
right to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2009 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of SECO-LARM.
SECO-LARM SECO-LARM SECO-LARM SECO-LARM SECO-LARM U.S.A., Inc. U.S.A., Inc. U.S.A., Inc. U.S.A., Inc. U.S.A., Inc.
®
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
Remedy(s)
1) Double check wiring.
2) Ensure power is between 10~24V AC/DC.
1) Re-align transmitter and receiver.
2) Clean lens cover with a damp cloth.
Check the continuity of the wiring
between the sensor and the alarm.
Website: www.seco-larm.com
PITSW3
®
E-mail: sales@seco-larm.com
MiE961S90WQ_0902.pmd
ENFORCER
Sensor
Single
Photobeam
Sensor
E-961-S90WQ
Range: 90ft. (30m)

INSTALLATION MANUAL

Features:
• • • • • Infrared single photobeam sensor.
• • • • • Range: Up to 90 feet (30m)
• • • • • IP-66 weatherproof protection.
• • • • • For indoor and outdoor use.
• • • • • 10~24V AC/DC input voltage.
• • • • • Horizontal and vertical adjustment for easy
alignment.
• • • • • N.C./N.O./COM relay outputs.
• • • • • Adjustable low or high sensor beam brightness.
Fig. 1 - Included
Transmitter Cable Glands Receiver
Caution:
• This sensor was not designed to prevent bodily
injury or loss of life.
• This sensor was not designed for use in
environments where there is the possibility of
explosive gasses present.
Notice: Products with model number that ends with "Q" or have a green "Q" sticker represents RoHS compliant products.

Typical Applications:
• Safety sensor for garage doors or outdoor gates.
• Overhead door security sensor.
• Industrial automation -- detect small objects on
a manufacturing line.
• Entry detection for store fronts.
• Assist in measuring parking distance.
• Alarm sensor.
Dimensions:
1 1 / "
8
2 3 / " (29mm)
8
(59mm)
5 /
8
(16mm)
/
13
16
(21mm)
• Use of this sensor in certain security
applications may be regulated by local laws or
codes. SECO-LARM is not responsible for
compliance with such laws or codes.
1 7 / "
16
(40mm)
"
"
