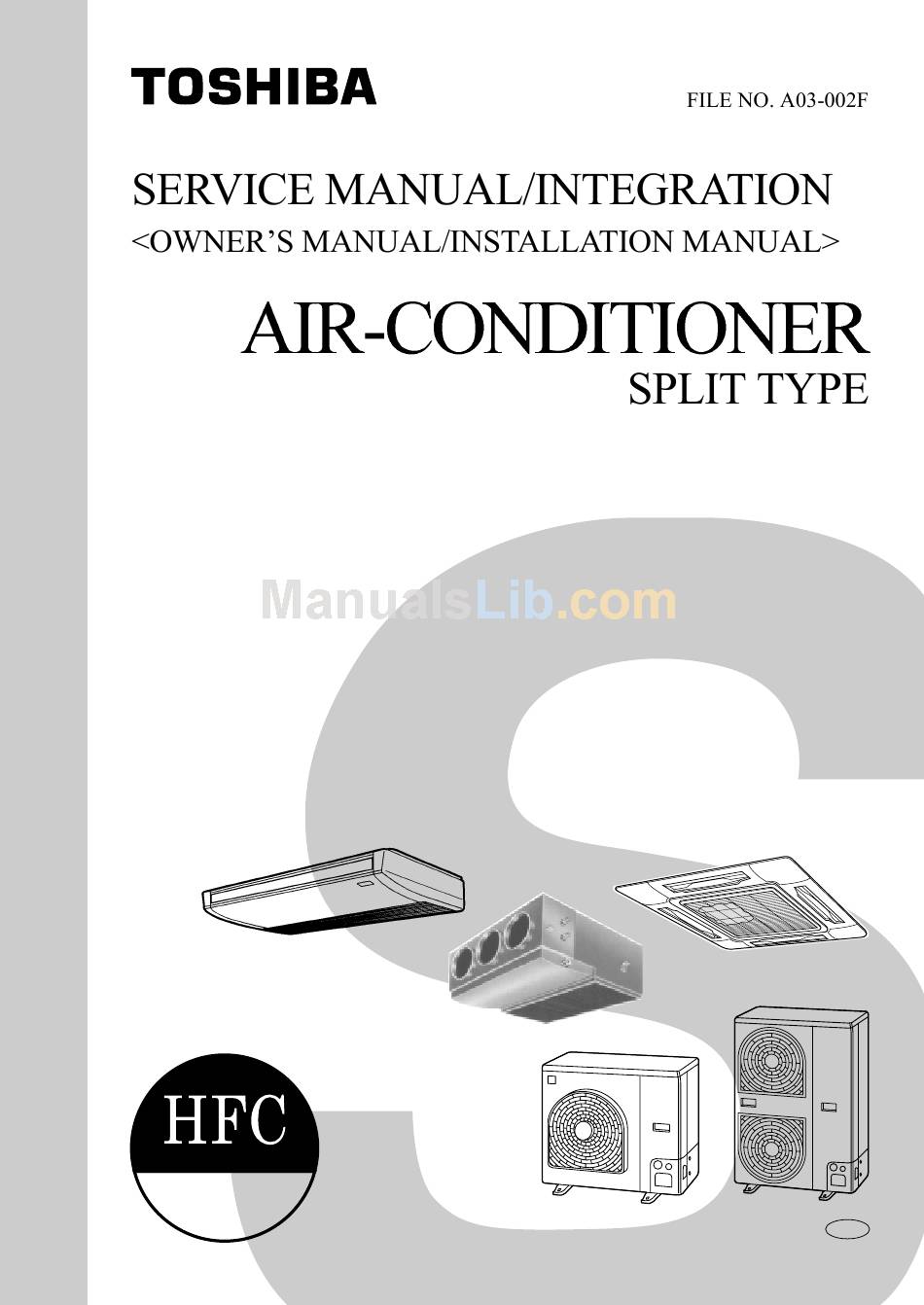

Toshiba R410A Service Manual

Toshiba air conditioner service manual
Hide thumbs Also See for R410A:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
OUTDOOR UNIT
<SUPER DIGITAL INVERTER>
RAV-SP560AT-E, RAV-SP800AT-E, RAV-SP1100AT-E, RAV-SP1400AT-E
<DIGITAL INVERTER>
RAV-SM560AT-E, RAV-SM800AT-E, RAV-SM1100AT-E, RAV-SM1400AT-E
INDOOR UNIT
<SUPER DIGITAL INVERTER>
RAV-SP1100UT-E
<DIGITAL INVERTER>
RAV-SM560UT-E, RAV-SM560BT-E, RAV-SM561BT-E, RAV-SM561CT-E,
RAV-SM800UT-E, RAV-SM800BT-E, RAV-SM801BT-E, RAV-SM801CT-E,
RAV-SM1100UT-E, RAV-SM1101CT-E, RAV-SM1101BT-E,
RAV-SM1400UT-E, RAV-SM1401CT-E, RAV-SM1401BT-E
R410A
PRINTED IN JAPAN, Jun.,2004 ToMo
