Spare part
20193454 Transmitter link

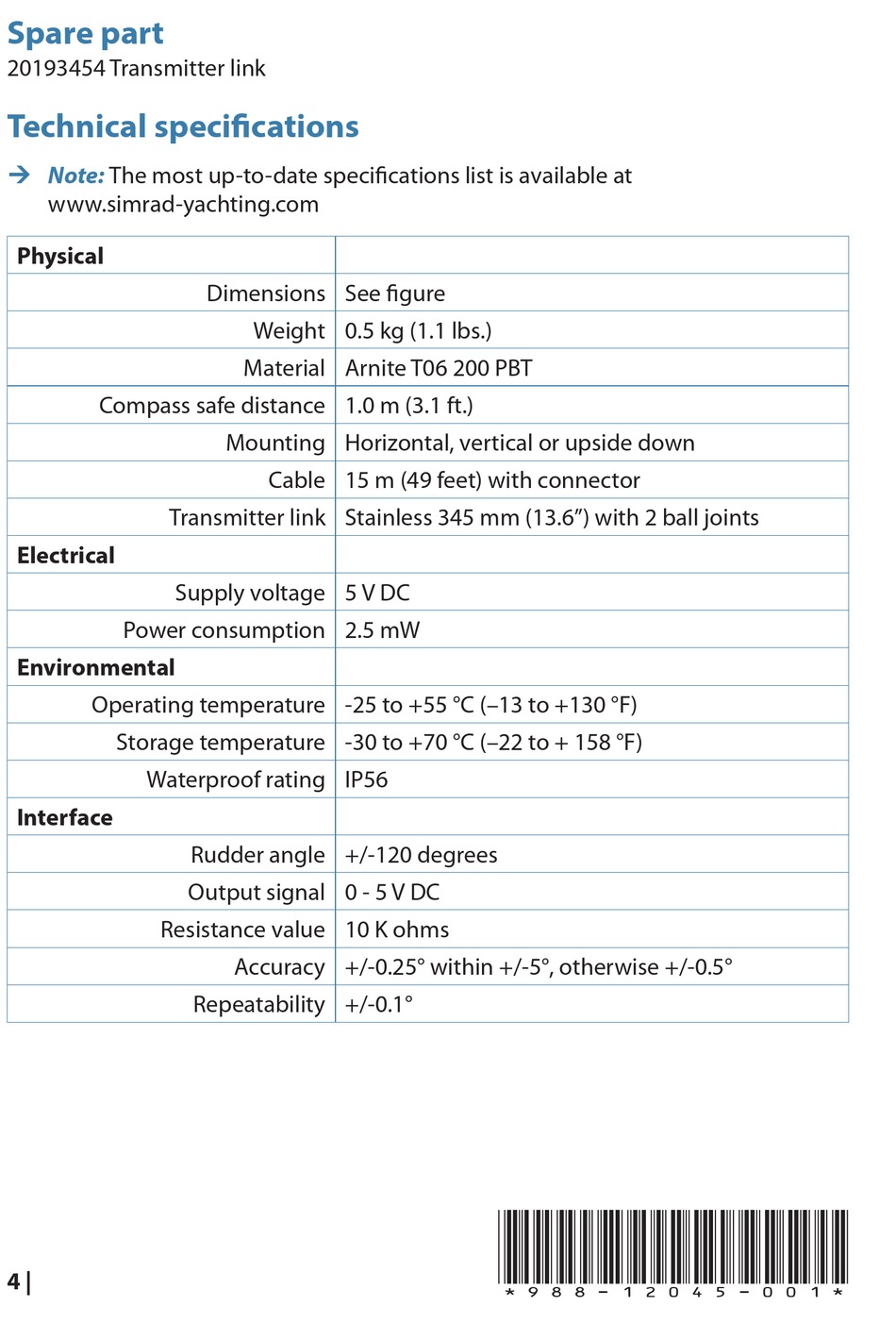

Technical specifications
¼ Note:
The most up-to-date specifications list is available at
www.simrad-yachting.com
Physical
Compass safe distance 1.0 m (3.1 ft.)
Transmitter link Stainless 345 mm (13.6") with 2 ball joints
Electrical
Power consumption 2.5 mW
Environmental
Operating temperature -25 to +55 °C (–13 to +130 °F)
Storage temperature -30 to +70 °C (–22 to + 158 °F)
Waterproof rating IP56
Interface
Resistance value 10 K ohms
4 |
Dimensions See figure
Weight 0.5 kg (1.1 lbs.)
Material Arnite T06 200 PBT
Mounting Horizontal, vertical or upside down
Cable 15 m (49 feet) with connector
Supply voltage 5 V DC
Rudder angle +/-120 degrees
Output signal 0 - 5 V DC
Accuracy +/-0.25° within +/-5°, otherwise +/-0.5°
Repeatability +/-0.1°
*988-12045-001*
