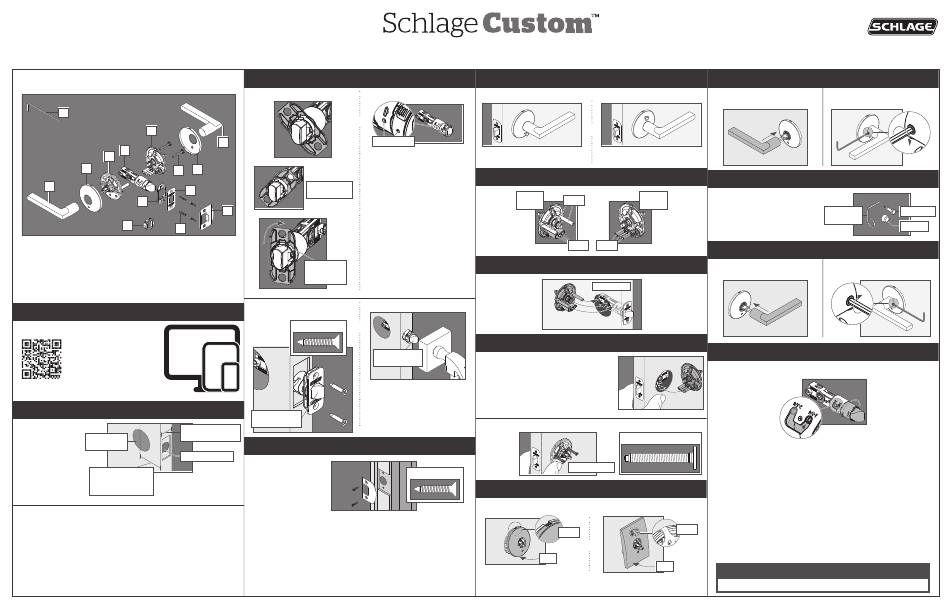

Schlage Custom FC21 Installation Instructions

*P518-149*
P518-149
Model FC21, Combined interior
L This lock can be installed as passage (hall/closet) or privacy (bed/bath).
See the included Privacy function kit.
l
e
d
c
b
f
a
h
g
i
j
a. Knob/Lever h. Faceplate
b. Trim i. Drive-in faceplate
c. Exterior chassis j. Latch/strike screws
d. Latch k. Strike
e. Interior chassis l. Hex wrench (Do not discard!)
f. Chassis screws
g. Backplate
1
Watch the installation video.
Go to Schlage.com/faqs-custom.
2
Check door dimensions.
2a If dimensions do
not match, you
2 1/8" (54 mm) (35 mm) - (44 mm)
may need to
hole
modify your door.
1" (25 mm) hole
For further assistance,
Backset
call Customer Service
2 3/8" or 2 3/4"
at (888) 805-9837.
(60 mm or 70 mm)
2b Check latch length.
Measure the backset as shown above.
2 3/8" (60 mm): no adjustment is necessary.
•
2 3/4" (70 mm): see the Adjust latch section.
•
3
Install the latch.
3a Install backplate. 3a
OR
a 

b
This backplate
is backward.
k
Rotate into
place. Notch
goes here.
3b Add faceplate and secure with 3b
screws.
Actual Size (2)
OR
Bevel must face
door frame!
1 3/8" - 1 3/4"
4
Install the strike onto the door frame.
Use included strike for
best performance.
5
PRIVACY FUNCTION ONLY: Choose privacy pin location.
Install drive-in faceplate. Location is based on preference and does not change the function.
Push to snap.
Pin on bottom, go on to step 6.
6
Identify the exterior and interior chassis
Exterior
Chassis
7
Install the exterior chassis.
Use wood block and hammer.
8
Install the interior chassis.
Bevel must face
8a Chassis is spring-loaded. Push pegs into
door frame!
slots and hold in place.
8b Secure with two (2) screws.
Make sure
chassis is
straight!
Actual Size (2)
9
Install the trim.
L Align hole in trim with hole in chassis.
click
Repeat for the other side of the door.
10
Install the exterior knob/lever.
10a Push knob/lever firmly into
place.
OR
Pin on top, go to
Schlage.com/faqs-custom.
11
PRIVACY FUNCTION ONLY: Install the privacy pin.
Follow the included
Interior
Posts
Privacy function kit instructions.
Chassis
Slots Pegs
12
Install the interior knob/lever.
12a Push knob/lever firmly into
place.
Push firmly!
Adjust latch
For 2 3/4" backset, rotate and pull latch out to long setting.
Actual Size (2)
Hold in place!
hook
hook
OR
click
Installation Instructions
10b Then tighten set screw.
Emergency Privacy pin
unlock tool
Pin cap
12b Then tighten set screw.
Customer Service
(888) 805-9837 www.schlage.com
