Cisco 7965 Reference Manual

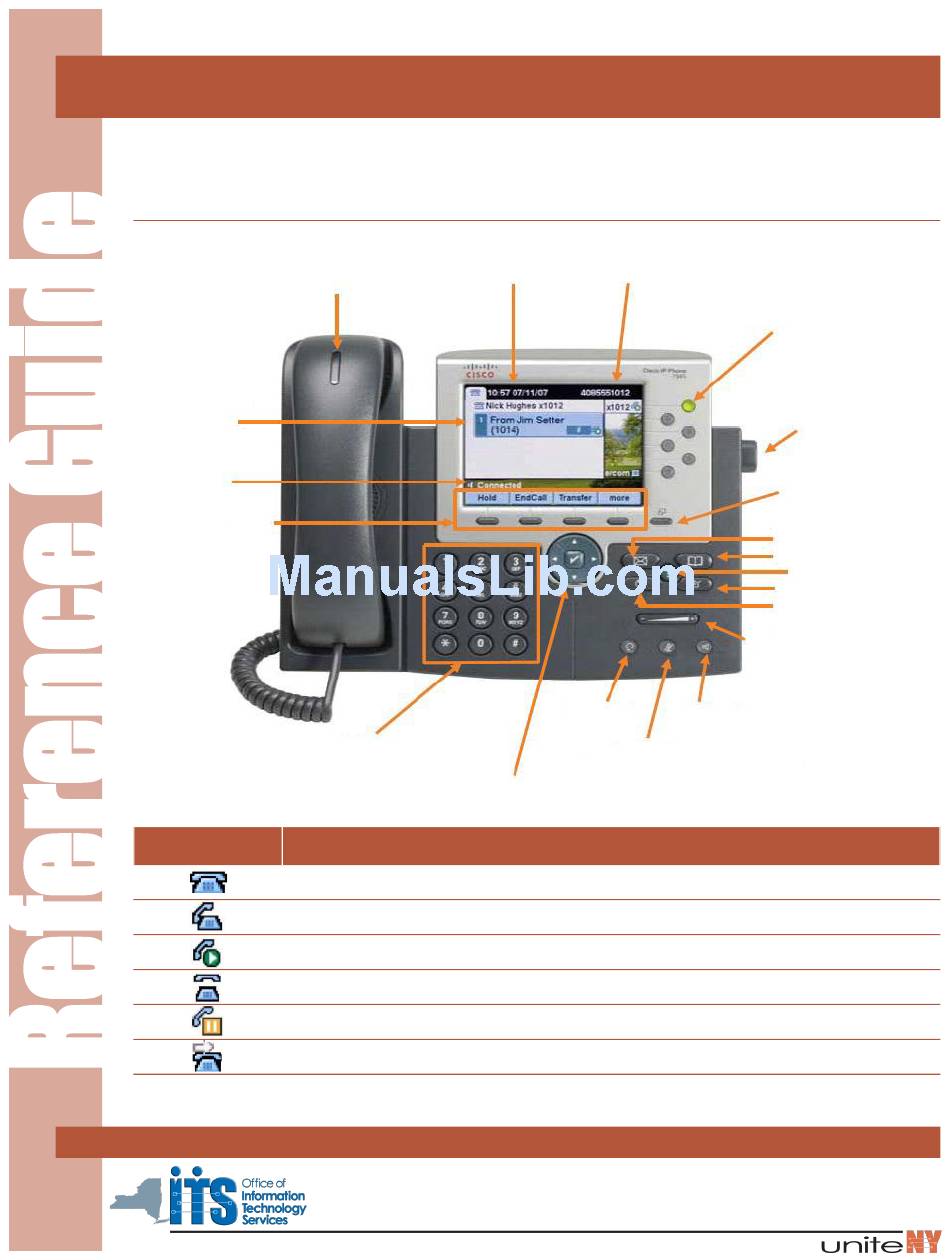

Overview of a Cisco Phone

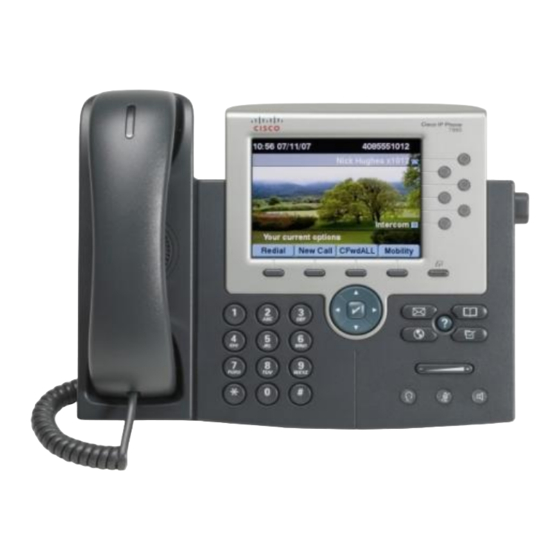

Model depicted is a 7965
Handset Light Strip
Indicates an incoming call or when
lit, a new voice mail message
Call Activity Area
Displays current
calls per line
and information
Status Line
Soft Keys
Last line of the display
(Soft Key labels)
correspond to Soft Key
buttons directly below
the display. Use buttons
to activate features.
Display Icon Description
Phone on-hook, no activity
Phone off-hook, making/receiving a call
Connected call
Incoming call, line is ringing
Call on-hold
Call Forward is enabled
Shared line in use. Someone who shares your line has a connected call.
