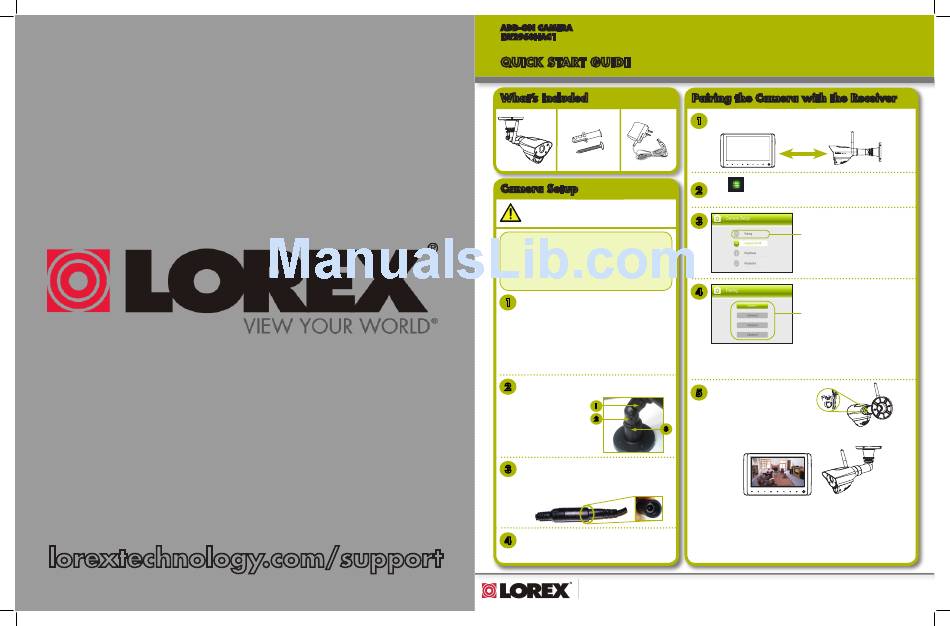

ADD-ON CAMERA
LW2960HAC1
QUICK START GUIDE
What's Included
x1 x3 x1
Camera Setup
Before installing camera(s), carefully plan where and
how it will be positioned, and where you will route the
cable that connects the camera to the power adapter.
Installation Tips
• Cameras are rated for indoor/outdoor installation, but are
not intended for direct exposure to rain or snow. For outdoor
applications, install under shelter protected from the elements.
• Wireless cameras require a power source to operate.
• Ensure power outlets are sheltered from the elements.
Use the included mounting screws to attach the
1
camera(s) to the mounting surface:
a. Mark the positions of the screw holes on the mounting surface.
b. Drill holes and insert the drywall anchors (included) as needed.
c. Firmly attach camera(s) to the surface using the included screws.
NOTE: If you run the power cable through the mounting
surface, connect power before attaching the camera to
the wall.
Loosen the thumbscrews (1, 2) and the adjustment
2
ring (3) by turning them counter clockwise.
1
Adjust the angle
of the camera(s) as
2
needed, then tighten
3
the thumbscrews and
the adjustment ring.
Connect one end of the camera's power adapter to
3
the camera and the other end to an electrical outlet.
Make sure the power connector is fully inserted to
avoid water getting in the plug.
Remove the protective film from the front of the
4
camera(s). If the film is not removed, it will block
the microphone and will affect picture quality.
www.lorextechnology.com
Pairing the Camera with the Receiver
Connect the new camera to a power outlet. Place the camera
1
within 1ft of the wireless receiver.
1ft
Press on the front panel of the wireless receiver, then select
2
Camera. Push the joystick to confirm.
3
Select Pairing.
4
Select the channel you wish to pair
the camera to.
NOTE: If you pair a new camera to a channel that is already being
used by an existing camera, the new camera will be connected to
that channel. The old camera will automatically be disconnected.
Following the on-screen prompt,
5
you have 30 seconds to press
the Pair button on the camera.
Once paired, the camera will be immediately displayed on-screen.
NOTE: If you do not press the Pair button on the camera during
the 30 second pairing window, repeat steps 2~5 to try the pairing
process again.
NOTE: If the speaker begins squealing, move the camera and
receiver away from each other.
LW2960HAC1_QSG_R1
