- Page 1 TECHNICAL MANUAL Ar 1224A LM LM LS LS LP LP Switching device Art. 1224A Passion.Technology. Design.
- Page 2 Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products.
-
Page 3: Technical Features

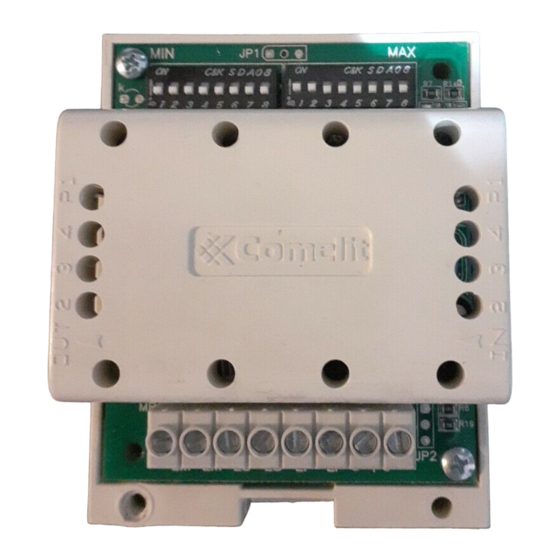

Switching device for audio or audio-video systems with 2 or more doors in SB1 systems and SBTOP audio/video systems. Complete with 2 dip-switches with 8 positions for setting the user range of the riser. 12V AC and 22V DC power supply. Ar 1224A LM LM LS LS LP LP 1. - Page 4 Connection VIDEO ENTRY SYSTEM RISER ⁓ ⁓ 1224A POWER SUPPLY SECONDARY BUS LINE MAIN BUS LINE...
-
Page 5: Operating Mode
CAUTION! Separate switching devices must manage code ranges which are not overlapping. Example coding of switching device Art. 1224A (staircase A 1 to 10 , staircase B 11 to 20) staircase RANGE 1÷10... - Page 6 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
