NETGEAR GS108LP Installation Manual

Installation Guide

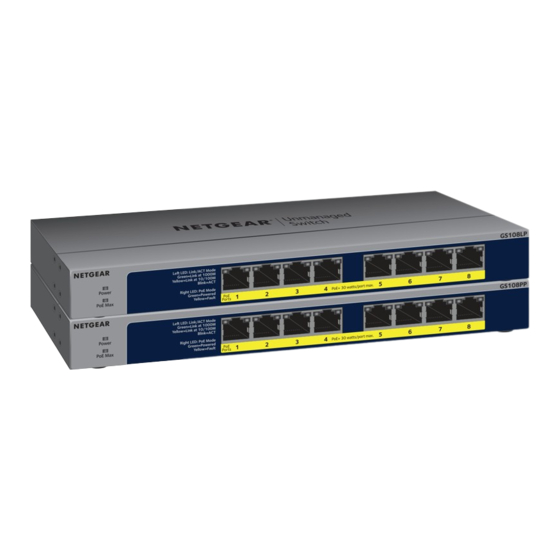

8-Port PoE/PoE+ Gigabit Unmanaged Switch
GS108LP and GS108PP
Package Contents
• Switch
• Power adapter
• Power cord (varies by region)
• Wall installation kit
• Rubber feet
• Rack-mount kit
• Installation guide
Step 1. Connect the equipment.
Router
GS108LP
switch
GS108LP
GS108PP
PoE+ security cameras
PoE+ access points

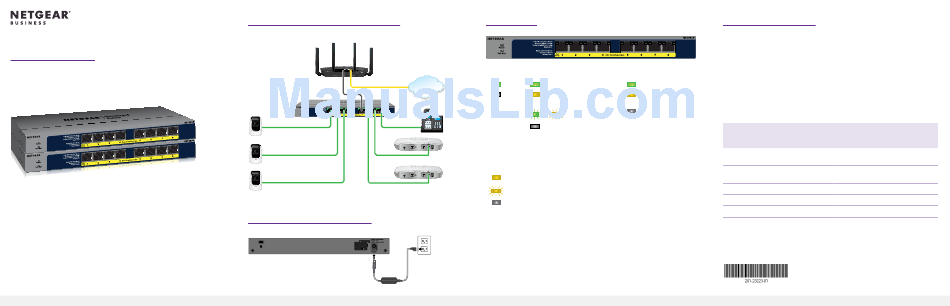

Sample connections
Step 2. Connect to power.
LED Status
Power LED Left Port LEDs
On
Internet
Off
PoE VoIP phone
PoE Max LED
The maximum PoE power that the switch can deliver to all attached powered devices
(PDs) is 120 watts total, with a maximum power to each port of 30 watts. (For more
PoE Considerations.)
information, see
The PoE Max LED indicates the status of the PoE power that the switch can deliver to
all attached PDs, as follows:
Solid amber. Less than 7W of PoE power is available on the switch.
Blinking amber. The PoE Max LED was lit solid in the previous two minutes.
Sufficient (more than 7W of) PoE power is available on the switch (the LED is
off).
PoE Considerations
The switch prioritizes the PoE and PoE+ power that it supplies in ascending port
order (from port 1 to port 8), with a total power budget of 120 watts. If the power
requirements for the attached powered devices (PDs) exceed the total power
budget of the switch, the PD on the highest-numbered port is disabled to make
sure that the PDs that are connected to the higher-priority, lower-numbered ports
are supported first.
Right PoE LEDs
Just because a PD is listed as an 802.3at PoE powered device does not
PoE in use
1000 Mbps link
necessarily mean that it requires the maximum power limit of the specification.
PoE Many PDs require less power, allowing all eight PoE ports to be active
100 or 10 Mbps link PoE halted (see
Troubleshooting) simultaneously.
No PoE use (off)
The following table describes the PoE classes and switch allocations.
Activity (blinking)
No link (off)
Device
Class
0
1
2
3
4
Standard Class Minimum Power Range of Power
Description Allocated to the Delivered to the
Powered Device Powered Device
PoE and PoE+ Default 0.44W 0.44W–12.95W
power (full)
PoE and PoE+ Very low 4.0W 0.44W–3.84W
power
PoE and PoE+ Low power 7.0W 3.84W–6.49W
PoE and PoE+ Mid power 15.4W 6.49W–12.95W
PoE+ only High power 30.0W 12.95W–25.5W
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA
April 2018
