Hanna Instruments Foodcare HI981036 Instruction Manual

Care and Maintenance
To obtain the highest accuracy for measurements it is important to follow these tips:
• Fresh buffer should be used for each calibration. Calibration is only as good as the
buffer being used. The pH buffer values change over time once the sachets are opened.
• The probe should be rinsed with purified water each time before placing in buffer or
sample to be tested.
• When the meter is not in use it is important to add several drops of storage solution to
the protective cap to keep the probe hydrated. If storage solution is not available, pH
4.01 or pH 7.01 buffer can be used.
• For improved accuracy it is recommended to calibrate in two buffers.
• It is important to calibrate and measure samples at the same temperature as there
is no temperature compensation. A dramatic change in temperature between buffer
solutions and samples to be tested will give inaccurate readings.
Refilling the Electrode
• If fouled, rinse the sleeve and sensor tip with purified water. Turn over the probe,
remove the sleeve by carefully rotating it and pull straight along the axis of the
electrode. Use care as the pH stem is
made of glass. Rinse off any traces of
electrolyte gel.
• Soak the sensor tip in HI700601P
or HI700630P cleaning solution for
20 minutes then rinse with purified water.
• Refill the reference well with HI9071
Gelled Bridge Electrolyte.
• Replace the reference sleeve: insert and
push the sleeve onto the electrode. Make
sure the black O-ring is fixed inside the
electrode body. Any excess of gel will be
expelled from the end of the electrode through the open junction.
• Rinse any excess gel off with purified water and gently dry off
body with a soft cloth or tissue.
• Soak assembled probe in Electrode storage solution for a
minimum of 30 minutes.
• Rinse probe with purified water.
• Shake the electrode down as you would do with a clinical
thermometer to eliminate any air bubbles inside the glass bulb.
• Calibrate in fresh buffers before using for measurements.
Warranty
The meter is warranted for a period of one year against defects in workmanship and materials when
used for their intended purpose and maintained according to instructions. This warranty is limited to
repair or replacement free of charge. Damage due to accidents, misuse, tampering or lack of prescribed
maintenance is not covered. If service is required, contact your local Hanna Instruments Office. If under
warranty, report the model number, date of purchase, serial number and the nature of the problem. If the
repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to
be returned to Hanna Instruments, first obtain a Returned Goods Authorization (RGA) number from the
Technical Service department and then send it with shipping costs prepaid. When shipping any instrument,
make sure it is properly packaged for complete protection.
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of
the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.
Auto-off
From measurement mode, press and hold the
ON/OFF button. The meter will cycle through
"OFF," "CAL," then current auto-off setting.
The default setting is 8 minutes ("d08"). Press
ON/OFF button to change. "d60" is auto-off after
60 minutes, and "d--" disables the auto-off
feature. Press and hold the button to exit the
menu.
Clear Calibration
Place meter in calibration mode. Press and hold
ON/OFF until "CLr" is displayed. The meter will
now be at default calibration.
"Err" Message
In calibration mode, if the meter displays an
"Err" message when in the correct fresh buffer
solution then the probe should be cleaned.
Place the probe in the HI700630
solution for 20 minutes. Rinse with purified water
and place in storage solution for a minimum of
30 minutes before calibrating.
Battery Indicator
The meter features a low battery indicator. When
the battery is running low, the tag will blink on
screen. When the battery has been depleted,
"Erb" will appear on screen and the meter will
turn off.
Recommendations for Users
Before using this product, make sure it is entirely suitable for your specific application and for the
environment in which it is used. Any variation introduced by the user to the supplied equipment may
degrade the meters' performance. For yours and the meter's safety do not use or store the meter in
hazardous environments.
Certification
All Hanna Instruments conform to the CE European Directives.
Disposal of Electrical & Electronic Equipment. The product should not be treated as household
waste. Instead hand it over to the appropriate collection point for the recycling of electrical and electronic
equipment which will conserve natural resources.
Disposal of waste batteries. This product contains batteries, do not dispose of them
with other household waste. Hand them over to the appropriate collection point for recycling.
Ensuring proper product and battery disposal prevents potential negative consequences for the
environment and human health. For more information, contact your city, your local household waste
disposal service, the place of purchase or go to www.hannainst.com.
Battery Replacement
To change the CR2032 Li-ion battery, turn the battery cover located on the back of the meter
counterclockwise to unlock. Remove cover and replace the battery with + side facing up.
Note: Batteries should only be replaced in a safe area using the battery
type specified in this instruction manual. Old batteries should be disposed in
accordance with local regulations.
Accessories
pH Buffer Solution
Code Description
HI70004P pH 4.01 buffer solution, 20 mL sachets (25 pcs.)
cleaning
HI70007P pH 7.01 buffer solution, 20 mL sachets (25 pcs.)
HI77400P pH 4.01 & 7.01 buffer solution, 20 mL sachets (10 pcs., 5 ea.)
Electrode Cleaning Solution
Code Description
HI700601P General purpose cleaning solution, 20 mL sachets (25 pcs.)
Meat, grease and fats acid cleaning solution, 20 mL sachets
HI700630P
(25 pcs.)
Electrode Storage Solution
Code Description
HI70300L Electrode storage solution, 500 mL bottle
HI70300M Electrode storage solution, 230 mL bottle
HI9072 Electrode storage solution, 13 mL dropper
Electrode Fill Solution
RoHS
Code Description
compliant
HI9071 Gelled Bridge Electrolyte
IST981036 06/18
INSTRUCTION MANUAL
HI981036

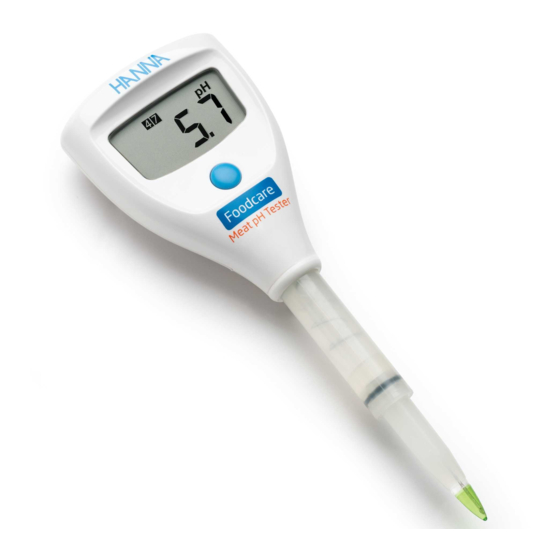

Meat pH Tester
