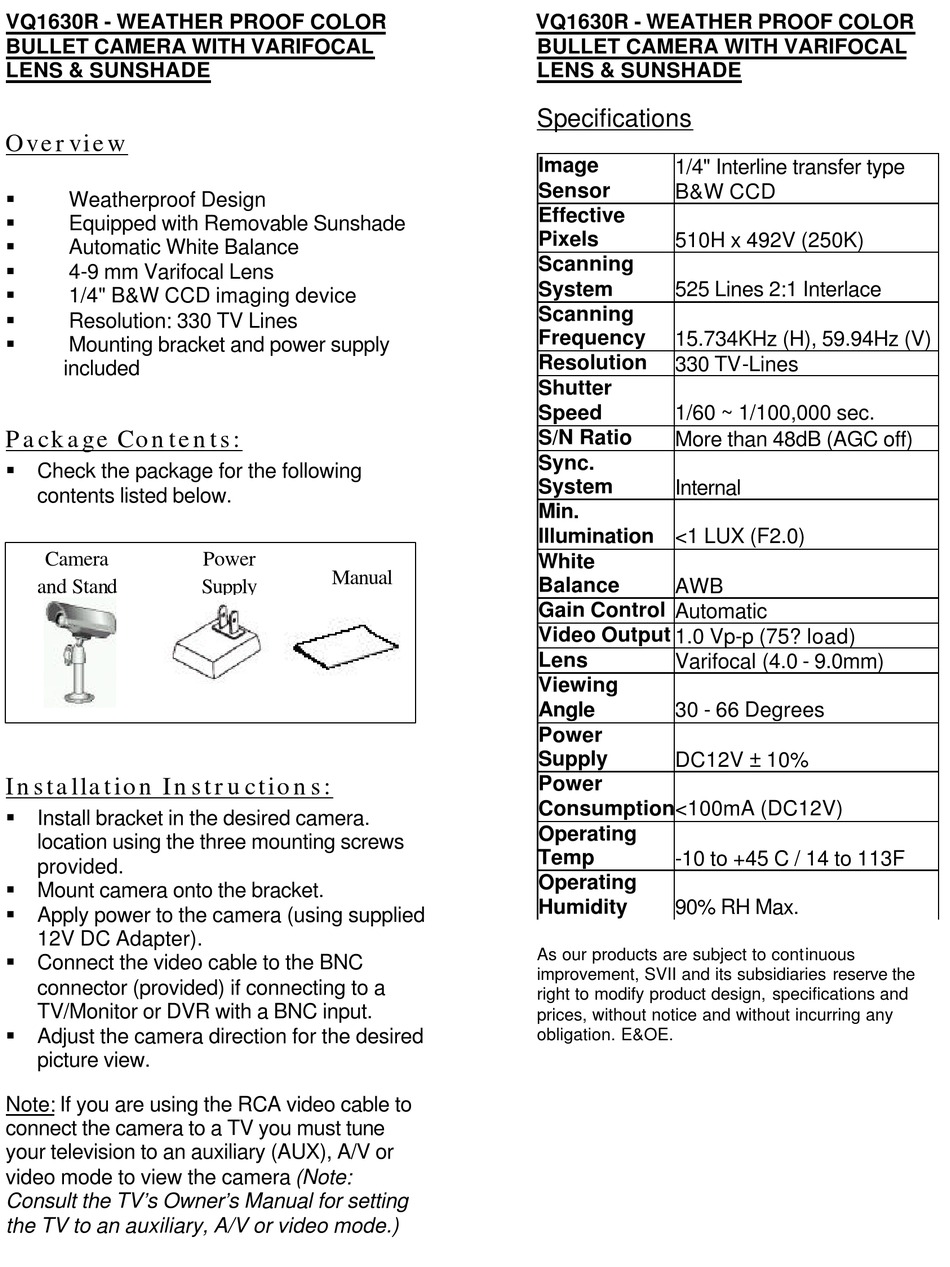

Lorex VQ1630R Installation Instructions

VQ1630R - WEATHER PROOF COLOR
BULLET CAMERA WITH VARIFOCAL
LENS & SUNSHADE
Overview
§
Weatherproof Design
§
Equipped with Removable Sunshade
§
Automatic White Balance
§
4-9 mm Varifocal Lens
§
1/4" B&W CCD imaging device
§
Resolution: 330 TV Lines
§
Mounting bracket and power supply
included

Package Contents:

§ Check the package for the following
contents listed below.
Camera
and Stand

Installation Instructions:

§ Install bracket in the desired camera.
location using the three mounting screws
provided.
§ Mount camera onto the bracket.
§ Apply power to the camera (using supplied
12V DC Adapter).
§ Connect the video cable to the BNC
connector (provided) if connecting to a
TV/Monitor or DVR with a BNC input.
§ Adjust the camera direction for the desired
picture view.
Note: If you are using the RCA video cable to
connect the camera to a TV you must tune
your television to an auxiliary (AUX), A/V or
video mode to view the camera (Note:
Consult the TV's Owner's Manual for setting
the TV to an auxiliary, A/V or video mode.)
Power
Manual
Supply
VQ1630R - WEATHER PROOF COLOR
BULLET CAMERA WITH VARIFOCAL
LENS & SUNSHADE

Specifications

1/4" Interline transfer type
Sensor
B&W CCD
Effective
Pixels
510H x 492V (250K)
Scanning
System 525 Lines 2:1 Interlace
Scanning
Frequency
15.734KHz (H), 59.94Hz (V)
Resolution
330 TV-Lines
Shutter
Speed 1/60 ~ 1/100,000 sec.
S/N Ratio
More than 48dB (AGC off)
Sync.
System
Internal
Min.
Illumination <1 LUX (F2.0)
White
Balance
AWB
Gain Control Automatic
Video Output 1.0 Vp-p (75? load)
Lens
Varifocal (4.0 - 9.0mm)
Viewing
Angle 30 - 66 Degrees
Power
Supply
DC12V ± 10%
Power
Consumption<100mA (DC12V)
Operating
Temp
-10 to +45 C / 14 to 113F
Operating
Humidity 90% RH Max.
As our products are subject to continuous
improvement, SVII and its subsidiaries reserve the
right to modify product design, specifications and
prices, without notice and without incurring any
obligation. E&OE.
