ENGLISH

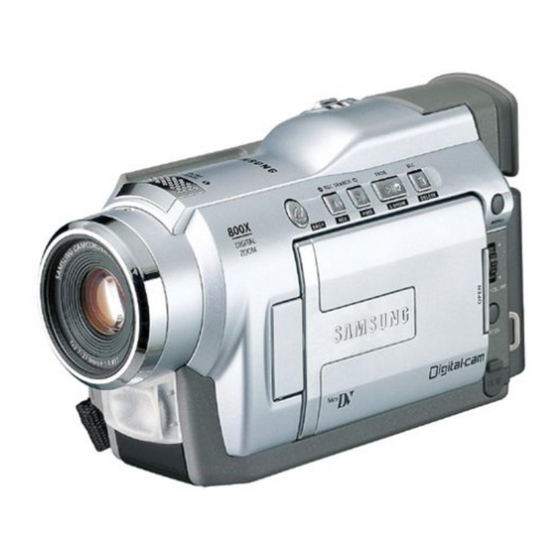

Digital Video Camcorder
SCD23/D24
AF
Auto Focus
CCD
Charge Coupled Device
LCD
Liquid Crystal Display
Owner's Instruction Book
Before operating the unit, please read this
instruction book thoroughly, and retain it for
future reference.
Videocámara digital
AF
CCD
LCD
Manual de instrucciones
Antes de emplear la cámara, lea
detenidamente este manual de instrucciones
ELECTRONICS
y consérvelo para consultas posteriores.
ESPAÑOL
SCD23/D24
Autofoco
Dispositivo acoplado por carga
Visualización en cristal líquido
AD68-00616D
