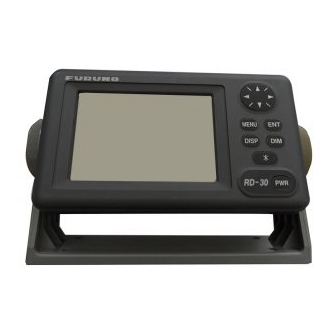

Furuno RD-30 Operator's Manual

RD-30 MULTI DISPLAY
The purpose of this Operator's Guide is to provide basic operating procedures for this
equipment. For more detailed information see the Operator's Manual.
FURUNO
7
1 Opens/closes the menu.
2 Shifts highlight cursor.
3 Registers menu options.
4 Adjust key backlighting; display contrast.
5 Turns power on/off.
6 Displays RX data.
7 Selects a display.
Turning the Power On/Off
Press the [PWR] switch.
Adjusting Panel Dimmer,

Display Contrast

1. Press the [DIM] key.
D I M M E R ( 1 ~ 8 )
▼
C O N T R A S T ( 0 ~ 6 3 )
2. Press up or down arrow to adjust panel
dimmer; left or right arrow to adjust
display contrast.
3. Press the [ENT] key to finish.

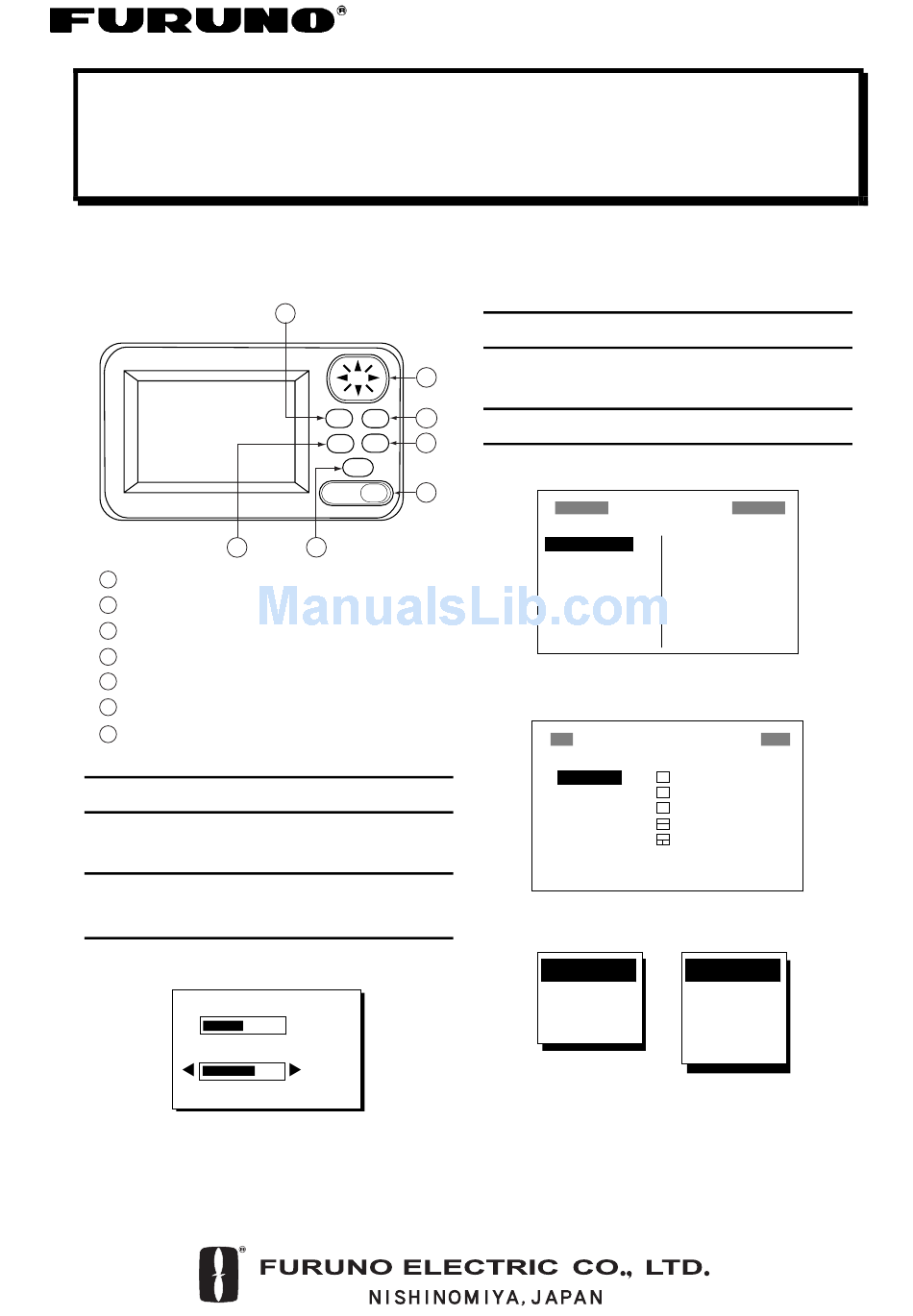

Operator's Guide
1
2
3
MENU ENT
4
DIM
DISP
*
5
RD-30 PWR
6
▲
4
4 5
E X I T : [ E N T ]
Choosing a Display
Press the [DISP] key.

Choosing Display Type

1. Press the [MENU] key once or twice.
MAIN MENU
USER DISP
ALARM1
ALARM2
MESSAGES
RESET
OFFSETS
2. Choose USER DISP and press the [ENT]
key.
USER DISPLAY SETUP
1: DIGITAL
2: DIGITAL
3: DIGITAL
4: DIGITAL
5: DIGITAL
3. Use the cursor pad to choose display
number and press the [ENT] key.
DIGITAL
GRAPH
GRAPHIC
HIGHWAY
#1 display
4. Choose display type desired and press
the [ENT] key.
5. Press the [MENU] key twice to close the
menu.
SYS SETUP
I/O SETUP
TD SETUP
LANGUAGE
UNITS
HDG SETUP
DIGITAL
GRAPH
GRAPHIC
HIGHWAY
OFF
#2-#5 displays
