Multimedia Projector
PLV-Z3000
MODEL
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PLV-Z3000

Summary of Contents for Sanyo PLV-Z3000

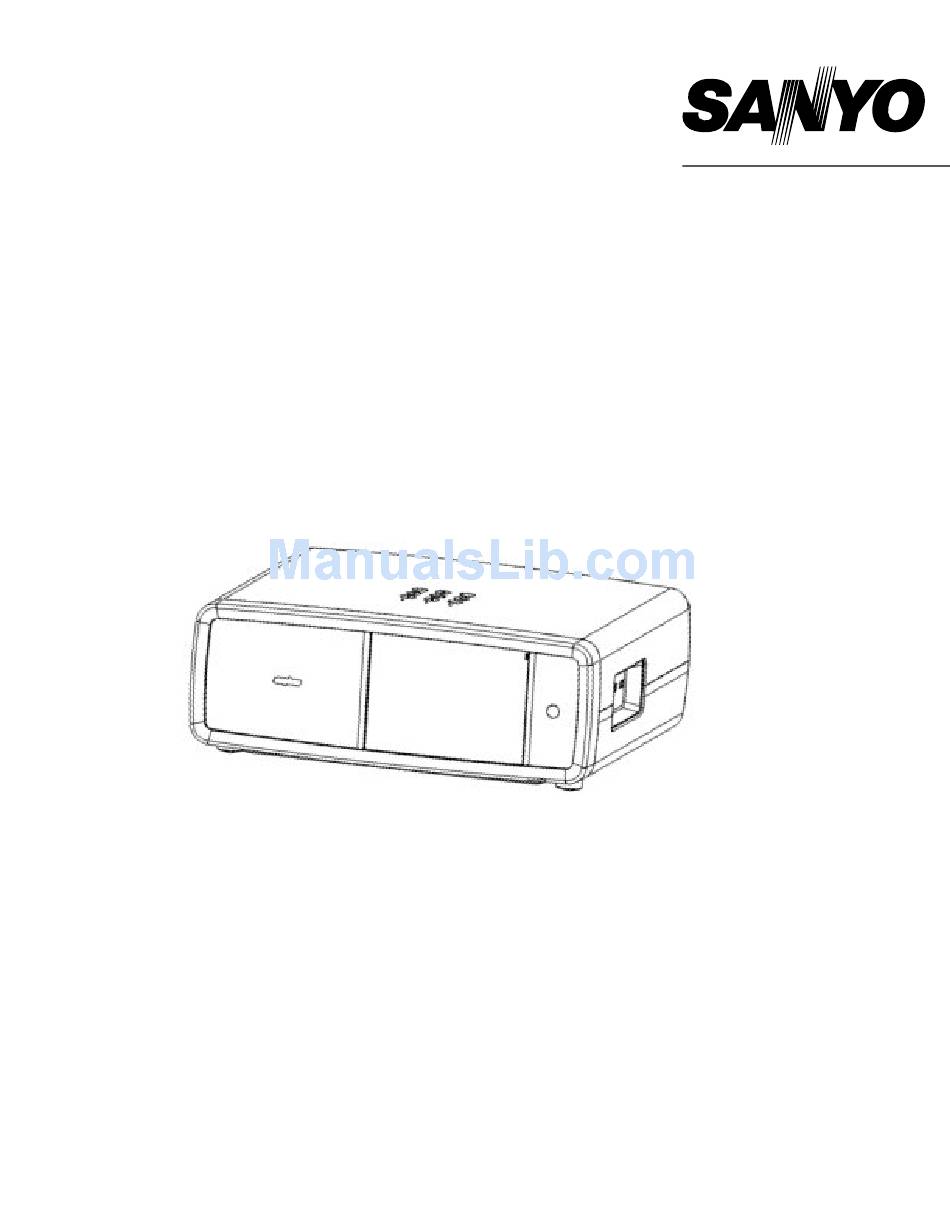

  • Page 1 Multimedia Projector PLV-Z3000 MODEL Owner’s Manual...

  • Page 2: Safety Precaution

    Your SANYO product is designed and DO NOT SET THE PROjECTOR IN GREASy, WET, manufactured with high quality materials...

  • Page 3: Safety Instructions

    Safety Instructions All the safety and operating instructions should be read before This projector should be operated only from the type of power the product is operated. source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or Read all of the instructions given here and retain them for local power company.

  • Page 4: Federal Communications Commission Notice

    : PL V-Z3000 Model Number(s) Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311 Telephone No. : (818)998-7322 AC Power Cord Requirement The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
  • Page 5 Safety Instructions Air Circulation Installing the Projector in Proper Position Openings in the cabinet are provided for ventilation. To Install the projector properly. Improper installation may reduce ensure reliable operation of the product and to protect it from the lamp life and cause fire hazard. overheating, these openings must not be blocked or covered. 20˚...

  • Page 6: Installation

    Installation Connecting the AC Power Cord This projector uses nominal input voltages of 100 – 120 V or 200 – 240 V AC and it automatically selects a correct input voltage. It is designed to work with the single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

  • Page 7: Part Names And Functions

    Part Names and Functions Rear Terminal S-VIDEO COMPONENT 1 SERVICEPORT HDMI 1 HDMI 2 COMPUTER COMPONENT 2 VIDEO Pb/Cb Pr/Cr q COMPUTER r SERVICE PORT Connect the computer output signal, or RGB Scart 21- This jack is used to service the projector. pin video output to this connector (p.17).

  • Page 8: Top Control

    Part Names and Functions Top Control t INPUT button q POWER indicator Lights red while the projector is in stand-by mode. Select an input source (p.24). – – Lights green during operations. – Blinks red during the cooling-off period. y POINT buttons ed7 8 –...

  • Page 9: Remote Control

    Part Names and Functions Remote Control q POWER ON/STAND-By button Turn the projector on or off (pp.18, 19). w RESET button Reset to the previous figure. This function is limited to when selecting the Image Adjustment (pp.28 – 33) and Picture Adjustment (p.34). e LIGHT button Light up the remote control buttons for about 10 seconds (p.22).

  • Page 10: Remote Control Operating Range

    Part Names and Functions Remote Control Operating Range Point the remote control toward the projector (Infrared Remote Receiver) when pressing any buttons. Maximum operating range for the remote control is about 16.4’ (5 m) and 60 degrees in front of the projector. 16.4’ (5 m) 30°...

  • Page 11: Connecting To Video Equipment (Video, S-Video)

    Installation This projector can be connected up to six equipment at one time. See the figures below for the connections. Connecting to Video Equipment (Video, S-Video) Video, S-video Video Equipment Use a video cable or a S-video cable (commercially available). Composite S-VIDEO Video Output Output Video Cable S-video (RCA x 1)

  • Page 12: Connecting To A Computer

    Installation Connecting to Video Equipment (HDMI, RGB Scart) HDMI RGB Scart Use a HDMI cable (optional) for HDMI output. Use a Scart-VGA cable (optional). Video Equipment Video Equipment HDMI Video RGB Scart Output 21-pin Output HDMI Scart-VGA Cable Cable COMPUTER HDMI Connecting to a Computer Computer (Analog) Computer Use a VGA cable (commercially available) or a DVI-VGA cable (commercially available).

  • Page 13: Maintenance And Cleaning

    Screws ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. PLV-Z3000 Model No. of your projector POA-LMP114 Replacement Lamp Type No. (Service Parts No. 610 336 5404)

  • Page 14: Resetting The Lamp Replacement Counter

    Maintenance and Cleaning Resetting the Lamp Replacement Counter Be sure to reset the lamp replacement counter after the lamp is replaced. When the lamp replacement counter is reset, the LAMP REPLACE indicator stops lighting. Turn the projector on and press the MENU button to display Lamp counter reset the On-Screen Menu.

  • Page 15: Technical Specifications

    Appendix Technical Specifications Projector Type Multimedia Projector Dimensions (W x H x D) 15.75” x 5.75” x 13.62” (400 mm x 146 mm x 346 mm) (not including raised portions) Net Weight 16.1 lbs (7 .3 kg ) LCD Panel System 0.74”...
