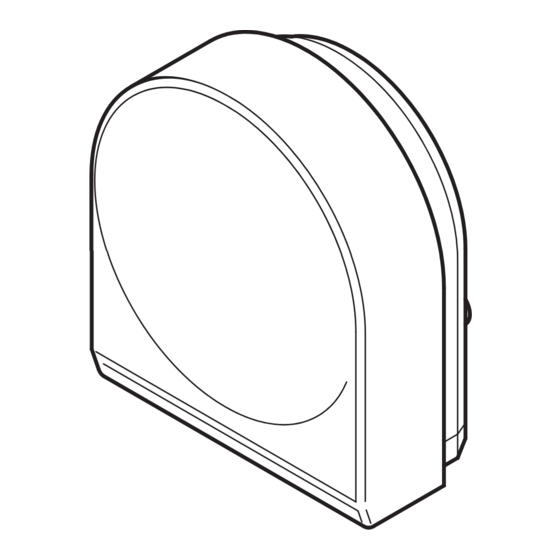

United Kingdom Multifit Part No. 7703233 Installation & Commissioning and User Instructions On Wall Outdoor Sensor Kit - Combi (QAC34) Suitable for Combination boilers ONLY These instructions should be read in conjunction with the Boiler Installation and Service Manual and left with the User when completed.
Potterton Promax Ultra Combi range Connecting the outdoor sensor BOILER GROUP ‘C’ & setting the curve boiler group ‘B’ Baxi EcoBlue + Combi & Advance Combi ranges BOILER GROUP ‘D’ Connecting the outdoor sensor Baxi 200 Combi range boiler group ‘C’...
It is recommended that the outdoor sensor is fitted and set prior to connecting any OpenTherm device. Consult the instructions supplied with such devices before setting the curve. The Baxi uSense device is recommended for this type of control application. Contents of Pack...
Outdoor Sensor Kit (QAC34) Fitting the Outdoor Sensor - All Models 1. The Sensor must be fixed to an external wall surface. 2. The Sensor should be positioned on a north to west facing wall (Figs. 1 & 2). NOTE: DO NOT position it on a south facing wall in direct sunlight ! 3.
Outdoor Sensor Kit (QAC34) Connecting the Sensor - boiler Group ‘A’ 1. Ensure that the electrical supply to the boiler is isolated. Undo the screws securing the facia and lift off the front panel. Allow the facia to drop down (Fig. 2.
Outdoor Sensor Kit (QAC34) Setting the Sensor Curve - boiler Group ‘A’ Reset NOTE: Depending upon model of boiler different types of Selector Switch and Central Heating Control Knob will be fitted (Figs. 11 & 12). Fig. 11 1. Ensure that there is power to the boiler (though it is not necessary for there to be any heating demand).
Outdoor Sensor Kit (QAC34) Connecting the Sensor & Setting the Curve - boiler Group ‘B’ M2 low voltage terminal strip Connecting (already fitted) 1. Ensure the electrical supply to the boiler is isolated. Undo the securing screws and lift the case front panel off.
Outdoor Sensor Kit (QAC34) Connecting the Outdoor Sensor - boiler Group ‘C’ Sensor Cable 1. Ensure that the electrical supply to the boiler is Connect to 4 & 5 isolated. Hinge down the control box and remove the boiler terminal block cover. 2.
P07 = 80°C If the Sensor is fitted to a boiler serving a low temperature system or underfloor heating please contact Baxi Customer Support for advice. P06 = 50°C IMPORTANT: Do not change any other parameters other than those described in these instructions otherwise the warranty of this kit and the boiler could be invalidated.
Outdoor Sensor Kit (QAC34) 11.0 Fault Finding - boiler Group ‘C’ No or poor CH performance or error code displayed Check outside sensor wiring for damage or short circuit. Error 10 displayed Otherwise replace Outdoor Sensor. If any other error code is displayed refer to appliance manuals for further details then continue with CH fault finding.
(as shown on the graph - Fig. 24) is displayed (Fig. 25). X1 MAINS NOTE: If a Baxi uSense smart thermostat is 0.5A connected to the boiler the slope must be set using the uSense App. The boiler display will not 230V - 50Hz show the slope but will still be active.
Consider the type of dwelling and discuss with the user their requirements to determine the most appropriate curve. NOTE: If a Baxi uSense smart thermostat is connected to the boiler the curve must be set using the uSense App. See the instructions supplied with the uSense.
Outdoor Sensor Kit (QAC34) 15.0 User Information NOTE: The Central Heating Temperature Control will NOT operate in the same way as described in the User Instructions supplied with the boiler ! 1. Your installation has been fitted with an Outdoor Sensor that acts as a Temperature Compensation Device.
Page 16
Baxi Customer Support 0344 871 1545 Baxi Brooks House, e&oe All descriptions and illustrations provided in this document have been Coventry Road, carefully prepared but we reserve the right to make changes and Warwick, CV34 4LL improvements in our products which may affect the accuracy of the information contained in this leaflet.
