One for All URC-3300 User Manual

Press CABLE, VCR, or TV
once to select a home
entertainment device
to control.
Use the keypad (0 ~ 9)
to directly select
3 DEVICES
channels (for example,
UNIVERSAL REMOTE CONTROL
09 or 31).
Press MUTE once to
turn sound off
or on.
Press PREV CH once to
recall the last-viewed
channel and to page
back one screen on the
main menu.
Press ENTER once
after entering channel
numbers on some TV
models.
Use MENU or EXIT to
choose options (or
exit) from your
selected device's
menu or guide.
Use VOL+ (or VOL-)
to raise (or lower) the
sound volume.
Use CH+ (or CH -) to
select the next higher
(or lower) channel.
USER'S GUIDE
Press SLEEP to activate
your device's sleep
timer (not available
for all devices).
INTRODUCTION
Use the transport keys
The One For All 3 Devices Universal
to control your VCR,
Remote Control is designed to operate
or CD. To record a
three home entertainment devices,
program, press the
depending on the model purchased (see
record key (
Key Charts, Mode Keys on the right).
twice.
The remote control requires four fresh
use TV/VID to switch
AAA alkaline batteries (not included) and
the TV's input to view
easy programming to control your devices.
TV or video program.
For best results, please read and perform
all instructions listed here.Also, keep
these instructions for future reference.
FEATURES AND FUNCTIONS

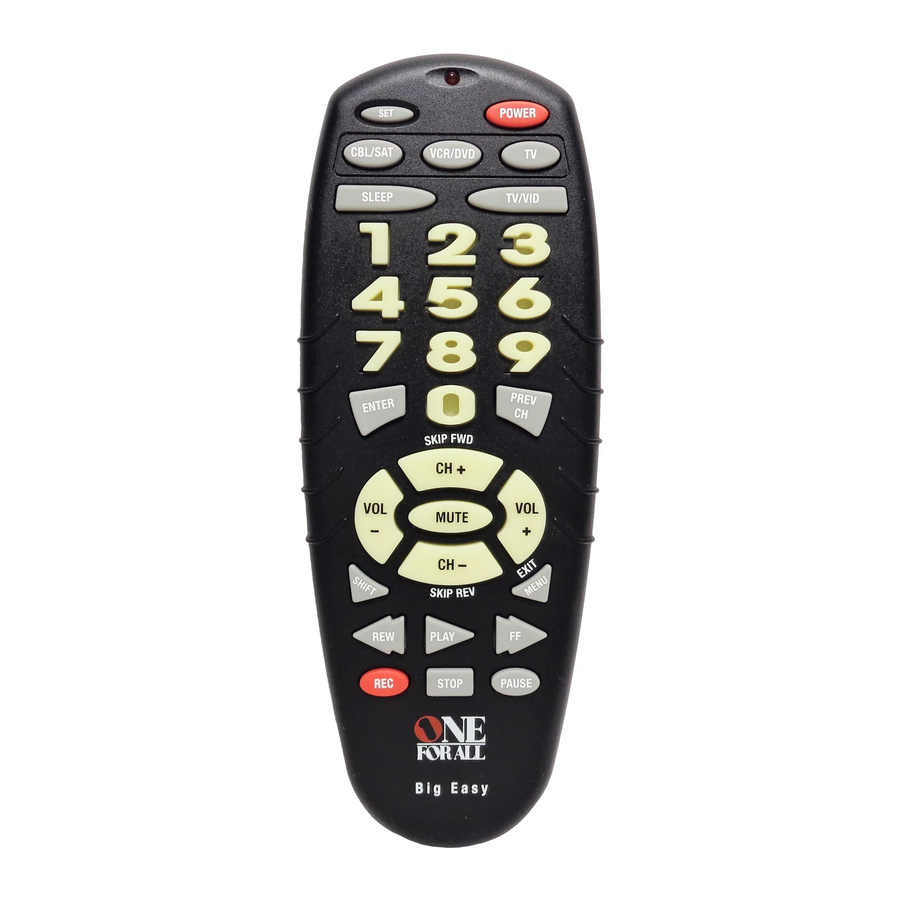

Use the Key Charts to learn how to use the
universal functions of the One For All 3
Devices Universal Remote Control.
Key Charts
Use SET for all
programming
sequences.
The LED (red light)
blinks to show that
the remote control is
working and is
sending signals.
Press POWER once to
turn on or off the
selected device.
Mode Keys for 3 Devices:
INSTALLING BATTERIES PROGRAMMING
TV/VCR COMBO CONTROL
1. On the remote control's back, push the
tab and lift off the battery cover.
Perform the following instructions to
control a TV/VCR Combo:
2. Obtain four (4) new AAA alkaline
batteries. Match the + and – marks
1. Turn on the TV/VCR Combo and
on the batteries to the + and –
insert a video cassette.
marks in the battery case, then insert
NOTE: Please read steps 2-4 completely
the new batteries.
before proceeding. Highlight or write down
the codes and device you wish to program
3. Press the battery cover back into
before moving on to step 2.
place. The tab should click when the
cover is locked.
2. On the remote control, press VCR.
Press and hold SET until the LED
4. Test the unit by pressing POWER
blinks twice, then release SET.
and any mode key (e.g., TV). If the
batteries are inserted correctly, the
3. Use the Setup Codes For TV/VCR
LED will blink once.
Combos (on the back side) to locate
the brand name and then enter the
NOTE: When batteries need replacement,
the remote control will stop operating. first four-digit code for your device.
Remove the old batteries and insert new
If performed correctly, the LED will
ones within 30 minutes to ensure all of
blink twice.
your programming information is restored.
NOTE: If the LED did not blink twice, then
repeat steps 2 through 3 and try entering
the same code again.
PROGRAMMING
4. Aim the remote control at the device
DEVICE CONTROL
and press POWER once. It should turn
The One For All 3 Devices remote con- off. If the device does not respond,
trol is preprogrammed at the factory to repeat steps 2-3, trying each code for
operate an RCA TV and VCR, a Motorola your brand until you find one that
(GI) cable box. To control devices other works. If it still does not work, try
than the default brands, perform the fol- Searching For Your Code.
lowing steps; otherwise skip this section:
NOTE: If the device does not have a
POWER key, press the ( PLAY ) key.
NOTE: For TV/VCR Combo control, see the
next section.
5. If you've located a TV/VCR setup
1. Turn on a device (e.g.,VCR) and, if code that works your TV/VCR
applicable, insert media, (e.g., Combo and a separate TV code is
cassette or disc). also listed, you'll need to program
this code into the remote control to
NOTE: Please read steps 2-4 completely
access volume control .
before proceeding. Highlight or write down
the codes and device you wish to program
before moving on to step 2.
SEARCHING FOR YOUR CODE
2. On the remote control, press a device
REC )
key once (i.e., VCR, TV, or CABLE ).
If your device does not respond to the
Press and hold SET until the LED
remote control after trying all codes
blinks twice, then release SET.
listed for your brand, or if your brand is
not listed at all, try searching for your
3. Use the Manufacturer's Codes to
code. For example, to search for a code
locate the type of device and brand
for your TV:
name and then enter the first four-
digit code for your component. If
1. On the remote control, press TV once.
performed correctly, the LED will
2. Press and hold SET until the LED
blink twice.
blinks twice, then release SET.
NOTE: If the LED did not blink twice, then
3. Enter 9 - 9 - 1. The LED will
repeat steps 2 through 3 and try entering
blink twice.
the same code again.
4. Aim the remote control at the device 4. Aim the remote control at the the
and press POWER once. The device TV and slowly alternate between
should turn off. If it does not respond, pressing POWER and TV. Stop when
repeat steps 2-3, trying each code for the TV turns off.
your brand until you find one that
NOTE: In the search mode, the remote
works. If it still does not work, try
control will send IR codes from its library
Searching For Your Code.
to the selected device, starting with the
most popular code first.
NOTE: If the device does not have a
POWER key, press the ( PLAY ) key.
5. To lock in the code, press and hold
SET until the LED blinks twice, then
5. Repeat steps 1 through 4 for each
release SET.
device you want to control.
6. To search for the codes of your other
devices, repeat steps 1 through 5, but
substitute the appropriate device key
for the device you are searching for.
CHECKING THE CODES At that time, you will need to program
the remote control for the new device
If you have set up the remote control
(see Programming Device Control).
using the Searching For Your Code
CHANGING VOLUME LOCK
procedure, you may need to find out
which four-digit code is operating your
The One For All 3 Devices is set to
equipment:
control the volume of your TV in the TV,
For example, to find out which code is VCR and CABLE modes. If you want the
operating your TV: volume to be controlled by a mode other
than TV (e.g., CABLE), change the
1. On the remote control, press TV once.
Volume Lock as follows:
2. Press and hold SET until the LED
To Change Volume Lock To
blinks twice, then release SET.
Another Mode:
3. Enter 9 - 9 - 0. The LED will
1. On the remote control, press and
blink twice.
hold SET until the LED blinks twice,
4. To view the code for the first digit,
then release SET.
press 1 once.Wait 3 seconds, count
2. Enter 9 - 9 - 3 and then press any
the LED blinks (e.g., 3 blinks = 3)
mode key once (except TV). The LED
and write down the number.
will blink twice.
NOTE: If a code digit is "0", the LED will
3. Now, whenever you press VOL+,
not blink.
VOL–, or MUTE, volume will be
5. Repeat step 4 three more times for
controlled by your mode choice.
remaining digits. Use 2 for the
Unlocking Volume Control:
second digit, 3 for the third digit,
and 4 for the fourth digit.
NOTE: Perform these instructions when you
want independent volume control for each
6. To check for codes of other devices,
programmed device (e.g., TV volume control
repeat steps 1 through 5, but substi-
in TV mode, CABLE volume control in CABLE
tute the appropriate device key for
mode, etc.)
each device you are checking.
1. On the remote control, press and
As before, write down each four-
hold SET until the LED blinks twice,
digit code.
then release SET.
2. Enter 9 - 9 - 3 and then press VOL+.
RE-ASSIGNING DEVICE KEYS
The LED will blink four times.
The One For All 3 Devices can be set to
3. Volume will again be controlled
control a second TV,VCR, or CABLE.
according to its default states.
For example, to control two TVs, a VCR,
and a cable box, you will need to re-
TROUBLESHOOTING
assign the unused VCR key to operate
the second TV as follows:
For assistance, please contact us in any
1. On the remote control, press and of the following ways:
hold SET until the LED blinks twice,
• Consumer Help Line: (330) 405-8612
then release SET.
• Internet: http://www.oneforall.com
2. Enter 9 - 9 - 2. The LED will
blink twice.
3. Press TV once, then press VCR once.
4. The VCR key is now ready to be PROBLEM: LED does not blink when
programmed for your second TV. you press a key.
See Programming Device Control.
SOLUTION: Replace batteries with
To re-assign other device keys, repeat four new AAA alkaline
steps 1 through 4 by substituting the key batteries.
sequence from the below chart for the
PROBLEM: LED blinks when you
most popular components:
press a key, but home
entertainment component
To Re-Assign Key
does not respond.
Sequence Perform
SOLUTION: Make sure the remote
VCR as 2nd TV key: SET - 9 - 9 - 2 -
control is aimed at your
TV - VCR
home entertainment
VCR as 2nd CBL key: SET - 9 - 9 - 2 -
device and is not farther
CABLE -
than 15 feet away.
VCR
PROBLEM: The unit does not control
home entertainment
VCR back to VCR: SET - 9 - 9 - 2 -
devices or commands are
VCR -
not working properly.
VCR
SOLUTION: Try all listed codes for the
When a re-assignment is done, the LED component brands being
will blink twice to confirm your choice. set up. Make sure they
can be operated with an MANUFACTURER'S CODES
infrared remote control.
Setup Codes for TVs:
PROBLEM: TV/VCR combo does not
AOC 0030, 0019, 0052
respond properly.
Admiral 0093, 0463
SOLUTION: Use the VCR codes for
Aiko 0092
your brand. Some combo Akai 0030
Alaron 0179
units may require both a
Ambassador 0177
TV code and a VCR code
America Action 0180
for full operation.
Ampro 0751
Anam 0180
PROBLEM: Changing channels does
Audiovox 0451, 0180, 0092, 0623
not work properly.
Baysonic 0180
SOLUTION: If original remote control Belcor 0019
Bell & Howell 0154
required pressing ENTER
Bradford 0180
to change channels, press
Brockwood 0019
ENTER on the remote
Broksonic 0236, 0463
control after entering the
CXC 0180
channel number.
Candle 0030, 0056
Carnivale 0030
PROBLEM: Tried "Search Method"
Carver 0054
and still could not find a
Celebrity 0000
working code.
Cineral 0451, 0092
Citizen 0060, 0030, 0056, 0039, 0092
SOLUTION: Clear the device key as
Concerto 0056
follows: Press and hold
Contec 0180
SET until the LED
Craig 0180
blinks twice, then release. Crosley 0054
Crown 0180, 0039
Next enter 9 - 9 - 2. Then
Curtis Mathes 0047, 0054, 0154, 0051, 0451, 0093,
press the device key to be
0060, 0030, 0145, 0056, 0039, 0166,
cleared twice. Now repeat
0466, 1147, 1347
the "Search Method. "
Daewoo 0451, 0019, 0039, 0092, 0623, 0624
Daytron 0019
PROBLEM: CH and CH do not
Denon 0145
work for your RCA TV.
Dumont 0017, 0019
Dwin 0720, 0774
SOLUTION: Due to RCA design (1983-
Electroband 0000
1987), only the original
Emerson 0154, 0236, 0463, 0180, 0178, 0019,
remote control will oper-
0179, 0039, 0177, 0623, 0624
ate these functions.
Envision 0030
Fisher 0154
PROBLEM: Remote control does not
Fujitsu 0179, 0683
turn on Sony or Sharp
Funai 0180, 0179, 0171
TV/VCR Combo. Futuretech 0180
GE 0047, 0051, 0451, 0093, 0178, 0135,
SOLUTION: For power on, these prod-
1147, 1347
ucts require programming Gibralter 0017, 0030, 0019
GoldStar 0030, 0178, 0019, 0056
TV codes. For Sony, use
Gradiente 0053, 0056
TV code 0000 and VCR
Grunpy 0180, 0179
code 0032. For Sharp, use
Hallmark 0178
TV code 0093 and VCR
Harley Davidson 0179
code 0048.
Harman/Kardon 0054
Harvard 0180
Hitachi 0145, 0056, 0151
Infinity 0054
Inteq 0017
JBL 0054
JCB 0000
JVC 0053
KEC 0180
KTV 0180, 0030, 0039
Kaypani 0052
Kenwood 0030, 0019
LG 0056
LXI 0047, 0054, 0154, 0156, 0178
Luxman 0056
MGA 0150, 0030, 0178, 0019
MTC 0060, 0030, 0019, 0056
Magnavox 0054, 0030, 0179, 1254
Marantz 0054, 0030
Matsushita 0250
Megatron 0178, 0145
Memorex 0154, 0250, 0463, 0150, 0178, 0056
Midland 0047, 0017, 0051, 0039, 0135
Mitsubishi 0093, 0150, 0178, 0019
Motorola 0093
Multitech 0180
NAD 0156, 0178, 0166
NEC 0030, 0019, 0056
NTC 0092
Nikko 0030, 0178, 0092
Onwa 0180
