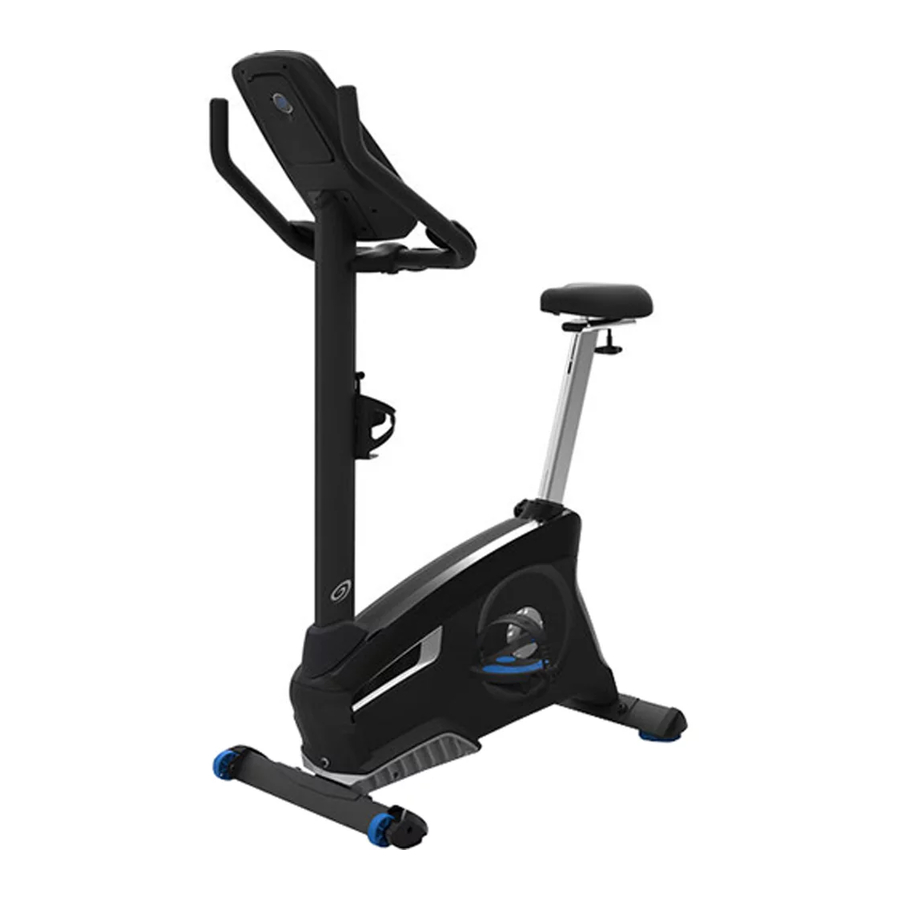

ASSEMBLY MANUAL / OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Nautilus U616

Summary of Contents for Nautilus U616

  • Page 1 ASSEMBLY MANUAL / OWNER’S MANUAL...

  • Page 2: Table Of Contents

    , Google Play™, Under Armour and MyFitnessPal are trademarks of their respective owners. The Bluetooth word ® ® ® ® mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Nautilus, Inc. is under license.

  • Page 3: Important Safety Instructions

    • If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the warranty.
  • Page 4 • Keep at least 24 0. m on each side of the machine clear. This is the recommended safe distance for access and passage around and emergency dismounts from the machine. Keep third parties out of this space when machine is in use. •...

  • Page 5: Safety Warning Labels / Serial Number

    SAFETY WARNING LABELS AND SERIAL NUMBER WARNING! • Injury or death is possible if caution is not used while using this machine. • Keep children and pets away. • Read and follow all warnings on this Serial number machine. • Refer to the Owner’s Manual for additional warnings and safety Product information.

  • Page 6: Specifications

    SPECIFICATIONS Maximum User Weight: 300 lbs. (13 kg) Machine Weight: 8. lbs. (31.1 kg) Power Requirements: Operational oltage 9 DC Operating Current 1.5A AC Power Adapter UL listed, Rated 100 240 50/ 0Hz Input, 9 DC, 1500mA Output. Class 2. 57.6”...

  • Page 7: Parts

    PARTS 13 (R) 12 (L) Item Qty Description Item Description Main Frame Seat Post Front Stabilizer Adjustment Knob Rear Stabilizer Seat Mast Boot Left Pedal (L) Console Mast (with Handlebar Mount) Right Pedal (R) Handlebar Mount Cover Water Bottle Holder Handlebars AC Adapter Console...

  • Page 8: Hardware

    HARDWARE / TOOLS Item Description Button Head He Screw M8 Lock Washer M8 Flat Washer M8 T handle Flat Washer, Narrow M8 Tools Included Not Included (recommended)

  • Page 9: Assembly

    ASSEMBLY 1. Attach Stabilizers to Main Frame Note: Hardware( ) is pre installed on the stabilizers and not on Hardware Card. Make sure transport wheels on the front stabilizer point forward. 6 mm 6 mm 2. Install Console Mast and Mast Boot on Main Assembly NOTICE: Make sure the Console Cable connector (a) does not fall into the Console Mast.
  • Page 10 3. Install Handlebars on Console Mast NOTICE: Do not crimp the cables. Put the Handlebar (7) in the bracket (5a), adjust the Handlebar to the desired angle, and install the T handle (D) through the holes. Use the pull cable in the Handlebar Mount to route the HR cable (7a) through the slot (5b) under the Handlebar Mount to the top of the mast.
  • Page 11 4. Install Console on Console Mast Note: Remove the pre installed screws( ) from the back of the Console before you connect the cables. If desired, apply the French Canadian overlay to the Console face. NOTICE: Do not crimp the cables.
  • Page 12 5. Install Seat Post on Frame NOTICE: Make sure the Adjustment Knob engages the Seat Post. Do not set the Seat Post position higher than the stop mark (STOP) on the tube. STOP 6. Attach Seat to Seat Post NOTICE: Be sure the Seat is straight. Tighten both nuts (11b) on the Seat bracket (11a) to hold the Seat in position.
  • Page 13 7. Install Pedals Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”. 13 (R) 12 (L)
  • Page 14 8. Install Water Bottle Holder Note: The hardware( ) is pre installed on the Console Mast and not on Hardware Card. 9. Connect AC Adapter 10. Final Inspection Inspect your machine to ensure that all hardware is tight and components are properly assembled. Be sure to record the serial number in the field provided at the front of this manual.

  • Page 15: Leveling The Bike

    BEFORE YOU START Leveling Your Bike Levelers are found on each side of the Rear Stabilizer. Turn the stabilizer foot to adjust. Make sure the bike is level and stable before you e ercise. Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or damage to the machine can occur.

  • Page 16: Eatures

    FEATURES Console Water Bottle Holder Handlebars with Elbow Pads MP3 Input Adjustable Seat USB Port Seat Slider Adjustment Knob Contact Heart Rate (CHR) Sensors Seat Post Adjustment Knob Speakers Pedals Stabilizers Media Tray Levelers Telemetry Heart Rate (HR) Receiver Fully Shrouded Flywheel Bluetooth Connectivity (not shown) ®...

  • Page 17: Console Features

    Console Features The Console provides important information about your workout and lets you control the resistance levels while you e ercise. The Console features the Nautilus Dual Track™ display with touch control buttons to navigate you through the e ercise programs.
  • Page 18 Resistance Level Quick Buttons Shifts the resistance levels to the setting quickly during a workout Achievement Indicator Lights when an achievement level is reached or a result is reviewed, the achievement indicator light will activate Nautilus Dual Track™ Display Upper Display Data Program Display...
  • Page 19 Achievement Display The Achievement Display activates when a workout goal is reached or a workout milestone is surpassed from past workouts. The Console display will congratulate and inform the User of their achievement, along with a celebratory sound. Lower Display Data The Lower Display shows the Workout alues and can be customized for each User (Consult the “Edit User Pro le”...

  • Page 20: Bluetooth ® Connectivity

    Connected Fitness to make hitting your daily calorie goal easier than ever! Track ® ® your results and share with friends and family. Download the free Software App, named Nautilus Trainer™. The software app is available on iTunes and Google ® Play™.

  • Page 21: Remote Heart Rate Monitor

    Remote Heart Rate Monitor Monitoring your Heart Rate is one of the best procedures to control the intensity of your e ercise. Contact Heart Rate (CHR) sensors are installed to send your heart rate signals to the Console. The Console can also read telemetry HR signals from a Heart Rate Chest Strap Transmitter that operates in the 4.5kHz 5.5kHz range.
  • Page 22 The graph is a brief guideline, describing the generally suggested target heart rates based on age. As noted above, your optimal target rate may be higher or lower. Consult your physician for your individual target heart rate zone. Note: As with all e ercises and tness regimens, always use your best judgment when you increase your e ercise time or intensity.

  • Page 23: Operations

    OPERATIONS What to Wear Wear rubber soled athletic shoes. ou will need the appropriate clothes for e ercise that allow you to move freely. How Often Should You Exercise Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint.

  • Page 24: Initial Setup

    Initial Setup During the rst power up, the Console should be setup with the date, time and your preferred measurement units. Date Push the Increase/Decrease buttons to adjust the currently active value ( ashing). Push the Left/Right buttons to change which segment is the currently active value (month / day / year). Push OK to set.
  • Page 25 User Pro les are assigned the default values until they are customized by editing. Be sure to edit the User Pro le for more accurate calorie and heart rate information. From the Power Up Mode screen, push the User button to select one of the User Pro les. The Console will display the name of the User Pro le and the User Pro le Icon.
  • Page 26 Reset a User Profile 1. From the Power Up Mode screen, push the User button to select one of the User Pro les. 2. Push the OK button to select it. 3. The Console display shows the current User Profile name and the EDIT prompt. Push the Increase( ) or Decrease( ) buttons to change the prompt.
  • Page 27 CHALLENGES Uphill Finish Cross Training Interval Stairs The Console lets you select the Pro le Program and type of Goal for your workout (Distance, Time or Calories), and set the Goal value. 1. Sit on the machine. 2. Push the User button to select the correct User pro le. 3.
  • Page 28 Recovery Test Program Recovery Test shows how quickly your heart recovers from an e ercise state to a more restful state. Improved recovery is an indicator of increasing tness. Note: The Console must be able to read the heart rate information from the Contact Heart Rate (CHR) sensors or Heart Rate Monitor (HRM) to work correctly.

  • Page 29: Pausing Or Stopping

    4. Push the Increase( ) or Decrease( ) buttons to set the value for the workout. 5. Push OK to start the workout. Custom Program The Custom Program lets you set the resistance level for each interval and select type of Goal (Distance, Time or Calo ries) to create a personalized workout.

  • Page 30: Goal Track Statistics

    GOAL TRACK Statistics (and Achievements) The statistics from every workout are recorded to a User Pro le. The Nautilus Dual Track™ Console shows the Goal Track workout Statistics on the Lower Display in three channels TIME (total), DISTANCE (total), and CALORIES (total)

  • Page 31: Console Setup Mode

    CONSOLE SETUP MODE Contact your doctor for more information about Body Mass Index (BMI) and the weight that is appropriate for you. Use the values calculated or measured by the machine’s computer for reference purposes only. Push the Increase( ) button to move to the “SA E TO USB OK ” prompt. Push OK and the “ARE YOU SURE NO”...

  • Page 32: Maintenance

    Worn or damaged components must be repaired or replaced immediately. Only manufacturer supplied components can be used to maintain and repair the equipment. If at any time the Warning labels become loose, unreadable or dislodged, contact Nautilus Customer Service for replacement labels.

  • Page 33: Maintenance Parts

    Maintenance Parts Console HR Cable Flywheel Console Mast CHR Sensors Brake Assembly Pedals Seat RPM Sensor Crank Arms Seat Post w/ Slider Speed Sensor Magnet (8) Left Shroud Adjustment Knob Servo Motor Power Inlet AC Adapter Drive Belt Right Shroud Water Bottle Holder Drive Pulley Top Shroud...

  • Page 34: Troubleshooting

    TROUBLESHOOTING Condition/Problem Things to Check Solution No display/partial display/ Check electrical (wall) Make sure unit is plugged into a functioning wall outlet. unit will not turn on outlet Check connection at front Connection should be secure and undamaged. Replace of unit adapter or connection at unit if either are damaged.
  • Page 35 Condition/Problem Things to Check Solution Resistance does not Batteries (if equipped) Replace batteries and check for proper operation. change (machine turns on and operates) Check Console Check for visual sign that Console is damaged. Replace Con sole if damaged. Check data cable integrity All wires in cable should be intact.
  • Page 36 Review Speci cations of Fitness App and con rm your device is compatible. Contact appsupport@nautilus.com for further assistance. Workout results not post Sync accounts From the Menu icon on the Nautilus Trainer™ App, select the ing from Nautilus Train Sync to MyFitnessPal or Under Armour Connected Fitness.

  • Page 37: Warranty

    How Nautilus Will Support the Warranty Throughout the terms of the warranty coverage, Nautilus, Inc. will repair any machine that proves to be defective in materials or workmanship. Nautilus reserves the right to replace the product in the event a repair is not possible. When Nautilus determines replacement is the correct remedy, Nautilus may apply a limited credit reimbursement toward another Nautilus Inc. brand Product, at our discretion.
  • Page 38 Nautilus Bow e Schwinn Universal ® ® ® ® 8014381.080118.B...
