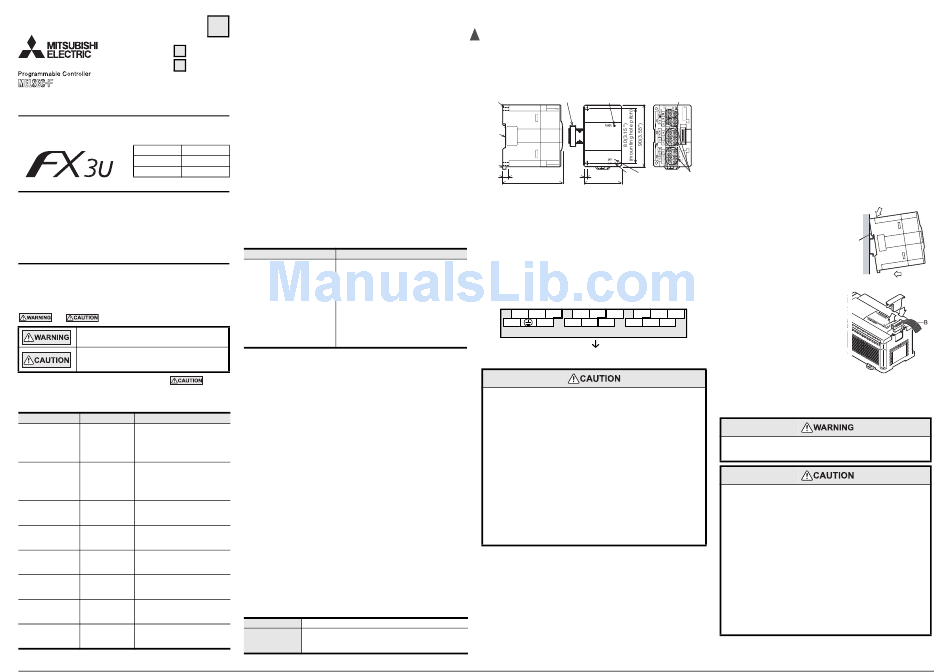

Mitsubishi Electric FX3U-4AD Installation Manual

JY997D20701G
Side
JAPANESE
A
Side
ENGLISH
B
FX -4AD
3U
INSTALLATION MANUAL
Manual Number JY997D20701
Revision G
Date May 2018
This manual describes the part names, dimensions, mounting, and specifications
of the product. Before use, read this manual and the manuals of all relevant
products fully to acquire proficiency in handling and operating the product. Make
sure to learn all the product information, safety information, and precautions.
Store this manual in a safe place so that it can be taken out and read whenever
necessary. Always forward it to the end user.
Registration:
Phillips is a registered trademark of Phillips Screw Company.
The company and product names described in this manual are registered
trademarks or the trademarks of their respective companies.
Effective May 2018
Specifications are subject to change without notice.
©
2006 MITSUBISHI ELECTRIC CORPORATION
Safety Precautions
(Read these precautions before use.)
This manual classifies the safety precautions into two categories:
and .
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
Depending on the circumstances, procedures indicated by
cause severe injury.
It is important to follow all precautions for personal safety.
Associated Manuals
Manual name Manual No. Description
FX /FX /FX /
3S 3G 3GC
Describes specifications for analog
FX /FX Series JY997D16701
3U 3UC
control and programming method
User's Manual MODEL CODE:
for FX /FX /FX /FX
3S 3G 3GC
- Analog Control 09R619
FX 3UC Series PLC.
Edition
FX 3S /FX 3G /FX 3GC /
FX 3U /FX 3UC Series JY997D16601 Describes PLC programming for
Programming Manual MODEL CODE: basic/applied instructions and
devices.
- B a s i c & A p p l i e d 09R517
Instruction Edition
FX Series JY997D31301 Explains the FX Series PLC
3G 3G
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R521 installation, and maintenance.
FX Series JY997D45401 Explains the FX Series PLC
3GC 3GC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R533 installation, and maintenance.
FX 3U Series JY997D16501 Explains the FX 3U Series PLC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R516 installation, and maintenance.
FX Series JY997D28701 Explains the FX Series PLC
3UC 3UC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R519 installation, and maintenance.
MELSEC iQ-F FX5U JY997D55301 Explains the FX5U PLC
User's Manual MODEL CODE: specifications for I/O, wiring,
(Hardware) 09R536 installation, and maintenance.
MELSEC iQ-F FX5UC JY997D61401 Explains the FX5UC PLC
User's Manual MODEL CODE: specifications for I/O, wiring,
(Hardware) 09R558 installation, and maintenance.
Side
B
How to obtain manuals
For product manuals or documents, consult with the Mitsubishi Electric dealer from
who you purchased your product.
Certification of UL, cUL standards
The following product has UL and cUL certification.
UL, cUL File Number:E95239
Models: MELSEC FX 3U series manufactured
FX - 4AD
3U
Compliance with EC directive (CE Marking)
This note does not guarantee that an entire mechanical module produced in
accordance with the contents of this note will comply with the following standards.
Compliance to EMC directive and LVD directive for the entire mechanical module
should be checked by the user / manufacturer. For more details please contact the
local Mitsubishi Electric sales site.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct testing (of the identified
standards below) and design analysis (through the creation of a technical construction
file) to the European Directive for Electromagnetic Compatibility (2014/30/EU) when
used as directed by the appropriate documentation.
Attention
This product is designed for use in industrial applications.
Type: Programmable Controller (Open Type Equipment)
Models: MELSEC FX 3U series manufactured
from February 1st, 2006 FX 3U -4AD
Standard
EN61131-2:2007 Compliance with all relevant aspects of the
Programmable controllers standard.
- Equipment requirements and EMI
tests • Radiated Emission
• Conducted Emission
EMS
• Radiated electromagnetic field
• Fast transient burst
• Electrostatic discharge
• High-energy surge
• Voltage drops and interruptions
• Conducted RF
• Power frequency magnetic field
Caution for EC Directive
The FX -4AD have been found to be compliant to the European standards in
3U
the aforesaid manual and directive. However, for the very best performance
from what are in fact delicate measuring and controlled output device Mitsubishi
Electric would like to make the following points;
may also
As analog devices are sensitive by nature, their use should be considered care-
fully. For users of proprietary cables (integral with sensors or actuators), these
users should follow those manufacturers installation requirements.
Mitsubishi Electric recommend that shielded cables should be used. If NO other
EMC protection is provided, then users may experience temporary loss or
accuracy between ±10% in very heavy industrial areas.
However, Mitsubishi Electric suggest that if adequate EMC precautions are fol-
lowed for the users complete control system, users should expect accuracy as
specified in this manual.
/
3U • Sensitive analog cable should not be laid in the same trunking or cable
conduit as high voltage cabling. Where possible users should run analog
cables separately.
• Good cable shielding should be used. Ground the shield of the twisted
shielded cable at one point on the PLC side.
• When reading analog values, EMC accuracy can be improved out by
averaging the readings. This can be achieved either through functions on the
special function block for analog input or through a users program in the
FX Series PLC main unit.
3U
• Please use FX
-4AD while installed in a shielded enclosure. For the details,
3U
refer to the following manual.
→ Refer to the FX Series User's Manual - Hardware Edition
3G
→ Refer to the FX
3GC Series User's Manual - Hardware Edition
→ Refer to the FX Series User's Manual - Hardware Edition
3U
→ Refer to the FX
3UC Series User's Manual - Hardware Edition
→ Refer to the MELSEC iQ-F FX5U User's Manual (Hardware)
→ Refer to the MELSEC iQ-F FX5UC User's Manual (Hardware)
Note for compliance with EN61131-2:2007
General note on the use of the power supply cable.
The FX -4AD unit requires that the cable used for power supply is 30m or less.
3U
1. Outline
The FX 3U -4AD special function block for analog input converts four analog input values
(voltage, current) to digital values and transfers those digital values to the PLC main unit.
1.1 Incorporated Items
Product FX -4AD special function block for analog input
3U
• Special unit/block No. label
Accessories • Dust proof sheet × 1
• Installation manual (This manual)
1.2 External Dimensions, Part Names, and Terminal Layout
1.2.1 External Dimensions and Part Names
[1] [2]
[9]
[8]
9(0.36")
87(3.43")
[1] Direct mounting hole:2 holes of φ4.5 (0.18") (mounting screw: M4 screw)
[2] Extension cable
[3] POWER LED (green):
Lit while 5V DC power is supplied from PLC.
[4] Terminal block for power supply (24V DC) (M3 terminal screw)
[5] Terminal block for analog input
Remark
[6] 24V LED (red):
Lit while 24V DC power is supplied properly to terminals [24+] and [24-].
[7] A/D LED (red): Flashes (at high speed) during A/D conversion.
[8] DIN rail mounting hook
[9] DIN rail mounting groove (35 mm (1.38") wide)
1.2.2 Terminal Layout
24- V+ I+
24+ VI- FG
CH1
2. Installation
INSTALLATION
PRECAUTIONS
• Use the product within the generic environment specifications described in PLC
main unit manual (Hardware Edition).
Never use the product in areas with excessive dust, oily smoke, conductive dusts,
corrosive gas (salt air, Cl , H
2
impacts, or expose it to high temperature, condensation, or rain and wind.
If the product is used in such conditions, electric shock, fire, malfunctions,
deterioration or damage may occur.
• Do not touch the conductive parts of the product directly.
Doing so may cause device failures or malfunctions.
• Install the product securely using a DIN rail or mounting screws.
• Install the product on a flat surface.
If the mounting surface is rough, undue force will be applied to the PC board,
thereby causing nonconformities.
• When drilling screw holes or wiring, make sure that cutting and wiring debris do
not enter the ventilation slits of the PLC.
Failure to do so may cause fire, equipment failures or malfunctions.
• Be sure to remove the dust proof sheet from the PLC's ventilation slits when
installation work is completed.
Failure to do so may cause fire, equipment failures or malfunctions.
• Connect extension cables securely to their designated connectors.
Loose connections may cause malfunctions.
2.1 Arrangements
The product connects on the right side of an PLC main unit or extension units/blocks
(including special function units/blocks).
For connection to FX 3GC /FX 3UC
FX 2NC -CNV-IF or FX 3UC -1PS-5V is required.
For connection to FX5U/FX5UC PLC, FX5-CNV-BUS or FX5-CNV-BUSC is required.
For further information of installation arrangements, refer to the following manual.
→ For details, refer to the FX
→ For details, refer to the FX
→ For details, refer to the FX
→ For details, refer to the FX
→ For details, refer to the MELSEC iQ-F FX5U User's Manual (Hardware)
→ For details, refer to the MELSEC iQ-F FX5UC User's Manual (Hardware)
2.2 Mounting
The product is mounted by the following method.
• Direct mounting
[Without top cover]
• DIN rail mounting
[3] [4]
2.2.1 Direct Mounting
The product can be mounted with M4 screws by using the direct mounting holes.
Refer to the External Dimensions (section 1.2) for the product's mounting hole
pitch information.
An interval space between each unit of 1 to 2 mm (0.04" to 0.08") is necessary.
For further information of direct installation, also refer to the following manual.
FX 3U -4AD
4(0.16")
[7] [6] [5]
55(2.17")
2.2.2 DIN Rail Mounting
Unit: mm (inches)
MASS(Weight) : Approx. 0.2kg(0.44lbs)
The product can be mounted on a DIN rail (DIN46227, 35mm width).
1) Fit the upper edge of the DIN rail mounting
groove (fig. A) onto the DIN rail.
2) Press the product against the DIN rail.
3) Connect the extension cable (fig. B) to the
main unit, input/output extension unit/
block, and special function unit/block on
the left.
V+ I+ V+ I+ V+ I+
For the details of the extension cable
VI- FG VI- FG VI- connection, refer to the following manual.
→ Refer to the FX
CH2 CH3 CH4
→ Refer to the FX
Left side of the product
(Extension cable side)
→ Refer to the FX
→ Refer to the FX
→ Refer to the MELSEC iQ-F FX5U User's
→ Refer to the MELSEC iQ-F FX5UC User's
3. Wiring
S, SO , or NO ), flammable gas, vibration or
2 2 2
WIRING
PRECAUTIONS
• Make sure to cut off all phases of the power supply externally before
attempting installation or wiring work.
Failure to do so may cause electric shock or damage to the product.
WIRING
PRECAUTIONS
• Make sure to observe the following precautions in order to prevent
malfunctions under the influence of noise:
1) Do not bundle the power line or twisted shielded cable together with or lay
it close to the main circuit, high-voltage line or load line.
Otherwise, noise disturbance and/or surge induction are likely to take
place. As a guideline, lay the control line 100mm (3.94") or more away
from the main circuit, high-voltage line, or load line.
2) Ground the shield wire or shield of the shielded cable at one point on the
PLC. However, do not use common grounding with heavy electrical
systems.
• Make sure to properly wire to the terminal blocks in accordance with the
following precautions.
Failure to do so may cause electric shock, equipment failures, a short-circuit,
Series PLC or FX 2NC Series PLC extension block,
wire breakage, malfunctions, or damage to the product.
- The disposal size of the cable end should follow the dimensions
described in the manual.
Series User's Manual - Hardware Edition.
3G
- Tightening torque should follow the specification in the manual.
Series User's Manual - Hardware Edition.
3GC
- Tighten the screws using a Phillips-head screwdriver No.2 (shaft diameter
Series User's Manual - Hardware Edition.
3U
6mm (0.24") or less). Make sure that the screwdriver does not touch the
3UC Series User's Manual - Hardware Edition.
partition part of the terminal block.
→ Refer to the FX Series User's Manual - Hardware Edition
3G
→ Refer to the FX
Series User's Manual - Hardware Edition
3GC
→ Refer to the FX Series User's Manual - Hardware Edition
3U
→ Refer to the FX
3UC Series User's Manual - Hardware Edition
→ Refer to the MELSEC iQ-F FX5U User's Manual (Hardware)
→ Refer to the MELSEC iQ-F FX5UC User's Manual (Hardware)
1)
A
2)
Series User's
3G
Manual - Hardware Edition
Series User's
3GC
Manual - Hardware Edition
3U Series User's
Manual - Hardware Edition
3UC Series User's
Manual - Hardware Edition
Manual (Hardware)
Manual (Hardware)
