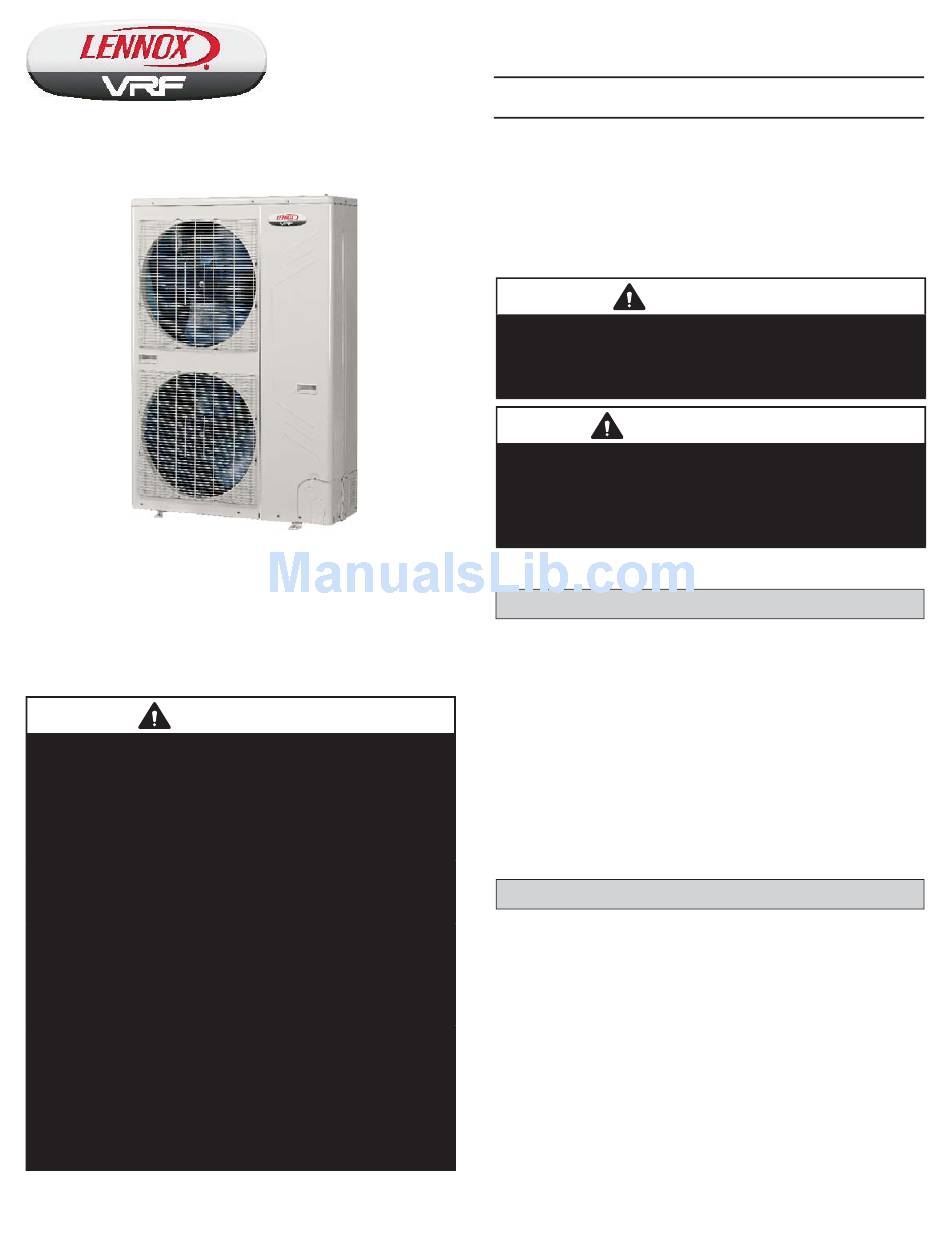

Mini-VRF Heat Pump
VPA***H4-2P
VRF SYSTEMS
OUTDOOR UNITS
507641-07
04/2018
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves and
protective clothing.
IMPORTANT
The Clean Air Act of 1990 bans the intentional venting
of refrigerant (CFC's and HCFC's) as of July 1, 1992.
Approved methods of recovery, recycling or reclaiming
must be followed. Fines and/or incarceration may be
levied for non-compliance.
General
The Mini-VRF heat pump outdoor units are matched
with up to nine indoor units to create a VRF (variable
refrigerant fl ow) system that uses R-410A refrigerant.
Refer to the Product Specifi cation bulletin (EHB) for
the proper use of these heat pumps with matching
indoor units, branch boxes, branch pipes, line sets
and controls.
These instructions are intended as a general guide
and do not supersede local or national codes in any
way. Authorities having jurisdiction should be con-
sulted before installation.
Shipping and Packing List
Check the components for shipping damage. If you
fi nd any damage, immediately contact the last car-
rier. Package 1 of 1 contains the following:
1 - Assembled Mini-VRF heat pump outdoor unit
1 - Outdoor unit installation instruction
1
CAUTION
