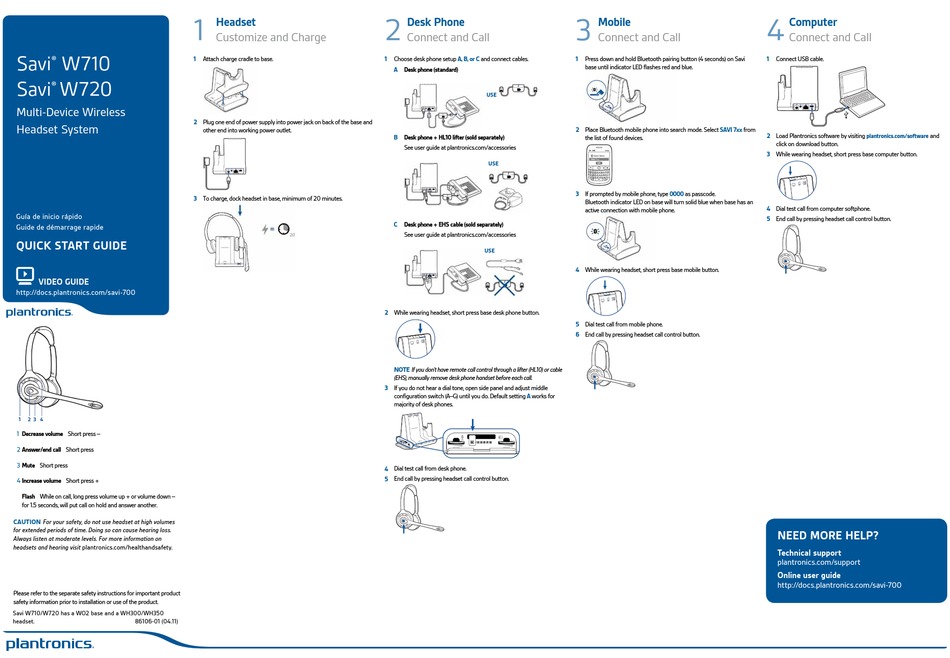

Plantronics Savi W720 Quick Start Manual

®
Savi W710
Savi W710
®
Multi Device Wireless
Savi ® W720
Headset System
Multi-Device Wireless
Headset System
Guide de démarrage rapide
Guía de inicio rápido
Guia de Início Rápido
Guía de inicio rápido
Guide de démarrage rapide
QUICK START GUIDE
quick start guide
VIDEO GUIDE
http://docs.plantronics.com/savi-700
VideO guide
http://docs.plantronics.com/savi-700
1 Decrease volume Short press –
2 Answer/end call Short press
3 Mute Short press
4 Increase volume Short press +
5 Flash While on call, long press volume up + or volume down –
for 1.5 seconds, will put call on hold and answer another.
CAUTION For your safety, do not use headset at high volumes
for extended periods of time. Doing so can cause hearing loss.
Always listen at moderate levels. For more information on
headsets and hearing visit plantronics.com/healthandsafety.
Please refer to the separate safety instructions for important product
safety information prior to installation or use of the product.
Savi W710/W720 has a WO2 base and a WH300/WH350
Savi W710/W720 has a WO2 base and a WH300/WH350
headset. 86106-01 (04.11)
headset.
1
Headset
Customize and Charge
1 Attach charge cradle to base.
2 Plug one end of power supply into power jack on back of the base and
other end into working power outlet.
3 To charge, dock headset in base, minimum of 20 minutes.
2
Desk Phone
Connect and Call
1 Choose desk phone setup A, B, or C and connect cables.
A Desk phone (standard)
USE
B Desk phone + HL10 lifter (sold separately)
See user guide at plantronics.com/accessories
USE
C Desk phone + EHS cable (sold separately)
See user guide at plantronics.com/accessories
USE
2 While wearing headset, short press base desk phone button.
NOTE
If you don' t have remote call control through a lifter (HL10) or cable
(EHS), manually remove desk phone handset before each call.
3 If you do not hear a dial tone, open side panel and adjust middle
configuration switch (A–G) until you do. Default setting A works for
majority of desk phones.
4 Dial test call from desk phone.
5 End call by pressing headset call control button.
3
Mobile
Connect and Call
1 Press down and hold Bluetooth pairing button (4 seconds) on Savi
base until indicator LED flashes red and blue.
2 Place Bluetooth mobile phone into search mode. Select SAVI 7xx from
the list of found devices.
3 If prompted by mobile phone, type 0000 as passcode.
Bluetooth indicator LED on base will turn solid blue when base has an
active connection with mobile phone.
4 While wearing headset, short press base mobile button.
5 Dial test call from mobile phone.
6 End call by pressing headset call control button.
4
Computer
Connect and Call
1 Connect USB cable.
2 Load Plantronics software by visiting plantronics.com/software and plantronics.com/software
click on download button.
3 While wearing headset, short press base computer button.
4 Dial test call from computer softphone.
5 End call by pressing headset call control button.
Executive Systems, Inc.
Richmond, Virginia 23230-2657
804-288-0041
804-288-4731 [Fax]
800-288-0041 [Sales & Service]
www.ExecutiveSystemsInc.com
info@esitsd.com - Email
Need MOre HeLP?
technical support
plantronics.com/support
NEED MORE HELP?
Online user guide
http://docs.plantronics.com/savi-700
Product support
plantronics.com/support
Online user guide
http://docs.plantronics.com/savi-700
