The KD-A22 can be installed on a 22-inch acoustic bass drum.

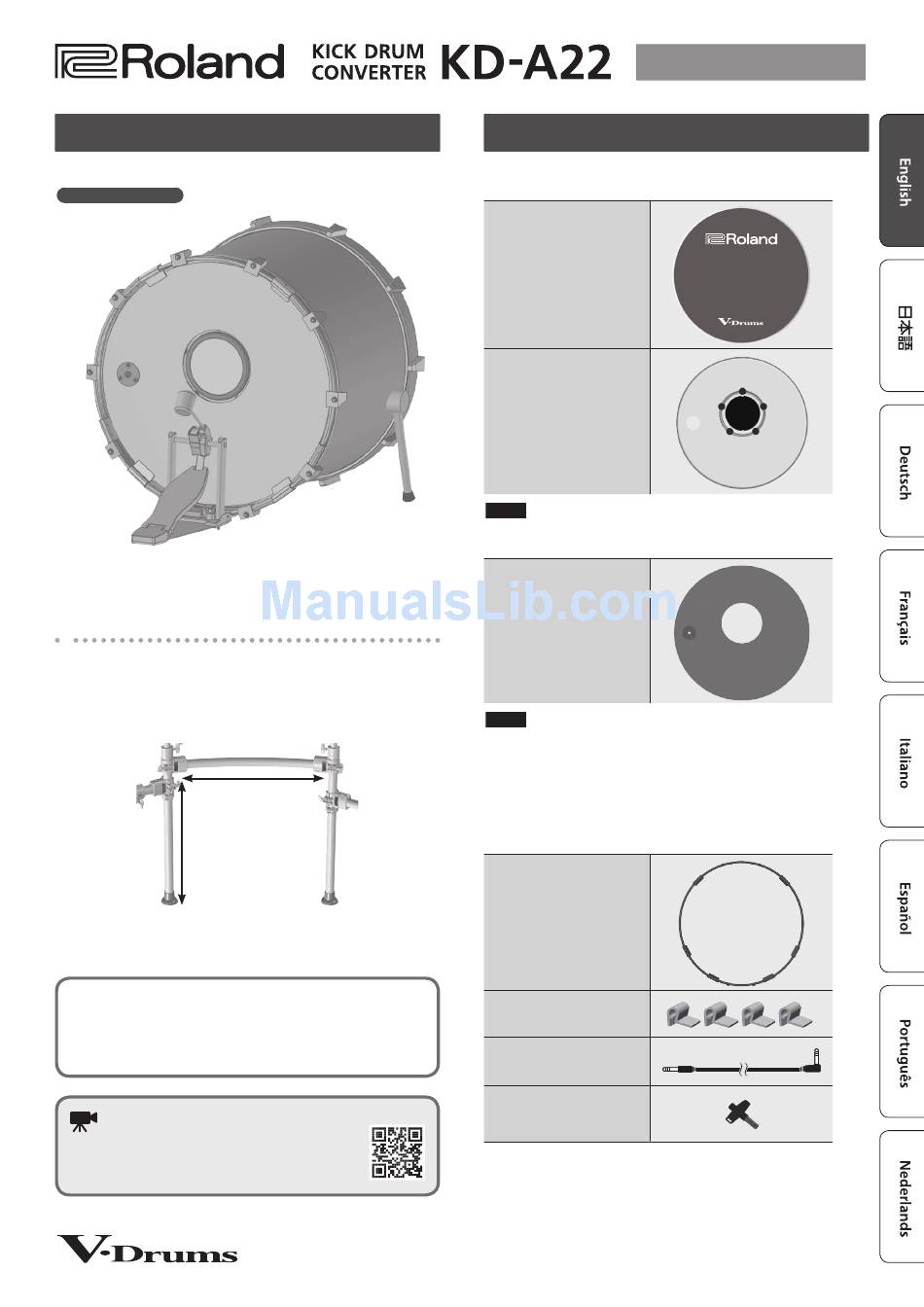

Fully assembled view
* A 22-inch acoustic bass drum is not included with this product.
When using a drum stand (MDS-50K/MDS-50KV)
For the MDS-50K/MDS-50KV, the spacing of the bass drum installation area
is as follows.
Vertical:
590 mm (23-1/4")
Horizontal: 620 mm (24-7/16")
590 mm
(23-1/4")
Before using this unit, carefully read "USING THE UNIT SAFELY" and
"IMPORTANT NOTES" (p. 6). After reading, keep the document(s) where it will
be available for immediate reference.
Copyright © 2016 ROLAND CORPORATION
Watch the Quick Start Video
"Installing the KD-A22"
http://roland.cm/kd-a22
620 mm
(24-7/16")
Check the Included Items
After opening the package, check that all of the included items are
present. If anything is missing, contact your dealer.
Front head
Batter head
NOTE
Do not pull the cable that is attached to the batter head.
Batter board
NOTE
A circuit board is attached to the batter board. To prevent injury,
damage, or accident, observe the following points.
5 Do not touch the circuit board with your fingers.
5 Do not lay down the batter board with the circuit board facing
downward.
5 Do not apply excessive force to the circuit board.
Batter hoop
* Batter board spacers (6 pcs.) are
already attached
Batter board stopper x 4
Connection cable
Drum key
Owner's Manual
