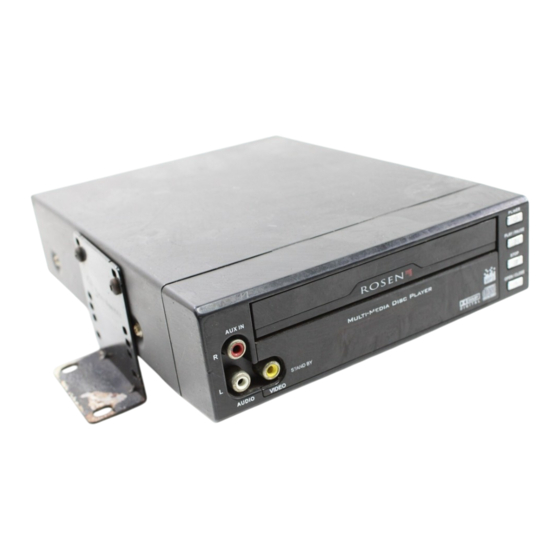

- Page 1 ROSEN a new generation of leadership in mobile video a new generation of leadership in mobile video R5505 DVD/CD/MP3 Player w/ TV Tuner R5506 DVD/CD/MP3 Player Owner's Manual and Installation Guide .mp3...
-
Page 3: Table Of Contents
THE DRIVER’S SAFE OPERATION OF THE VEHICLE, AND THUS RESULT IN SERIOUS INJURY OR DEATH. SUCH USE MAY ALSO VIOLATE STATE LAW. ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY LIABIL- ITY FOR ANY BODILY INJURY OR PROPERTY DAMAGE THAT MAY RESULT FROM ANY IMPROPER OR UNINTENDED USE. -
Page 4: Introduction
INTRODUCTION The R5505 and R5506 are full-featured disc players, support- ing DVD, CD-Video, CD-Audio, and MP3 playback, and are designed specifically for the mobile environment. They are intended for use with other Rosen/necvox products and Rosen/necvox video monitors, and can also be integrated with many other products as part of a complete mobile video solution. -
Page 5: Care And Maintenance
Liquids and the DVD player Keep all liquids, including beverages and cleaning liquids, away from the DVD player. Liquids inside the player can damage the electronics, and result in electrical shock or fire. If the unit or the remote control should become wet, turn off all power and contact an authorized Rosen/necvox dealer to have the system inspected. -
Page 6: Discs Played By This Unit
If you still experience problems with playback, you will need to wait for approximately one hour to allow the DVD player to warm up, and for the condensation to evaporate. If playback issues continue, please see your authorized Rosen/necvox dealer. -
Page 7: Using The Dvd Player
CD-Audio manufactured with certain copy protection methods Any DVD with a Region number other than “1” and “ALL” USING THE DVD PLAYER In order to operate the player, the vehicle ignition key switch must be in the ACC or engine ON position. - Page 8 [OPEN/CLOSE] button A/V auxiliary inputs R5505 The [POWER] button turns the DVD player on and off. The [POWER] button on the remote can also turn on the unit. The [OPEN/CLOSE] button operates the disc loading drawer. For information on using the rest of the front-panel controls, please see the sections describing disc playback.
-
Page 9: The Remote Control
THE REMOTE CONTROL Power Source - DVD/TV/EXT Scan Surround Zoom Audio Next /Previous - SKIP Menu Title Menu Navigation keys Slow Stop Using the Remote Control Aim the remote control towards the IR receiver on the front panel. The remote control can operate at a 30-degree angle Open/Close from the front of the unit. -
Page 10: Dvd/Vcd/Cd-Audio Playback
[PLAY]. Pressing [STOP] twice will stop playback and clear the R5505 ’s memory of the last point played on the disc. Pressing [PLAY] at this point will cause the DVD player to begin playback from the beginning of the disc. - Page 11 Selecting a Track or Chapter Moving to the Next Track or Chapter Press the [SKIP forward] button during playback. The next track or chapter will be selected. Moving to the Previous Track or Chapter Press the [SKIP back] button during playback. The first time this button is pressed, playback of the current track or chapter will restart from the beginning.
-
Page 12: Watching Broadcast Television (R5505 Only)
“Setup” section. Notes: To change the film rating setting, the password must be used. The DVD player determines the correct film ratings to use based on the country selected in the “Locale” setting —see section “Setup.”... -
Page 13: Mp3 Playback On Cd-R Discs
MP3 PLAYBACK ON CD-R DISCS MP3 Disc Recording and File Extensions Always add a file extension “ .MP3” or “.mp3” to an MP3 file by using single-byte letters. If you add a different file exten- sion, or forget to add the file extension “ .MP3” or “.mp3,” the file cannot be played. -
Page 14: Installation And Wiring
Installation and Wiring 1. Before Starting Read these instructions and the following precautions carefully. WARNING! Be sure to disconnect the battery (-) terminal before starting. This is to prevent short circuits during installation. Precautions This unit is exclusively for cars with a negative ground, 12V power supply. - Page 15 4. Installing the DVD player Mounting the DVD player WARNING! Always use great care when attaching anything to a vehicle! Visually inspect all sides of any potential screw location, to insure no damage will occur. If you have questions about this process, see your authorized Rosen dealer.
- Page 16 Wiring the DVD player Read the following precautions before wiring your system. Disconnect the negative battery terminal before making any wiring connections. Be particularly careful where you route wires. Keep them away from the engine, exhaust system, etc. Heat may damage wires.
- Page 17 Rear Panel Connections Four-pin three-wire power harness connector External IR sensor input Video output Coaxial digital (yellow) output Left and right audio output (white = left, red = right) antenna input (R5505 only) R5505...
-
Page 18: Setup
SETUP TYPICAL SETUP AND CONFIGURATION The DVD player is very flexible. For more advanced setting options, please see the “Setup Options List” at the end of this section. The unit is shipped with the following configuration: Standard 4:3 aspect ratio format output... - Page 19 Changing the Aspect Ratio Mode To change the aspect ratio mode, select GENERAL, and then select TV DISPLAY. For widescreen (16:9) monitors, select WIDE. For standard monitors and letterbox viewing (black bars on the top and bottom of the screen, but the entire image preserved), select NORMAL/LB.
- Page 20 Concealing the “Angle Mark” To display or conceal the “angle mark,” which appears during scenes that support the multiple-viewing-angle feature, select GENERAL and ANGLE MARK. R5505 Activating Captions and Subtitles To enable or disable captions or subtitles, select GENERAL and CAPTIONS. Note: If CAPTIONS is set to OFF, the [SUBTITLE] button will be defeated from working.
- Page 21 Activating the Digital Output To turn on the digital output, select AUDIO and AUDIO OUT. Note: Only enable the digital output when a digital audio processor is in use, since enabling it disables the analog audio output on the red and white RCA jacks. Note that some digital audio proces- sors will require you to select an LPCM output frequency.
- Page 22 Several language settings can be customized on the R5505. Notes: Not all language settings are supported by all discs. The languages supported by the DVD player vary by individual option setting. To change the on-screen display language, select GEN- ERAL and OSD LANG.
- Page 23 To change the soundtrack language, select PREFERENCES and AUDIO. To change the subtitle or caption language, select PREF- ERENCES and SUBTITLE. To change the disc menu language, select PREFERENCES and DISC MENU. R5505...
- Page 24 Setup Options List The factory default options are given in bold type. GENERAL PAGE TV DISPLAY: NORMAL/PS, NORMAL/LB, WIDE. PIC MODE: AUTO, HI-RES, N-FLICKER ANGLE MARK: ON, OFF OSD LANG: ENGLISH, CHINESE CAPTIONS: ON, OFF SCRN SAVER: OFF, ON SPEAKER SETUP DOWNMIX: LT/RT, STEREO AUDIO SETUP...
- Page 25 TROUBLESHOOTING “Tinny” sound or low-level sound. Check the Volume setting. Check the “Downmix” setting in the SETUP menus and ensure that it is set to “Stereo,” not “LT/RT.” No sound Check the Mute function on the remote control. Is the Analog audio output turned off? Check the Setup Menu under Audio, Audio Out.
- Page 26 R5505...
- Page 28 Please read this entire document carefully before operating or installing this unit. www.rosenentertainment.com 866-GO ROSEN...
