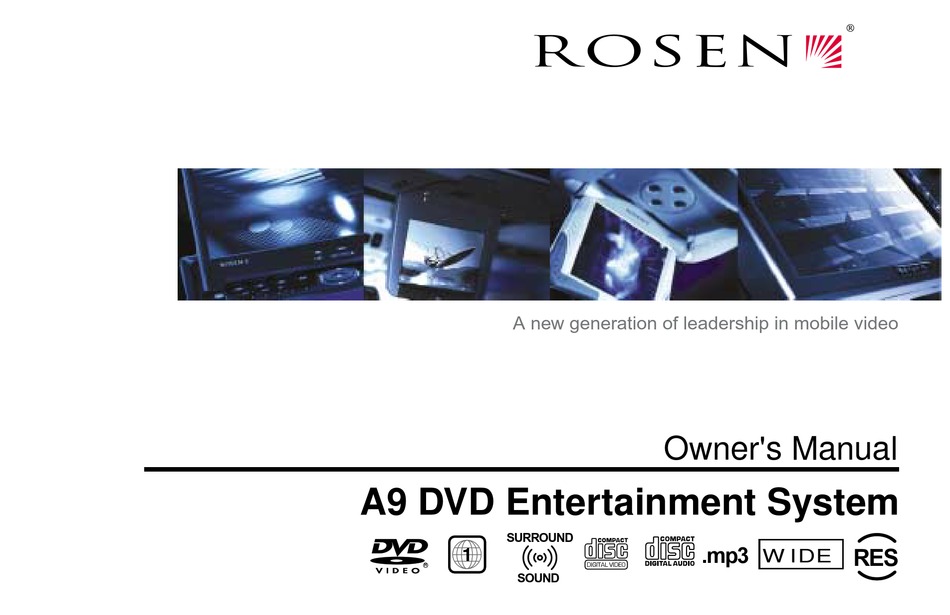

- Page 1 ROSEN Owner's Manual A9 DVD Entertainment System SURROUND .mp3 WIDE SOUND...
- Page 2 NOTICE OF INTENDED USE ROSEN ENTERTAINMENT SYSTEMS ARE DESIGNED TO ENABLE VIEWING OF VIDEO RECORDINGS ONLY FOR REAR- SEAT OCCUPANTS. MOBILE VIDEO PRODUCTS ARE NOT INTENDED FOR VIEW- ING BY THE DRIVER WHILE THE VEHICLE IS IN MOTION. SUCH USE MAY DISTRACT THE DRIVER OR INTERFERE WITH THE DRIVER’S SAFE OPERATION OF THE VEHICLE, AND...
-
Page 3: Table Of Contents
Table of Contents Getting Started ... 4 Switching On, Lowering and Adjusting the Screen, Finding the Remote Control Buttons You Need, Listening Over the Vehicle Speakers Introduction ... 6 Discs Played by the A9 ... 7 Changing Monitor Settings ... 8 Using the Dome Lights ... -
Page 4: Getting Started
GETTING STARTED USING YOUR A9 OPEN button OPEN ENTER SOURCE Dome light LCD Screen Switching On, Lowering and Adjusting the Screen Use the system when your vehicle is running, or with the ignition key switch in the “accessory” position. Press the OPEN button, as shown. The screen lowers and powers on automatically. - Page 5 Watching Video (Note: The ignition key switch must be in the Run or Accessory position) To Watch a DVD: 1 Press to remove any loaded disc. EJECT 2 Insert a DVD onto the slot, label side up. 3 For most DVDs, playback begins automatically. If not, press as instructed on screen (this varies by DVD).
-
Page 6: Introduction
Rosen A9 Owner’s Manual INTRODUCTION Welcome to the Rosen A9 Vehicle Entertainment System Owner’s Manual. To get the most enjoyment from using your A9 system, please make sure that you and your passengers take time to read these instructions. Your system includes the following components: ·... -
Page 7: Discs Played By The A9
Fast-forward and Stop (this is why you can’t skip past the copyright warning screen). If some feature cannot be used, usually it is the disc preventing the A9 from executing the operation. Rosen Entertainment Systems... -
Page 8: Changing Monitor Settings
Rosen A9 Owner’s Manual Changing Monitor Settings Display Adjustments: The A9 monitor has adjustable video settings. To change these settings, press the ENTER button on the overhead console and hold it for two seconds. A menu with the following options appears: COLOR (32) CONTRAST... -
Page 9: Using The Remote Control
Info Eject Navigate left Enter Navigate Right Subtitle Source Menu Navigate Down Disc Menu Disc Zoom Dome Light Day/night Random play Display Mode Rosen Entertainment Systems SOURCE INFO EJECT ENTER TITLE DISC DISC SOURCE ZOOM MENU MENU RANDOM DISPLAY PLAY... -
Page 10: Basic Remote Control Buttons
Rosen A9 Owner’s Manual BASIC REMOTE CONTROL BUTTONS Open/ Optional Source Unit Power Pressing this button will deploy the A9 screen (when in the closed position). This button also turns on and off some optional Rosen source units. (There is also an OPEN button on the front panel.) Note: The A9 automatically turns on and off as the screen is opened and closed. -
Page 11: Using Menu And Navigation Buttons
Note: If the DVD Player is selected and there is no disc loaded, pressing the INFO button will display the software version of the A9. This is for the use of factory personnel. Rosen Entertainment Systems USING AUDIO BUTTONS Speaker Sound Press this button to hear A9 audio through the car speakers;... -
Page 12: Using Dvd Disc Feature Buttons
Rosen A9 Owner’s Manual USING DVD DISC FEATURE BUTTONS Some DVDs include menu and viewing options. Use the following buttons to access DVD-only menus and features. 20 Subtitle TITLE Press repeatedly to cycle through the language options available on the DVD being played. DISC 23 Disc Menu MENU... -
Page 13: Audio Cd And Mp3 Playback
When recording Audio CDs or MP3 files, make sure to check your CD recorder’s level setting - too high a level will result in distorted sound. Rosen Entertainment Systems ARTIST NAME - SONG TITLE Three repeat modes are available for MP3 use: ·... -
Page 14: Rosen Entertainment Sound
Rosen A9 Owner’s Manual ROSEN ENTERTAINMENT SOUND What makes the Rosen A9 DVD sound better than any other “in-car entertainment” system? A collection of unique audio features that we call Rosen Entertainment Sound. Rosen engineers know that true entertainment isn’t just visual – you’ve got to have great sound! You won’t find this collection of sonic improvements anywhere but Rosen. -
Page 15: Using The Headphones
There are two jacks for wired headphones on the forward edge of the A9, under a removable cover. When using optional wired Power ON/OFF headphones, use headphones with a volume control, such as the AC3004 available from Rosen. The A9 has no volume adjustment. Rosen Entertainment Systems Mini-stereo Headphone Jacks... -
Page 16: Listening Over The Car Speakers
Rosen A9 Owner’s Manual LISTENING OVER THE CAR SPEAKERS The A9 uses an FM Modulator to send audio through the vehicle radio and thus through the speakers. To listen to A9 system audio through your car speakers: 1 Press SPEAKER. “Speaker Sound Enabled” will appear on the screen. -
Page 17: Using Games And Camcorders
A9 system. This makes using your A9 and CV9200 together truly seamless. AC3004 Wired Headphones with volume control Additional headphones and remotes are available from your autho- rized Rosen dealer. AC3003 Infrared Wireless Headphones AC3205 Remote Control Rosen Entertainment Systems... -
Page 18: What Can I Do About Black Bars On The Screen
Rosen A9 Owner’s Manual WHAT CAN I DO ABOUT BLACK BARS ON THE SCREEN? Motion picture film and cameras, and later television screens, were originally designed around a screen size that was almost square - it was one-third wider than it was high (another way to say this is that it had a width-to-height ratio, or aspect ratio, of 4:3. - Page 19 TV tuner), you can use the DISPLAY MODE button to select “Standard”. This will properly size the image, instead of stretching the image across the wide screen. In “Standard” mode, you will see black bars on the sides of the image, like this: Rosen Entertainment Systems...
-
Page 20: Changing Dvd Setup
Rosen A9 Owner’s Manual DVD TYPICAL SETUP AND CONFIGURATION The following section explains how to customize various features of the A9’s DVD Player, including various language, display, and parental control features. Note: Many DVD menu settings do not apply to the A9 system, since it is specifically engineered for automotive use. - Page 21 The languages supported by the A9 vary with the individual option setting - there is not a global language setting. To change the on-screen display language, select GENERAL and OSD LANG. Rosen Entertainment Systems To change the soundtrack lan- guage, select PREFERENCES and AUDIO. To change the subtitle or caption language, select PREFERENCES and SUBTITLE.
- Page 22 Rosen A9 Owner’s Manual Concealing the “Angle Mark” To display or conceal the “angle mark,” which appears during scenes that sup- port a multiple-viewing-angle feature, select GENERAL and ANGLE MARK. Since the remote included with the A9 does not support this feature, the default for this setting is “OFF”.
-
Page 23: Troubleshooting
If the tips in this section do not address your question, please contact your Rosen authorized dealer - your A9 has internal diagnostic capabilities that are accessible to authorized Rosen dealers. To locate a Rosen Entertainment Systems authorized dealer, please visit www.rosenentertainment.com. Rosen Entertainment Systems... - Page 24 9100236 Rev A RES PN © 2003 Rosen Entertainment Systems www.rosenentertainment.com (909) 898-9808 All rights reserved. No part of this publication may be reproduced, stored in a retrieval sytem or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Rosen.
