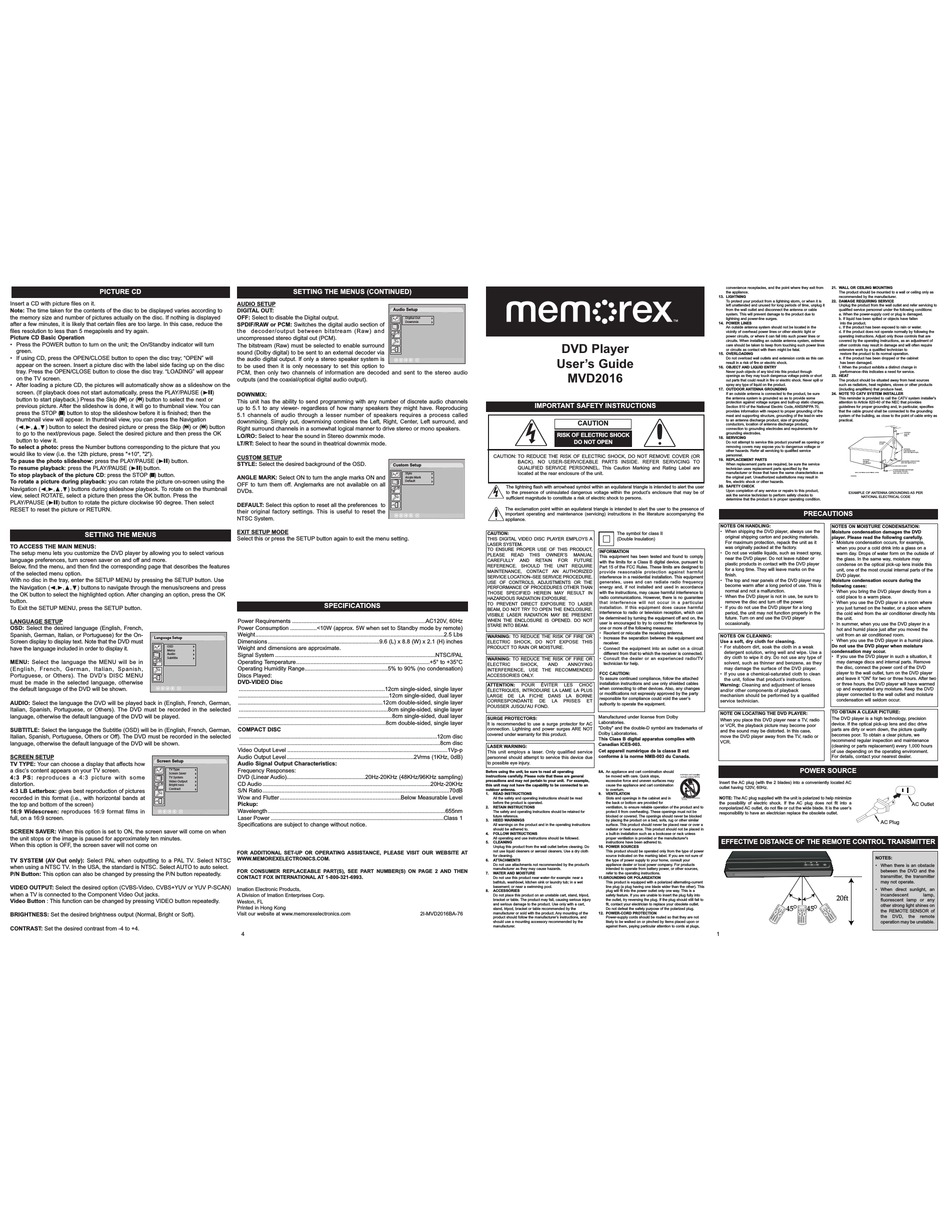

Memorex MVD2016 User Manual

PICTURE CD
Insert a CD with picture files on it.
Note: The time taken for the contents of the disc to be displayed varies according to
the memory size and number of pictures actually on the disc. If nothing is displayed
after a few minutes, it is likely that certain files are too large. In this case, reduce the
files resolution to less than 5 megapixels and try again.
Picture CD Basic Operation
• Press the POWER button to turn on the unit; the On/Standby indicator will turn
green.
• If using CD, press the OPEN/CLOSE button to open the disc tray; "OPEN" will
appear on the screen. Insert a picture disc with the label side facing up on the disc
tray. Press the OPEN/CLOSE button to close the disc tray. "LOADING" will appear
on the TV screen.
• After loading a picture CD, the pictures will automatically show as a slideshow on the
screen. (If playback does not start automatically, press the PLAY/PAUSE (®p)
button to start playback.) Press the Skip (n) or (o) button to select the next or
previous picture. After the slideshow is done, it will go to thumbnail view. You can
press the STOP (X) button to stop the slideshow before it is finished; then the
thumbnail view will appear. In thumbnail view, you can press the Navigation
(√,®,π,†) button to select the desired picture or press the Skip (n) or (o) button
to go to the next/previous page. Select the desired picture and then press the OK
button to view it.
To select a photo: press the Number buttons corresponding to the picture that you
would like to view (i.e. the 12th picture, press "+10", "2").
To pause the photo slideshow: press the PLAY/PAUSE (®p) button.
To resume playback: press the PLAY/PAUSE (®p) button.
To stop playback of the picture CD: press the STOP (X) button.
To rotate a picture during playback: you can rotate the picture on-screen using the
Navigation (√,®,π,†) buttons during slideshow playback. To rotate on the thumbnail
view, select ROTATE, select a picture then press the OK button. Press the
PLAY/PAUSE (®p) button to rotate the picture clockwise 90 degree. Then select
RESET to reset the picture or RETURN.
SETTING THE MENUS
TO ACCESS THE MAIN MENUS:
The setup menu lets you customize the DVD player by allowing you to select various
language preferences, turn screen saver on and off and more.
Below, find the menu, and then find the corresponding page that describes the features
of the selected menu option.
With no disc in the tray, enter the SETUP MENU by pressing the SETUP button. Use
the Navigation (√,®,π,†) buttons to navigate through the menus/screens and press
the OK button to select the highlighted option. After changing an option, press the OK
button.
To Exit the SETUP MENU, press the SETUP button.
LANGUAGE SETUP
OSD: Select the desired language (English, French,
Spanish, German, Italian, or Portuguese) for the On-
Screen display to display text. Note that the DVD must
Language Setup
have the language included in order to display it.
OSD
Menu
MENU: Select the language the MENU will be in Audio
Subtitle
(English, French, German, Italian, Spanish,
Portuguese, or Others). The DVD's DISC MENU
must be made in the selected language, otherwise
the default language of the DVD will be shown.
AUDIO: Select the language the DVD will be played back in (English, French, German,
Italian, Spanish, Portuguese, or Others). The DVD must be recorded in the selected
language, otherwise the default language of the DVD will be played.
SUBTITLE: Select the language the Subtitle (OSD) will be in (English, French, German,
Italian, Spanish, Portuguese, Others or Off). The DVD must be recorded in the selected
language, otherwise the default language of the DVD will be shown.
SCREEN SETUP
TV TYPE: Your can choose a display that affects how
Screen Setup
a disc's content appears on your TV screen.
4:3 PS: reproduces a 4:3 picture with some TV Type
Screen Saver
distortion.
TV System
Video Output
4:3 LB Letterbox: gives best reproduction of pictures
Bright ness
recorded in this format (i.e., with horizontal bands at Contrast
the top and bottom of the screen)
16:9 Widescreen: reproduces 16:9 format films in
full, on a 16:9 screen.
SCREEN SAVER: When this option is set to ON, the screen saver will come on when
the unit stops or the image is paused for approximately ten minutes.
When this option is OFF, the screen saver will not come on
TV SYSTEM (AV Out only): Select PAL when outputting to a PAL TV. Select NTSC
D
when using a NTSC TV. In the USA, the standard is NTSC. Select AUTO to auto select.
P/N Button: This option can also be changed by pressing the P/N button repeatedly.
VIDEO OUTPUT: Select the desired option (CVBS-Video, CVBS+YUV or YUV P-SCAN)
when a TV is connected to the Component Video Out jacks.
Video Button : This function can be changed by pressing VIDEO button repeatedly.
BRIGHTNESS: Set the desired brightness output (Normal, Bright or Soft).
CONTRAST: Set the desired contrast from -4 to +4.
Downloaded from www.Manualslib.com
SETTING THE MENUS (CONTINUED)
AUDIO SETUP
DIGITAL OUT:
OFF: Select to disable the Digital output.
SPDIF/RAW or PCM: Switches the digital audio section of
the decoder/output between bitstream (Raw) and
uncompressed stereo digital out (PCM).
The bitstream (Raw) must be selected to enable surround
sound (Dolby digital) to be sent to an external decoder via
the audio digital output. If only a stereo speaker system is
to be used then it is only necessary to set this option to
PCM, then only two channels of information are decoded and sent to the stereo audio
outputs (and the coaxial/optical digital audio output).
DOWNMIX:
This unit has the ability to send programming with any number of discrete audio channels
up to 5.1 to any viewer- regardless of how many speakers they might have. Reproducing
5.1 channels of audio through a lesser number of speakers requires a process called
downmixing. Simply put, downmixing combines the Left, Right, Center, Left surround, and
Right surround channels in a somewhat logical manner to drive stereo or mono speakers.
LO/RO: Select to hear the sound in Stereo downmix mode.
LT/RT: Select to hear the sound in theatrical downmix mode.
CUSTOM SETUP
STYLE: Select the desired background of the OSD.
ANGLE MARK: Select ON to turn the angle marks ON and
OFF to turn them off. Anglemarks are not available on all
DVDs.
DEFAULT: Select this option to reset all the preferences to
their original factory settings. This is useful to reset the
NTSC System.
EXIT SETUP MODE
Select this or press the SETUP button again to exit the menu setting.
SPECIFICATIONS
Power Requirements .....................................................................................AC120V, 60Hz
Power Consumption .................<10W (approx. 5W when set to Standby mode by remote)
Weight........................................................................................................................2.5 Lbs
Dimensions .......................................................................9.6 (L) x 8.8 (W) x 2.1 (H) inches
Weight and dimensions are approximate.
Signal System ......................................................................................................NTSC/PAL
Operating Temperature.....................................................................................+5° to +35°C
Operating Humidity Range.....................................................5% to 90% (no condensation)
Discs Played:
DVD-VIDEO Disc
.............................................................................................12cm single-sided, single layer
................................................................................................12cm single-sided, dual layer
............................................................................................12cm double-sided, single layer
...............................................................................................8cm single-sided, single layer
..................................................................................................8cm single-sided, dual layer
..............................................................................................8cm double-sided, single layer
COMPACT DISC
..............................................................................................................................12cm disc
................................................................................................................................8cm disc
Video Output Level ......................................................................................................1Vp-p
Audio Output Level .................................................................................2Vrms (1KHz, 0dB)
Audio Signal Output Characteristics:
Frequency Responses:
DVD (Linear Audio)..................................................20Hz-20KHz (48KHz/96KHz sampling)
CD Audio ...........................................................................................................20Hz-20KHz
S/N Ratio.......................................................................................................................70dB
Wow and Flutter .............................................................................Below Measurable Level
Pickup:
Wavelength .................................................................................................................655nm
Laser Power ..............................................................................................................Class 1
Specifications are subject to change without notice.
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT
WWW.MEMOREXELECTRONICS.COM.
FOR CONSUMER REPLACEABLE PART(S), SEE PART NUMBER(S) ON PAGE 2 AND THEN
CONTACT FOX INTERNATIONAL AT 1-800-321-6993.
Imation Electronic Products,
A Division of Imation Enterprises Corp.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
4
manuals search engine
Audio Setup
Digital Out
Downmix

DVD Player

User's Guide
MVD2016
IMPORTANT SAFETY INSTRUCTIONS
RISK OF ELECTRIC SHOCK
A
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL. This Caution Marking and Rating Label are
Custom Setup
located at the rear enclosure of the unit.
Style
Angle Mark
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
Default
to the presence of uninsulated dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION:
THIS DIGITAL VIDEO DISC PLAYER EMPLOYS A
LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT,
PLEASE READ THIS OWNER'S
CAREFULLY AND RETAIN FOR
REFERENCE. SHOULD THE UNIT REQUIRE
MAINTENANCE, CONTACT AN AUTHORIZED
SERVICE LOCATION–SEE SERVICE PROCEDURE.
USE OF CONTROLS, ADJUSTMENTS OR THE
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER
BEAM, DO NOT TRY TO OPEN THE ENCLOSURE.
VISIBLE LASER RADIATION MAY BE PRESENT
WHEN THE ENCLOSURE IS OPENED. DO NOT
STARE INTO BEAM.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE THE RECOMMENDED
ACCESSORIES ONLY.
ATTENTION: POUR ÉVITER LES
ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISES
POUSSER JUSQU'AU FOND.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC
connection. Lightning and power surges ARE NOT
covered under warranty for this product.
LASER WARNING:
This unit employs a laser. Only qualified service
personnel should attempt to service this device due
to possible eye injury.
Before using the unit, be sure to read all operating
instructions carefully. Please note that these are general
precautions and may not pertain to your unit. For example,
this unit may not have the capability to be connected to an
outdoor antenna.
1. READ INSTRUCTIONS
All the safety and operating instructions should be read
before the product is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for
future reference.
3. HEED WARNINGS
All warnings on the product and in the operating instructions
should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a dry cloth
for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by the product's
manufacturer as they may cause hazards.
7. WATER AND MOISTURE
Do not use this product near water–for example: near a
bathtub, washbowl, kitchen sink or laundry tub; in a wet
basement; or near a swimming pool.
8. ACCESSORIES
Do not place this product on an unstable cart, stand, tripod,
bracket or table. The product may fall, causing serious injury
and serious damage to the product. Use only with a cart,
stand, tripod, bracket or table recommended by the
2I-MVD2016BA-76
manufacturer or sold with the product. Any mounting of the
product should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the
manufacturer.
convenience receptacles, and the point where they exit from
the appliance.
13. LIGHTNING
To protect your product from a lightning storm, or when it is
left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to
lightning and power-line surges.
14. POWER LINES
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or short
out parts that could result in fire or electric shock. Never spill or
spray any type of liquid on the product.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna is connected to the product, be sure
the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electric Code, ANSI/NFPA 70,
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
CAUTION
to an antenna discharge product, size of grounding
conductors, location of antenna discharge product,
connection to grounding electrodes and requirements for
grounding electrodes.
18. SERVICING
DO NOT OPEN
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
19. REPLACEMENT PARTS
When replacement parts are required, be sure the service
technician uses replacement parts specified by the
manufacturer or those that have the same characteristics as
the original part. Unauthorized substitutions may result in
fire, electric shock or other hazards.
20. SAFETY CHECK
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
NOTES ON HANDLING:
• When shipping the DVD player, always use the
The symbol for class II
original shipping carton and packing materials.
(Double Insulation)
For maximum protection, repack the unit as it
was originally packed at the factory.
INFORMATION
• Do not use volatile liquids, such as insect spray,
MANUAL
This equipment has been tested and found to comply
near the DVD player. Do not leave rubber or
FUTURE
with the limits for a Class B digital device, pursuant to
plastic products in contact with the DVD player
Part 15 of the FCC Rules. These limits are designed to
for a long time. They will leave marks on the
provide reasonable protection against harmful
finish.
interference in a residential installation. This equipment
• The top and rear panels of the DVD player may
generates, uses and can radiate radio frequency
become warm after a long period of use. This is
energy and, if not installed and used in accordance
normal and not a malfunction.
with the instructions, may cause harmful interference to
• When the DVD player is not in use, be sure to
radio communications. However, there is no guarantee
remove the disc and turn off the power.
that interference will not occur in a particular
• If you do not use the DVD player for a long
installation. If this equipment does cause harmful
period, the unit may not function properly in the
interference to radio or television reception, which can
be determined by turning the equipment off and on, the future. Turn on and use the DVD player
user is encouraged to try to correct the interference by occasionally.
one or more of the following measures:
• Reorient or relocate the receiving antenna.
NOTES ON CLEANING:
• Increase the separation between the equipment and
Use a soft, dry cloth for cleaning.
receiver.
• For stubborn dirt, soak the cloth in a weak
• Connect the equipment into an outlet on a circuit
detergent solution, wring well and wipe. Use a
different from that to which the receiver is connected.
dry cloth to wipe it dry. Do not use any type of
• Consult the dealer or an experienced radio/TV
solvent, such as thinner and benzene, as they
technician for help.
may damage the surface of the DVD player.
FCC CAUTION:
• If you use a chemical-saturated cloth to clean
To assure continued compliance, follow the attached
the unit, follow that product's instructions.
CHOC installation instructions and use only shielded cables Warning: Cleaning and adjustment of lenses
when connecting to other devices. Also, any changes
and/or other components of playback
or modifications not expressly approved by the party
mechanism should be performed by a qualified
responsible for compliance could void the user's
ET service technician.
authority to operate the equipment.
NOTE ON LOCATING THE DVD PLAYER:
Manufactured under license from Dolby
When you place this DVD player near a TV, radio
Laboratories.
or VCR, the playback picture may become poor
"Dolby" and the double-D symbol are trademarks of
and the sound may be distorted. In this case,
Dolby Laboratories.
move the DVD player away from the TV, radio or
This Class B digital apparatus complies with
VCR.
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
8A. An appliance and cart combination should
be moved with care. Quick stops,
excessive force and uneven surfaces may Insert the AC plug (with the 2 blades) into a conveniently located AC
cause the appliance and cart combination
outlet having 120V, 60Hz.
to overturn.
9. VENTILATION
NOTE: The AC plug supplied with the unit is polarized to help minimize
Slots and openings in the cabinet and in
the possibility of electric shock. If the AC plug does not fit into a
the back or bottom are provided for
ventilation, to ensure reliable operation of the product and to nonpolarized AC outlet, do not file or cut the wide blade. It is the user's
protect it from overheating. These openings must not be
responsibility to have an electrician replace the obsolete outlet.
blocked or covered. The openings should never be blocked
by placing the product on a bed, sofa, rug or other similar
surface. This product should never be placed near or over a
radiator or heat source. This product should not be placed in
a built-in installation such as a bookcase or rack unless
EFFECTIVE DISTANCE OF THE REMOTE CONTROL TRANSMITTER
proper ventilation is provided or the manufacturer's
instructions have been adhered to.
10. POWER SOURCES
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your
appliance dealer or local power company. For products
intended to operate from battery power, or other sources,
refer to the operating instructions.
11.GROUNDING OR POLARIZATION
This product is equipped with a polarized alternating-current
line plug (a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug should still fail to
fit, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
1
21. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
22. DAMAGE REQUIRING SERVICE
Unplug the product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen
into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions, as an adjustment of
other controls may result in damage and will often require
extensive work by a qualified technician to
restore the product to its normal operation.
e. If the product has been dropped or the cabinet
has been damaged.
f. When the product exhibits a distinct change in
performance–this indicates a need for service.
23. HEAT
The product should be situated away from heat sources
such as radiators, heat registers, stoves or other products
(including amplifiers) that produce heat.
24. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's
attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
PRECAUTIONS
NOTES ON MOISTURE CONDENSATION:
Moisture condensation damages the DVD
player. Please read the following carefully.
• Moisture condensation occurs, for example,
when you pour a cold drink into a glass on a
warm day. Drops of water form on the outside of
the glass. In the same way, moisture may
condense on the optical pick-up lens inside this
unit, one of the most crucial internal parts of the
DVD player.
Moisture condensation occurs during the
following cases:
• When you bring the DVD player directly from a
cold place to a warm place.
• When you use the DVD player in a room where
you just turned on the heater, or a place where
the cold wind from the air conditioner directly hits
the unit.
• In summer, when you use the DVD player in a
hot and humid place just after you moved the
unit from an air conditioned room.
• When you use the DVD player in a humid place.
Do not use the DVD player when moisture
condensation may occur.
• If you use the DVD player in such a situation, it
may damage discs and internal parts. Remove
the disc, connect the power cord of the DVD
player to the wall outlet, turn on the DVD player
and leave it "ON" for two or three hours. After two
or three hours, the DVD player will have warmed
up and evaporated any moisture. Keep the DVD
player connected to the wall outlet and moisture
condensation will seldom occur.
TO OBTAIN A CLEAR PICTURE:
The DVD player is a high technology, precision
device. If the optical pick-up lens and disc drive
parts are dirty or worn down, the picture quality
becomes poor. To obtain a clear picture, we
recommend regular inspection and maintenance
(cleaning or parts replacement) every 1,000 hours
of use depending on the operating environment.
For details, contact your nearest dealer.
POWER SOURCE
AC Outlet
AC Plug
NOTES:
• When there is an obstacle
between the DVD and the
transmitter, the transmitter
may not operate.
• When direct sunlight, an
incandescent lamp,
20ft fluorescent lamp or any
other strong light shines on
45 45
the REMOTE SENSOR of
the DVD, the remote
operation may be unstable.
1 2 3
4 5 6
7 8 9
0/10 10+
