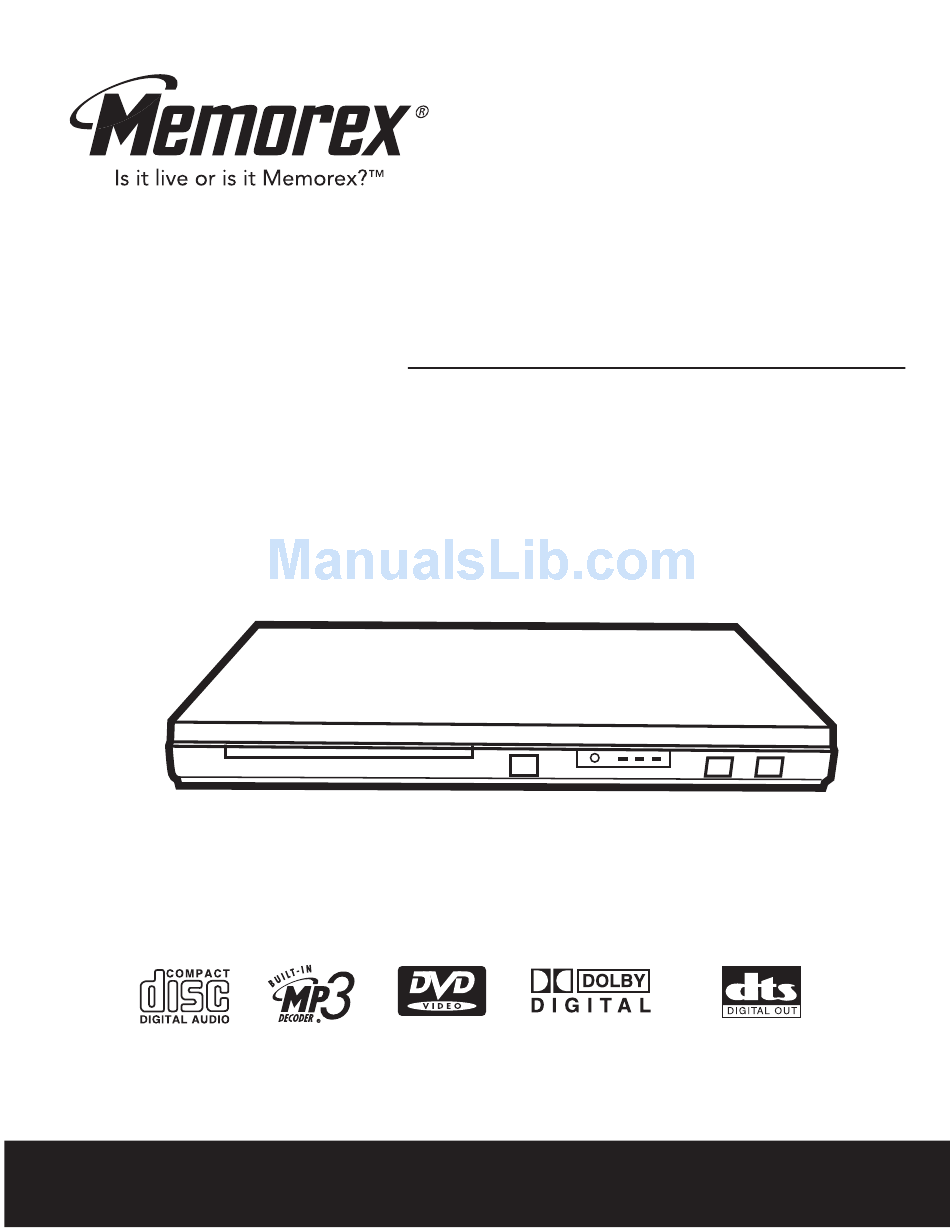

- Page 1 MVD2022 User’s Guide DVD/VCD/MP3/PHOTO CD Player Before operating this product, please read these instructions completely.
-
Page 2: Table Of Contents
Contents...1 Important Safety Instructions ...2 Precautions...5 Power Source ...5 Location of Controls ...6 • Front...6 • Rear ...6 • Remote ...7 Remote Control ...8 • Battery Installation ...8 • Effective Distance of the Remote Control Transmitter ...8 Connection...9 • Connecting the DVD to a TV Using the Audio/Video Output Jacks ...9 •... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: THIS DIGITAL VIDEO DISC PLAYER EMPLOYS A LASER SYSTEM. - Page 4 PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR TO MEMOREX. Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS (CONTINUED) should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 15. OVERLOADING Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 16.
-
Page 6: Precautions
NOTES ON HANDLING: • When shipping the DVD player, always use the original shipping carton and packing materials. For maximum protection, repack the unit as it was originally packed at the factory. • Do not use volatile liquids, such as insect spray, near the DVD player. -
Page 7: Location Of Controls
FRONT 1. Disc Tray 2. OPEN/CLOSE Button 3. Remote Sensor 4. Remote Receive Indicator 5. STANDBY Indicator 6. POWER ON Indicator 7. STANDBY/STOP Button To return to the Standby mode while the unit is on, press and hold the STANDBY/STOP button for two seconds then release;... -
Page 8: Remote
LOCATION OF CONTROLS (CONTINUED) REMOTE 1. DISPLAY Button 2. MUTE Button 3. REPEAT Button 4. RANDOM Button 5. SLOW/F Button 6. SLOW/R Button 7. PLAY (‹ ‹ ) Button 8. PAUSE/STEP Button 9. SKIP (o ) Button 10. Navigation (œ) Button 11. -
Page 9: Remote Control
BATTERY INSTALLATION – – Follow these precautions when using batteries in this device: 1. Use only the size and type of batteries specified. 2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery compartment. Reversed batteries may cause damage to the device. -
Page 10: Connection
CONNECTING THE DVD TO A TV USING THE AUDIO/VIDEO OUTPUT JACKS CONNECTING THE DVD TO A TV USING THE S-VIDEO OUTPUT JACK NOTES FOR CONNECTING TO A TV: • If your TV has a component input, connect the DVD player with the component cable for best results, otherwise use the S-Video or Video Out jack on the DVD player. -
Page 11: Connecting The Dvd To A Tv Using The Y/P B /P R Jacks
CONNECTING THE DVD TO A TV USING THE Y/P NOTES FOR CONNECTING TO A TV: • TV must have Y, P and P input jacks. • Set the TV’s TV/VIDEO button or switch to the VIDEO setting. • When connecting the DVD, refer to the owner’s manual of the TV, as well as this manual. •... -
Page 12: Connecting The Dvd To A Home Theatre System
CONNECTING THE DVD TO A HOME THEATRE SYSTEM From Coaxial OUT From Coaxial Cable (Not Included) Video OUT Video Cable (Included) 1. Front Left Speaker 2. Television 3. Center Speaker-can be located on top or below the Television. 4. Sub-woofer-can be located anywhere in the room. 5. -
Page 13: About Discs
ABOUT DISCS The region number for this DVD Player is: See the following page for information regarding region numbers. PLAYABLE DISCS: The following discs can be played back on this DVD player: KODAK PICTURE CD VIDEO When playing an MP3, the TV screen will list the folders/tracks. MP3 is the abbreviation of “MPEG1 Audio Layer 3”. - Page 14 ABOUT DISCS (CONTINUED) Notes on Copyright: It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public and rent copyrighted material without permission. DVD video discs are copy protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by method claims of certain U.S.
-
Page 15: Setup Menu
The setup menu lets you customize the DVD player by allowing you to select various language preferences, set up a parental level, turn captions and screen saver on and off, adjust what type of television screen you have and more. Below, find the menu, and then find the corresponding page that describes the features of the selected menu option. -
Page 16: General Setup Menu
GENERAL SETUP MENU: Select GENERAL SETUP in the SETUP MENU and then select the desired option using the Navigation (¦,‹,œ,ƒ) buttons to navigate through the menus/screens and press the ENTER button to select. TV DISPLAY - - GENERAL SETUP PAGE - - TV DISPLAY NORMAL/PS TV TYPE... -
Page 17: Speaker Setup Menu
SPEAKER SETUP MENU: Select SPEAKER SETUP in the SETUP MENU and then select the desired option using the Navigation (¦,‹,œ,ƒ) buttons to navigate through the menus/screens and press the ENTER button to select. DOWNMIX Sets the Audio Output mode. - - SPEAKER SETUP PAGE - - DOWNMIX LT/RT STEREO... -
Page 18: Preferences Menu
PREFERENCE MENU (this menu cannot be accessed if a disc is inserted): Select PREFERENCES in the SETUP MENU and then select the desired option using the Navigation (¦,‹,œ,ƒ) buttons to navigate through the menus/screens and press the ENTER button to select. AUDIO - - PREFERENCES PAGE - - AUDIO... -
Page 19: Parental
PARENTAL The Parental option enables parents to prevent their children from watching inappropriate material on a DVD. It reads the ratings for programming, then denies access to programming if the program’s rating meets the limitations you select. In this case, the user will have to enter a password. - - PREFERENCES PAGE - - AUDIO SUBTITLE... -
Page 20: Basic Operation
When “ ” appears while pressing a button, this means that the corresponding function cannot be performed either on the disc inserted, or in the selected AUDIO MODE (AUDIO CD/VCD/MP3 ONLY) While playing an audio CD (not a DVD), you can cycle between the audio modes as follows: Press the AUDIO MODE button to cycle through the audio modes. -
Page 21: Dvd Basic Operation
IMPORTANT NOTES: • After plugging in, the unit will be in the Standby mode (the Standby indicator will be lit). Press the STANDBY ON/OFF button on the main unit or the remote to turn on the unit. • “ ” will appear on the TV screen during operation if you try to access a function that is not available on the disc. •... -
Page 22: Skip
DVD BASIC OPERATION (CONTINUED) SKIP Press the Skip ( ) button ‚ to advance the DVD to the beginning of the next chapter. Press the Skip ( ) button ƒ to move the DVD to the beginning of the previous chapter. SLOW/R AND SLOW/F Use this feature to move the DVD in slow motion. -
Page 23: Title/Chapter Search
DVD BASIC OPERATION (CONTINUED) TITLE/CHAPTER SEARCH Use this feature to directly go to a specific title and/or chapter. Press the SEARCH button ‚ once. Press the Navigation (¦,‹) buttons ƒ to select the Title, then use the Number buttons „ to select the desired title number (i.e. for number 5, press “0”, “5”). -
Page 24: Audio Menu
DVD BASIC OPERATION (CONTINUED) AUDIO MENU Press the AUDIO MENU button repeatedly to change the audio language. This feature is not available on all discs. DVD MENU Press the DVD MENU button ‚, and the Main Menu of the disc will appear. Use the Navigation (¦,‹,œ,ƒ) buttons ƒ to select the desired option, and then press the ENTER button „. -
Page 25: Mp3 Basic Operation
PLAYBACK OF AN MP3 CD Press the STANDBY ON/OFF button to turn on the unit; the STANDBY indicator will go out and the POWER ON indicator will light. Press the OPEN/CLOSE button ‚ to close the disc tray. “CLOSE” will appear on the screen and the display. After loading, the FOLDER/TRACK menu will appear on the TV screen. -
Page 26: Selecting Folders/Tracks Using The Skip
MP3 BASIC OPERATION (CONTINUED) SELECTING FOLDERS/TRACKS USING THE SKIP ( ) OR ( ) BUTTON During playback, simply press the ( select a track to be played. FORWARD‹‹/REVERSE ¦¦¤ Each press of the SEARCH ‹‹ or ¦¦¤ button ‚ will increase the search as follows: 1st press: 2nd press:... -
Page 27: Cd/Vcd Basic Operation
PLAYBACK OF A CD/VCD Press the STANDBY ON/OFF button to turn on the unit; the STANDBY indicator will go out and the POWER ON indicator will light. Press the OPEN/CLOSE button to close the disc tray. “CLOSE” will appear on the screen. After loading, playback will start automatically. -
Page 28: Forward/Reverse
CD/VCD BASIC OPERATION (CONTINUED) FORWARD‹‹/REVERSE ¦¦¤ Each press of the SEARCH ‹‹ or ¦¦¤ button ‚ will increase the search as follows: 1st press: 2nd press: 3rd press: 4th press: x 16 5th press: Resume Normal Playback Press the PLAY (‹) button ƒ to resume normal playback. NOTE: Reverse Search (¦¦) is not available during playback of a VCD. -
Page 29: Pbc (Vcd Only)
CD/VCD BASIC OPERATION (CONTINUED) PBC (VCD ONLY) When playing a VCD with PBC function, you can enjoy simple interactive software on your TV. The PBC Function will activate automatically if the VCD has this function. To turn off the PBC, press the PBC button ‚ once. Press the Skip ( ) button ƒ... -
Page 30: Picture Cd Basic Operation
Press the STANDBY ON/OFF button to turn on the unit; the STANDBY indicator will go out and the POWER ON indicator will light. Press the OPEN/CLOSE button ‚ to close the disc tray. “LOADING” will appear on the TV screen. After loading, the picture will automatically show on the TV screen. -
Page 31: Troubleshooting Guide
Check the following before requesting service: SYMPTOM GENERAL No power. Power on, but unit not functioning properly. No picture. No sound. Playback picture rolls. The playback picture is poor. The Search feature is not working. The picture is not fitting properly. The remote control is not working. - Page 32 WWW.MEMOREXELECTRONICS.COM OR CONTACT CUSTOMER SERVICE AT PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993.
-
Page 33: Care And Maintenance
Caring for Discs • Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the disc. • Do not attach adhesive tape, stickers, etc. to the disc label. •... -
Page 34: Specifications
Power Requirements...AC120V, 60Hz Power Consumption...<15W (approx. 5W when set to Standby mode by remote) Weight...3.2 Lbs Dimensions...14-1/8 (L) x 8 (W) x 1-7/8 (H) inches Weight and dimensions are approximate. Signal System ...NTSC/PAL Operating Temperature ...+5° to +35°C Operating Humidity Range...5% to 90% (no condensation) Discs Played: DVD-VIDEO Disc 12cm single-sided, single layer... - Page 35 Memcorp, Inc. Weston, FL Printed in Hong Kong Visit our website at www.memorexelectronics.com...
