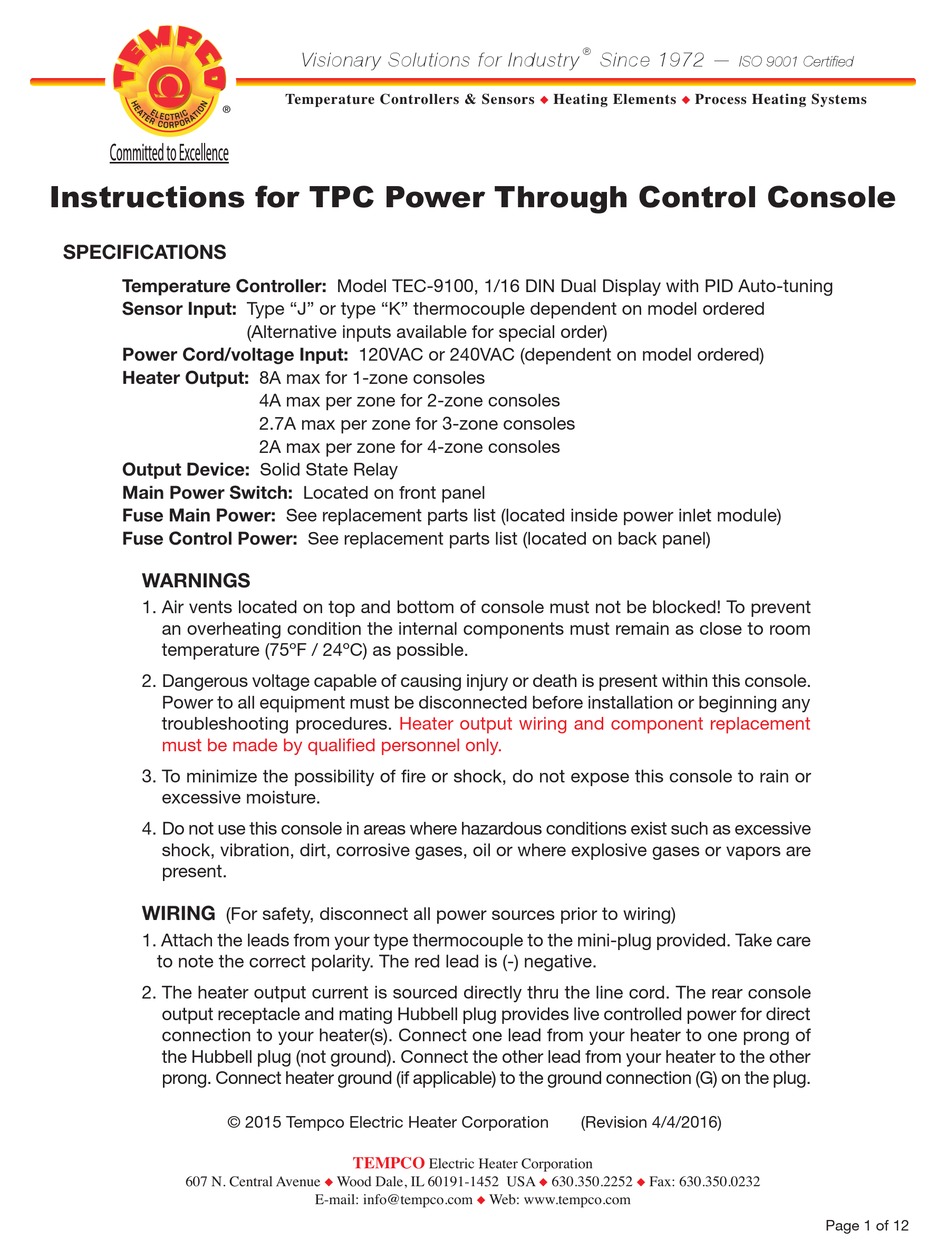

Instructions for TPC Power Through Control Console
SPECIFICATIONS

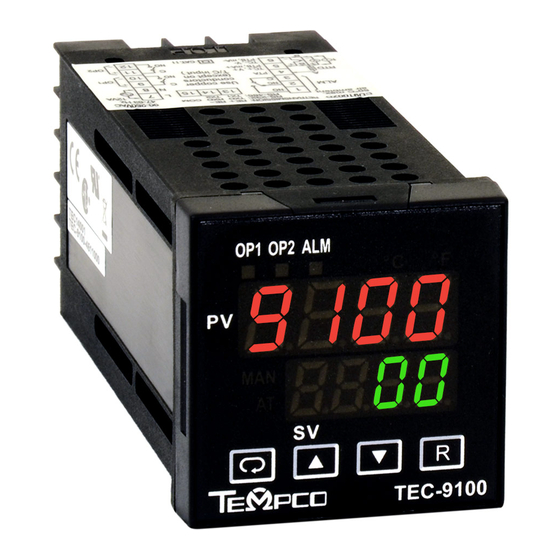

Temperature Controller: Model TEC-9100, 1/16 DIN Dual Display with PID Auto-tuning
Sensor Input: Type "J" or type "K" thermocouple dependent on model ordered
Power Cord/voltage Input: 120VAC or 240VAC (dependent on model ordered)
Heater Output: 8A max for 1-zone consoles
Output Device: Solid State Relay
Main Power Switch: Located on front panel
Fuse Main Power: See replacement parts list (located inside power inlet module)
Fuse Control Power: See replacement parts list (located on back panel)
WARNINGS
1. Air vents located on top and bottom of console must not be blocked! To prevent
an overheating condition the internal components must remain as close to room
temperature (75ºF / 24ºC) as possible.
2. Dangerous voltage capable of causing injury or death is present within this console.
Power to all equipment must be disconnected before installation or beginning any
troubleshooting procedures.
must be made by qualified personnel only.
3. To minimize the possibility of fire or shock, do not expose this console to rain or
excessive moisture.
4. Do not use this console in areas where hazardous conditions exist such as excessive
shock, vibration, dirt, corrosive gases, oil or where explosive gases or vapors are
present.
WIRING
(For safety, disconnect all power sources prior to wiring)
1. Attach the leads from your type thermocouple to the mini-plug provided. Take care
to note the correct polarity. The red lead is (-) negative.
2. The heater output current is sourced directly thru the line cord. The rear console
output receptacle and mating Hubbell plug provides live controlled power for direct
connection to your heater(s). Connect one lead from your heater to one prong of
the Hubbell plug (not ground). Connect the other lead from your heater to the other
prong. Connect heater ground (if applicable) to the ground connection (G) on the plug.
607 N. Central Avenue
Visionary Solutions for Industry
Temperature Controllers & Sensors
(Alternative inputs available for special order)
4A max per zone for 2-zone consoles
2.7A max per zone for 3-zone consoles
2A max per zone for 4-zone consoles
Heater output wiring and component replacement
© 2015 Tempco Electric Heater Corporation
TEMPCO
Wood Dale, IL 60191-1452 USA
E-mail: info@tempco.com
®
Since 1972 —
Heating Elements
(Revision 4/4/2016)
Electric Heater Corporation
630.350.2252
Web: www.tempco.com
ISO 9001 Certified
Process Heating Systems
Fax: 630.350.0232
Page 1 of 12
