Spektrum DX6R Manual

en
noTice
All instructions, warranties and other collateral documents • A lways ensure all batteries have been properly charged
are subject to change at the sole discretion of Horizon prior to using the model.
Hobby, LLC. For up-to-date product literature, visit • A lways check all servos and their connections prior to
horizonhobby.com and click on the support tab for this each run.
product. • N ever operate your model near spectators, parking
areas or any other area that could result in injury to
meaning of special Language
people or damage of property.
• N ever operate your model during adverse weather
The following terms are used throughout the product
conditions. Poor visibility can cause disorientation and
literature to indicate various levels of potential harm when
loss of control of your model.
operating this product:
• N ever point the transmitter antenna directly toward the
noTice: Procedures, which if not properly followed, create
model. The radiation pattern from the tip of the antenna
a possibility of physical property damage AND a little or no
is inherently low.
possibility of injury.
• I f at any time during the operation of your model you
cauTion: Procedures, which if not properly followed, create observe any erratic or abnormal operation, immediately
stop operation of your model until the cause of the
the probability of physical property damage AND a possibility
problem has been ascertained and corrected.
of serious injury.
Warning: Procedures, which if not properly followed,
create the probability of property damage, collateral
damage, and serious injury OR create a high probability of
superficial injury.
Warning: Read the ENTIRE instruction manual • F ailure to exercise caution while using this product
to become familiar with the features of the product and comply with the following warnings could result in
before operating. Failure to operate the product product malfunction, electrical issues, excessive heat,
correctly can result in damage to the product, FIRE, and ultimately injury and property damage.
personal property and cause serious injury. • R ead all safety precautions and literature prior to use
of this product
This is a sophisticated hobby product. It must be oper-
• N ever allow minors to charge battery packs
ated with caution and common sense and requires
• N ever drop charger or batteries
some basic mechanical ability. Failure to operate this
• N ever attempt to charge damaged batteries
Product in a safe and responsible manner could result
• N ever attempt to charge a battery pack containing
in injury or damage to the product or other property.
different types of batteries
This product is not intended for use by children without
• N ever charge a battery if the cable has been pinched
direct adult supervision. Do not attempt disassembly,
or shorted
use with incompatible components or augment product
• N ever allow batteries or battery packs to come into
in any way without the approval of Horizon Hobby, LLC.
contact with moisture at any time
This manual contains instructions for safety, operation
• N ever charge batteries in extremely hot or cold places
and maintenance. It is essential to read and follow all
(recommended between 50–80˚ F or 10–27˚ C) or
the instructions and warnings in the manual, prior to
place in direct sunlight
assembly, setup or use, in order to operate correctly and
• A lways disconnect the transmitter after charging, and
avoid damage or serious injury.
let the charger cool between charges
• A lways inspect a new battery before charging
age recommendation: not for children under 14.
• A lways terminate all processes and contact Horizon
This is not a toy.
Hobby if the product malfunctions
noTice: This product is only intended for use with unmanned, • A lways keep batteries and charger away from any
hobby-grade, remote-controlled vehicles and aircraft. Horizon material that could be affected by heat (such as
Hobby disclaims all liability outside of the intended purpose
ceramic and tile), as they can get hot
and will not provide warranty service related thereto.
• A lways end the charging process if the charger or
battery becomes hot to the touch or starts to change
WarranTY regisTraTion
form (swell) during the charge process
Visit www.spektrumrc.com/registration today to register your
product.

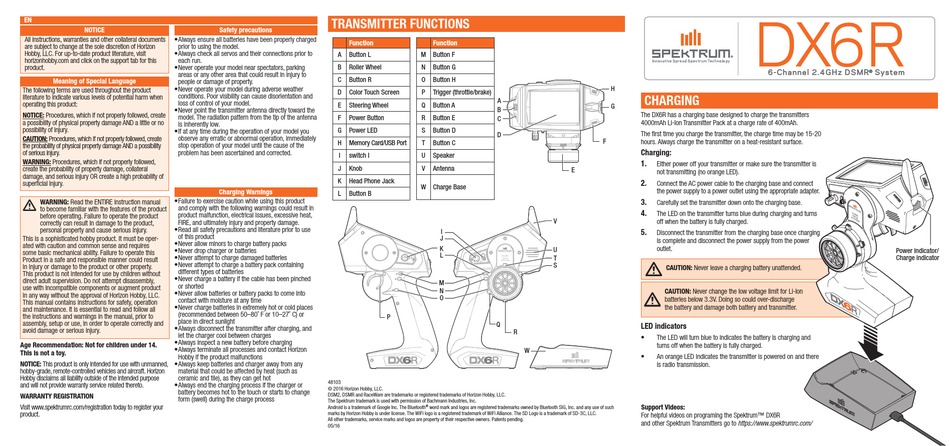

TransmiTTer FuncTions
safety precautions
Function
A Button L
B Roller Wheel
C Button R
D Color Touch Screen
E Steering Wheel
F Power Button
G Power LED
H Memory Card/USB Port
I switch I
J Knob
K Head Phone Jack
charging Warnings
L Button B
P
48103
© 2016 Horizon Hobby, LLC.
DSM2, DSMR and RaceWare are trademarks or registered trademarks of Horizon Hobby, LLC.
The Spektrum trademark is used with permission of Bachmann Industries, Inc.
Android is a trademark of Google Inc. The Bluetooth
marks by Horizon Hobby is under license. The WiFi logo is a registered trademark of WiFi Alliance. The SD Logo is a trademark of SD-3C, LLC.
All other trademarks, service marks and logos are property of their respective owners. Patents pending.
05/16
Function
M Button F
N Button G
O Button H
P Trigger (throttle/brake)
A
Q Button A
B
R Button E
C
S Button D
D
T Button C
U Speaker
V Antenna
E
W Charge Base
V
I
J
K
U
L
T
S
M
N
O
Q
R
W
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
®

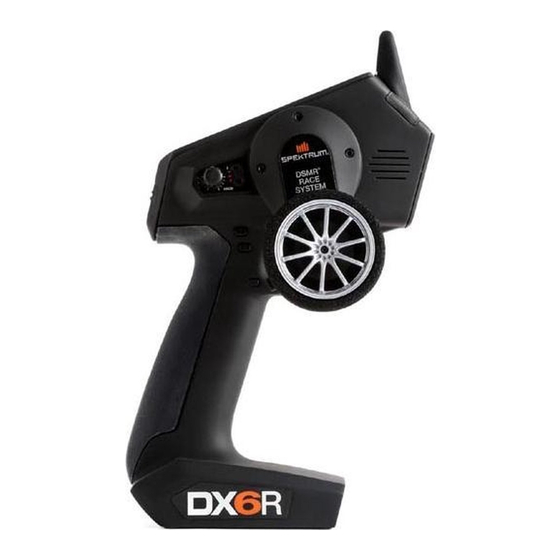

DX6R DX6R
6-Channe l 2.4GHz DSMR 6-Channel 2. 4GHz DSM R
H
charging
G
The DX6R has a charging base designed to charge the transmitters
4000mAh Li-Ion Transmitter Pack at a charge rate of 400mAh.
The first time you charge the transmitter, the charge time may be 15-20
F
hours. Always charge the transmitter on a heat-resistant surface.
charging:
1.
Either power off your transmitter or make sure the transmitter is
not transmitting (no orange LED).
2.
Connect the AC power cable to the charging base and connect
the power supply to a power outlet using the appropriate adapter.
3.
Carefully set the transmitter down onto the charging base.
4.
The LED on the transmitter turns blue during charging and turns
off when the battery is fully charged.
5.
Disconnect the transmitter from the charging base once charging
is complete and disconnect the power supply from the power
outlet.
cauTion: Never leave a charging battery unattended.
cauTion: Never change the low voltage limit for Li-Ion
batteries below 3.3V. Doing so could over-discharge
the battery and damage both battery and transmitter.
LeD indicators
• The LED will turn blue to indicates the battery is charging and
turns off when the battery is fully charged.
• An orange LED indicates the transmitter is powered on and there
is radio transmission.
support Videos:
For helpful videos on programing the Spektrum™ DX6R
and other Spektrum Transmitters go to https://www.spektrumrc.com/
Sy s tem Sy s tem
® ®
Power indicator/
Charge indicator
