RocketFish RF-TVMLPT01 Quick Setup Manual

QUICK SETUP GUIDE
RF-TVMLPT01
Thank you for choosing the
Rocketfish RF-TVMLPT01.
The RF-TVMLPT01 TV mount
is designed to support
a TV weighing up to
50 lbs. (22.7 kg).

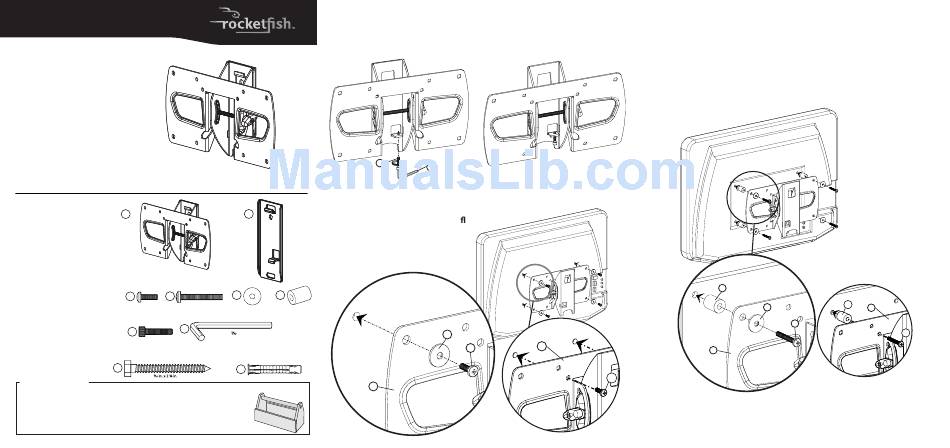

Package contents
A TV bracket (1)
A
B Wall plate (1)
M4 bag
C M4 x 12 mm screws (4)
D M4 x 30 mm screws (4)
E M4 washers (4)
F M4 spacers (4)
M4 bag
C D
Miscellaneous bag
M4 x 30mm
G Locking screw (1) M4 x 12mm
H 5/32 in. hex key (1)
Miscellaneous bag
H
G
Lag bolt bag
I 5/16 in. x 2¾ in. lag bolts (2)
J Concrete anchors (2)
Lag bolt bag
I
Tools you will need:
• Stud finder • Hammer (Concrete Only) • 3/8 in. masonry
• Awl • Tape measure drill bit(Concrete Only)
• Level • Power drill • Socket wrench with ½ in. socket
• Pencil
• 3/16 in. wood drill bit or adjustable wrench
• Phillips screwdriver
1 Install locking screw
Install the TV bracket locking screw (G) into the TV bracket (A) using the hex key (H).
Do not screw in more than three or four turns.
G
2 Attach the TV bracket
B
Option 1: If the back of the TV is at
Align the TV bracket (A) with the mounting screw holes
on the back of the TV. Place the washers (E) over
the screw holes on the TV bracket.
Note: If the hole pattern on your TV is 75 mm x 75 mm,
do not use the washers. Insert the screws (C) though
the screw holes and tighten.
With washers
E F
M4
M4
in.
J
A
H
Without washers
E
A
C
Option 2: If the back of the TV is curved or to make room for cables
Attach the TV bracket [A] to the back of the TV using the washers (E), the spacers (F), and the screws (D).
Note: If the hole pattern on your TV is 75mm x 75mm the washers(E) will not be used.
F
E
A
C
With washers
F
A
D
D
Without washers
