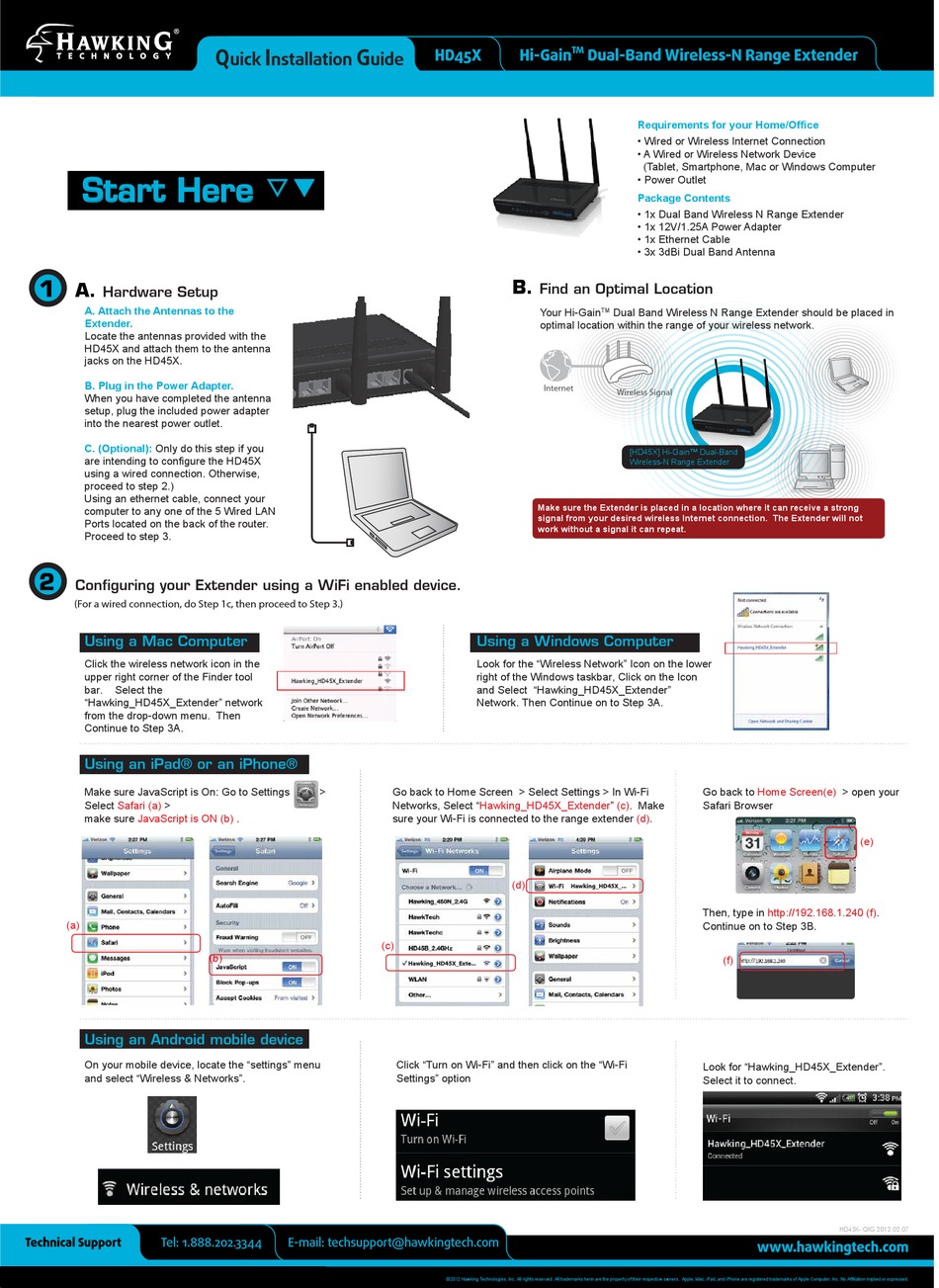

Hawking HD45X Quick Installation Manual

Start Here
1
A.
Hardware Setup
A. Attach the Antennas to the
Extender.
Locate the antennas provided with the
HD45X and attach them to the antenna
jacks on the HD45X.
B. Plug in the Power Adapter.
When you have completed the antenna
setup, plug the included power adapter
into the nearest power outlet.
C. (Optional): Only do this step if you
are intending to configure the HD45X
using a wired connection. Otherwise,
proceed to step 2.)
Using an ethernet cable, connect your
computer to any one of the 5 Wired LAN
Ports located on the back of the router.
Proceed to step 3.
2
Configuring your Extender using a WiFi enabled device.
(For a wired connection, do Step 1c, then proceed to Step 3.)
Using a Mac Computer
Click the wireless network icon in the
upper right corner of the Finder tool
bar. Select the
"Hawking_HD45X_Extender" network
from the drop-down menu. Then
Continue to Step 3A.
Using an iPad® or an iPhone®
Make sure JavaScript is On: Go to Settings
Select Safari (a) >
make sure JavaScript is ON (b)
(a)
Using an Android mobile device
On your mobile device, locate the "settings" menu
and select "Wireless & Networks".
Technical Support Tel: 1.888.202.3344
Q I G
uick nstallation uide
 
>
.
(c)
(b)
E-mail: techsupport@hawkingtech.com
HD45X Hi-Gain
B.
Find an Optimal Location
Your Hi-Gain
optimal location within the range of your wireless network.
Internet
Make sure the Extender is placed in a location where it can receive a strong
signal from your desired wireless Internet connection. The Extender will not
work without a signal it can repeat.
Using a Windows Computer
Look for the "Wireless Network" Icon on the lower
right of the Windows taskbar, Click on the Icon
and Select "Hawking_HD45X_Extender"
Network. Then Continue on to Step 3A.
Go back to Home Screen > Select Settings > In Wi-Fi
Networks, Select "Hawking_HD45X_Extender" (c). Make
sure your Wi-Fi is connected to the range extender (d).
(d)
Hawking_HD45X_Exte...
Click "Turn on Wi-Fi" and then click on the "Wi-Fi
Settings" option
© 2012 Hawking Technologies, Inc. All rights reserved. All trademarks herin are the property of their respective owners. Apple, Mac, iPad, and iPhone are registered trademarks of Apple Computer, Inc. No Affiliation implied or expressed.
TM
Dual-Band Wireless-N Range Extender
Requirements for your Home/Office
• Wired or Wireless Internet Connection
• A Wired or Wireless Network Device
(Tablet, Smartphone, Mac or Windows Computer
• Power Outlet
Package Contents
• 1x Dual Band Wireless N Range Extender
• 1x 12V/1.25A Power Adapter
• 1x Ethernet Cable
• 3x 3dBi Dual Band Antenna
Dual Band Wireless N Range Extender should be placed in
TM
Wireless Signal
[HD45X] Hi-Gain™ Dual-Band
Wireless-N Range Extender
Go back to
Safari Browser
Hawking_HD45X_...
Then, type in
Continue on to Step 3B.
(f)
Look for "Hawking_HD45X_Extender".
Select it to connect.
Home Screen(e) > open your
(e)
http://192.168.1.240 (f).
HD45X- QIG 2012.02.07
