Royal PT-300 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

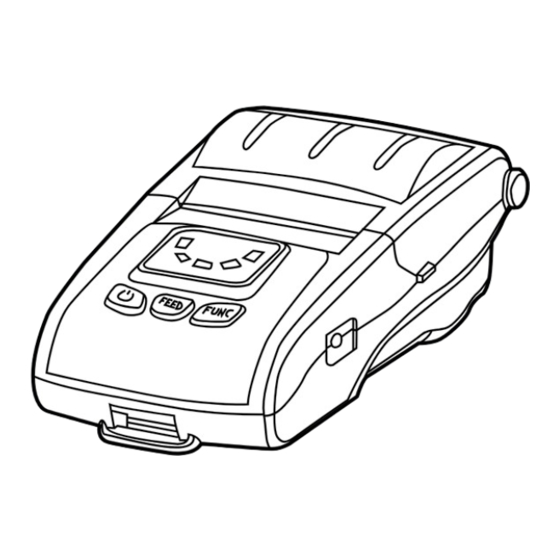

Thermal Printer
PT-300
USER
MANUAL

Advertisement

Table of Contents
loading

Summary of Contents for Royal PT-300

  • Page 1 Thermal Printer PT-300 USER MANUAL...
  • Page 2 Please contact the ROYAL CONSUMER PRODUCT SUPPORT HOTLINE for operational assistance and problem resolution. Call toll-free. Customer Service: 1-800-832-6522 (USA) 52-559-138-3300 (in Mexico) Monday through Friday during normal business hours. To Order Supplies: 1-888-261-4555...

  • Page 3: Table Of Contents

    INDEX \\ INTRODUCTION Safety warning Safety notice Unpacking Printer parts \\ MAIN FEATURES Technical specifications \\ SET UP Battery installation Paper roll installation Battery charging Indicator, beeper and buttons \\ DRIVER / APP BLUETOOTH WIFI \\ FIRMWARE \\ PARTS LIST Paper Roll Battery...

  • Page 4: Introduction

    Please save this manual for future reference. In order to maintain a high print quality and extend the life of the product, we recommend using ROYAL brand 2 1/4” (57mm) thermal paper roll, Part # 013127.

  • Page 5: Unpacking

    ROYAL Thermal Printer PT-300 Unpacking After unpacking the unit, please check that all the necessary accessories are included in the package. • 1X User’s manual • 1X Printer • 1X Lithium battery • 1X USB cable • 1X Power adapter...

  • Page 6: Main Features

    ROYAL Thermal Printer PT-300 MAIN FEATURES • Streamlined design: Small and lightweight • Auto paper loading structure, easy to use and maintain • High print quality • Low-noise and high-speed printing • Low power consumption • Low operating costs (no ribbons, ink cartridges): thermal printing...

  • Page 7: Set Up

    Pull the edge of the paper 5mm through the outside of the slot. Close the top cover. NOTE: In order to maintain a high print quality and extend the life of the device, we recommend using ROYAL brand 2 1/4” (57mm) paper roll, Part # 013127.

  • Page 8: Battery Charging

    ROYAL Thermal Printer PT-300 Battery charging Turn off the printer power. Plug the supplied power adapter into the printer’s power input socket and connect the adapter to an AC outlet. Turn on the printer power. The battery will start to charge.

  • Page 9: Indicator, Beeper And Buttons

    ROYAL Thermal Printer PT-300 Indicator, beeper and buttons ERROR Indicator BATTERY STATUS STATUS Indicator (Blue) Beeper Status (Red) Indicator (Green) Printer power off. Printer power on, but Blinking out of paper. Printer is powered on and in normal print mode.

  • Page 10: Driver / App

    Speed 9600 bps When finished, press the “SELF-CHECK” button. A notice ask- FIELD INFO ing if you would allow the Royal system’s app to access the USB 2"/57mm Thermal Device USB device will appear. Answer “OK” . Bluetooth Printer (the BLUETOOTH NAME of the...

  • Page 11: Bluetooth

    ROYAL Thermal Printer PT-300 BLUETOOTH Android / iOS To set up the printer through Royal POS software follow the next steps: Connect the PT-300 to the hardware. If you are using an android device, go to Settings/Wireless & Networks/ Bluetooth from the Main menu. If you are using an iOS device, go to Settings/Bluetooth.

  • Page 12: Wifi

    ROYAL Thermal Printer PT-300 WIFI Android To change the IP via the Royal PT-300 App: a. Download the Royal PT-300 App from Google Play and install it. b. Connect the POS to the printer though the Wi-Fi interface. c. Open the Royal PT-300 App and enter “Connect to printer”...
  • Page 13 2. Connect the printer to the POS (these steps depend on what FIELD INFO software you are using. In this example, we will describe how to connect the PT-300 to the Royal POS software). Device USB 2"/57mm Thermal Printer Port Vendor Gprinter Go to Setup/Peripherals from the Main menu.
  • Page 14 Connect the POS to the printer though the Wi-Fi interface. c. Open the Royal PT-300 App and enter the ip address and port of the printer. Then click in “Connect” . NOTE: Check the interface information to see if you can print by pressing the “FUNC”...
  • Page 15 2. Connect the printer to the POS (these steps depend on what FIELD INFO software you are using. In this example, we will describe how to connect the PT-300 to the Royal POS software). Device USB 2"/57mm Thermal Printer Port Vendor Gprinter Go to Setup/Peripherals from the Main menu.

  • Page 16: Firmware

    ROYAL Thermal Printer PT-300 FIRMWARE PT-300 firmware can be upgraded, you have to download the driver from www.royal.com in section Support/Drivers and Manuals. PARTS LIST Paper Roll This printer uses a standard 2 ¼ inch (57mm) paper roll for customer receipts.
  • Page 17 ROYAL CONSUMER INFORMATION PRODUCTS, INC. (“Royal”), at 1160 U.S. Highway 22 East, Suite 301 Bridgewater, NJ 08807 USA WARRANTS that your NEW Product is free of defects of workmanship and materials. If there is a defect or malfunction of this product, Royal will repair it free of charge as follows:...
  • Page 18 Thermal Printer PT-300 PT-300 1-800-272-6229 {US} 1-800-832-6522 1-888-266-9380 {Canada} 01-800-849-4826 {Mexico}...
  • Page 19 FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER: CAUTION: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 20 Thermal Printer PT-300 Consumer Information Products, Inc. 1160 U.S. Highway 22 East Suite 301 © Copyright Bridgewater, NJ 08807 Royal Consumer Information Products, Inc. 2018, All Rights Reserved. Made in China...
