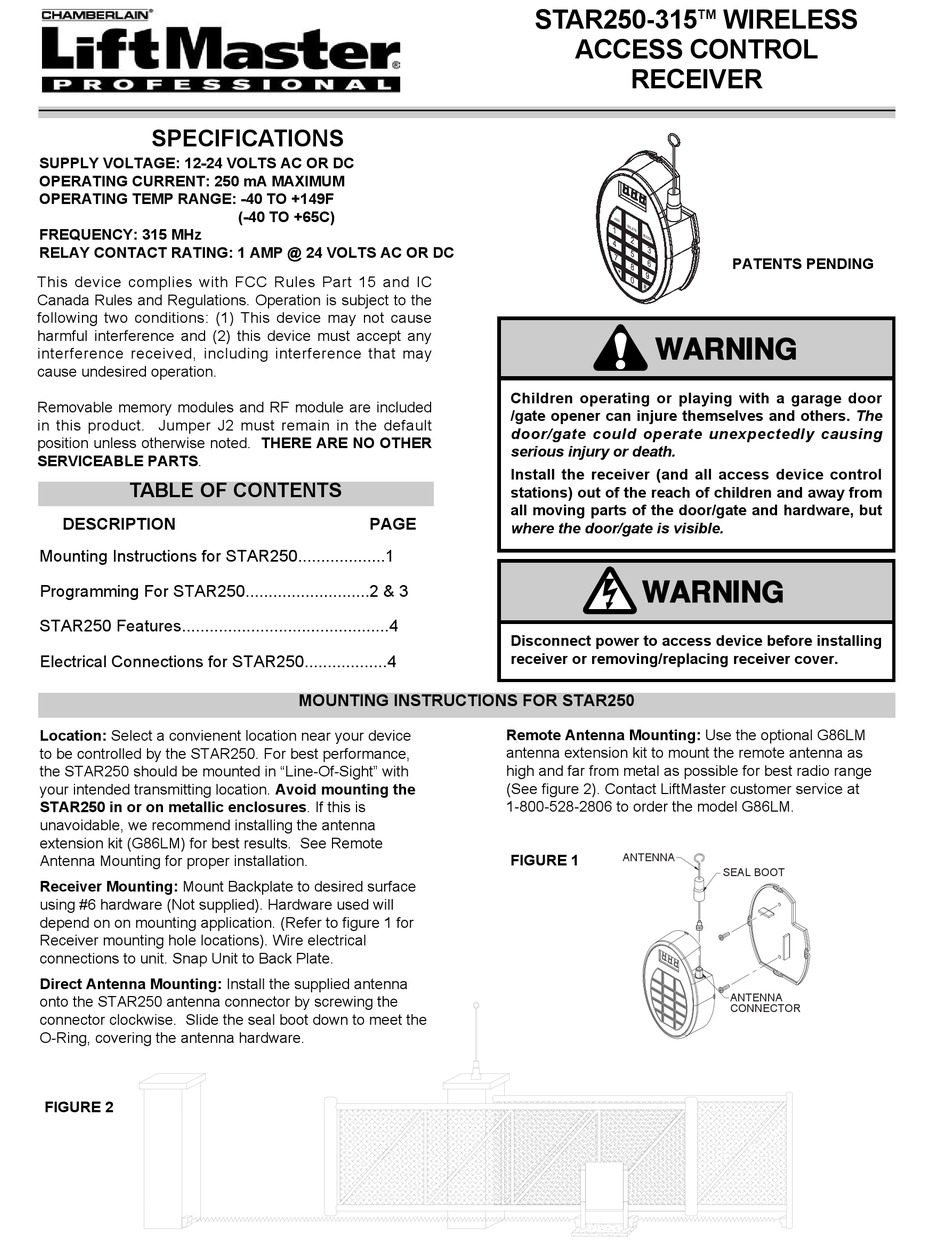

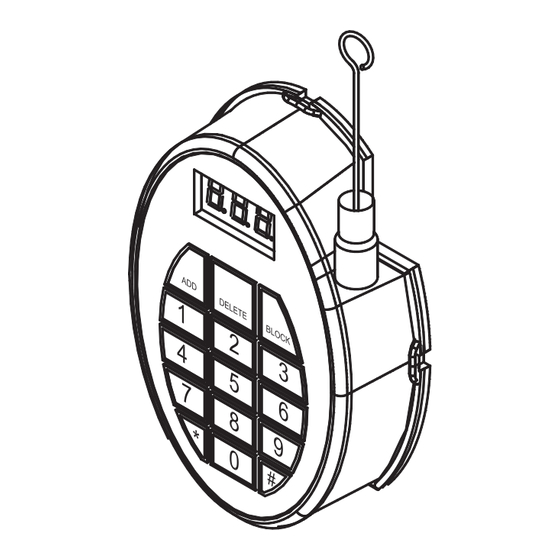

Chamberlain STAR 250 Manual

SPECIFICATIONS
SUPPLY VOLTAGE: 12-24 VOLTS AC OR DC
OPERATING CURRENT: 250 mA MAXIMUM
OPERATING TEMP RANGE: -40 TO +149F
FREQUENCY: 315 MHz
RELAY CONTACT RATING: 1 AMP @ 24 VOLTS AC OR DC
This device complies with FCC Rules Part 15 and IC
Canada Rules and Regulations. Operation is subject to the
following two conditions: (1) This device may not cause
harmful interference and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Removable memory modules and RF module are included
in this product. Jumper J2 must remain in the default
position unless otherwise noted. THERE ARE NO OTHER
SERVICEABLE PARTS.
TABLE OF CONTENTS
DESCRIPTION
Mounting Instructions for STAR250...................1
Programming For STAR250...........................2 & 3
STAR250 Features.............................................4
Electrical Connections for STAR250..................4
Location: Select a convienent location near your device
to be controlled by the STAR250. For best performance,
the STAR250 should be mounted in "Line-Of-Sight" with
your intended transmitting location. Avoid mounting the
STAR250 in or on metallic enclosures. If this is
unavoidable, we recommend installing the antenna
extension kit (G86LM) for best results. See Remote
Antenna Mounting for proper installation.
Receiver Mounting: Mount Backplate to desired surface
using #6 hardware (Not supplied). Hardware used will
depend on on mounting application. (Refer to figure 1 for
Receiver mounting hole locations). Wire electrical
connections to unit. Snap Unit to Back Plate.
Direct Antenna Mounting: Install the supplied antenna
onto the STAR250 antenna connector by screwing the
connector clockwise. Slide the seal boot down to meet the
O-Ring, covering the antenna hardware.
FIGURE 2
(-40 TO +65C)
PAGE
WARNING
MOUNTING INSTRUCTIONS FOR STAR250
CAUTION
STAR250-315
ACCESS CONTROL
RECEIVER
WARNING
Children operating or playing with a garage door
/gate opener can injure themselves and others. The
door/gate could operate unexpectedly causing
serious injury or death.
Install the receiver (and all access device control
stations) out of the reach of children and away from
all moving parts of the door/gate and hardware, but
CAUTION
where the door/gate is visible.
WARNING
Disconnect power to access device before installing
receiver or removing/replacing receiver cover.
Remote Antenna Mounting: Use the optional G86LM
antenna extension kit to mount the remote antenna as
high and far from metal as possible for best radio range
(See figure 2). Contact LiftMaster customer service at
1-800-528-2806 to order the model G86LM.
ANTENNA
FIGURE 1
SL590
WIRELESS
TM
PATENTS PENDING
WARNING
SEAL BOOT
ANTENNA
CONNECTOR
W
