MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the elliptical is used.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in.
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the dis-
played heart rate appears to be too high or too low, see
step 5 on page 19.

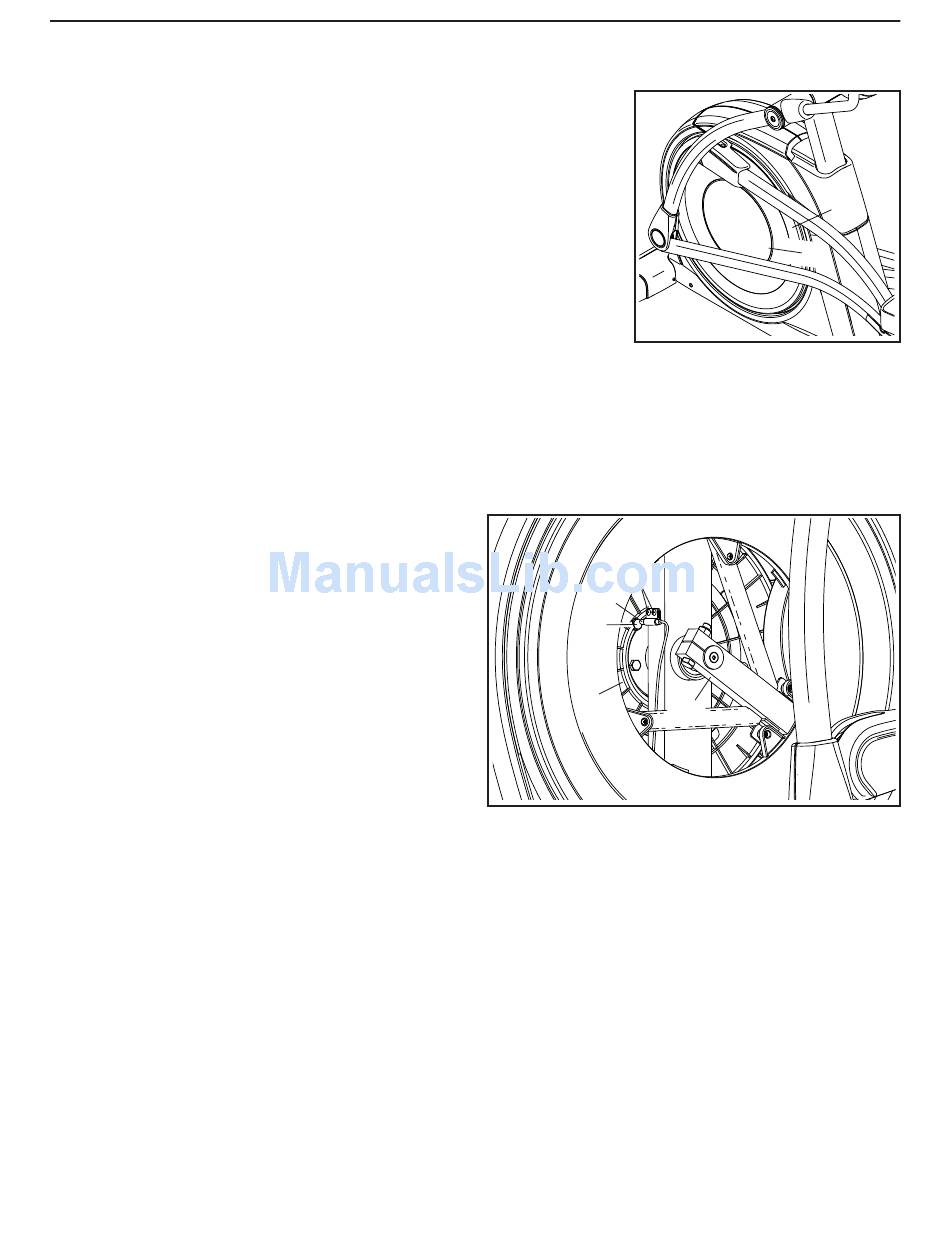

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first unplug the power cord.
Next, use
a standard
screwdriver
and carefully
pry the left
Disc Cover
(55) off the left
Disc (71).
Next, turn the left Crank Arm (20) until one of the
Magnets (43) on the Pulley (19) is aligned with the
Reed Switch (38). Then, loosen, but do not remove,
the two M4 x 16mm Screws (104), slide the Reed
Switch slightly closer to or away from the Magnet, and
retighten the Screws.
104
38
43
19
Then, plug in the power cord and turn the left crank
arm for a moment. Repeat the procedure above, if
necessary, until the console displays correct feedback.
Then, reattach the left disc.
25
71
55
20
