Rimage 360i

User Guide

This manual provides the information needed to operate the Rimage 360i and identify the parts.
To set up and install your Rimage 360i, refer to the Rimage 360i Setup and Installation Guide.

Advertisement

Table of Contents
loading

Related Manuals for Rimage 360i

Summary of Contents for Rimage 360i

  • Page 1: User Guide

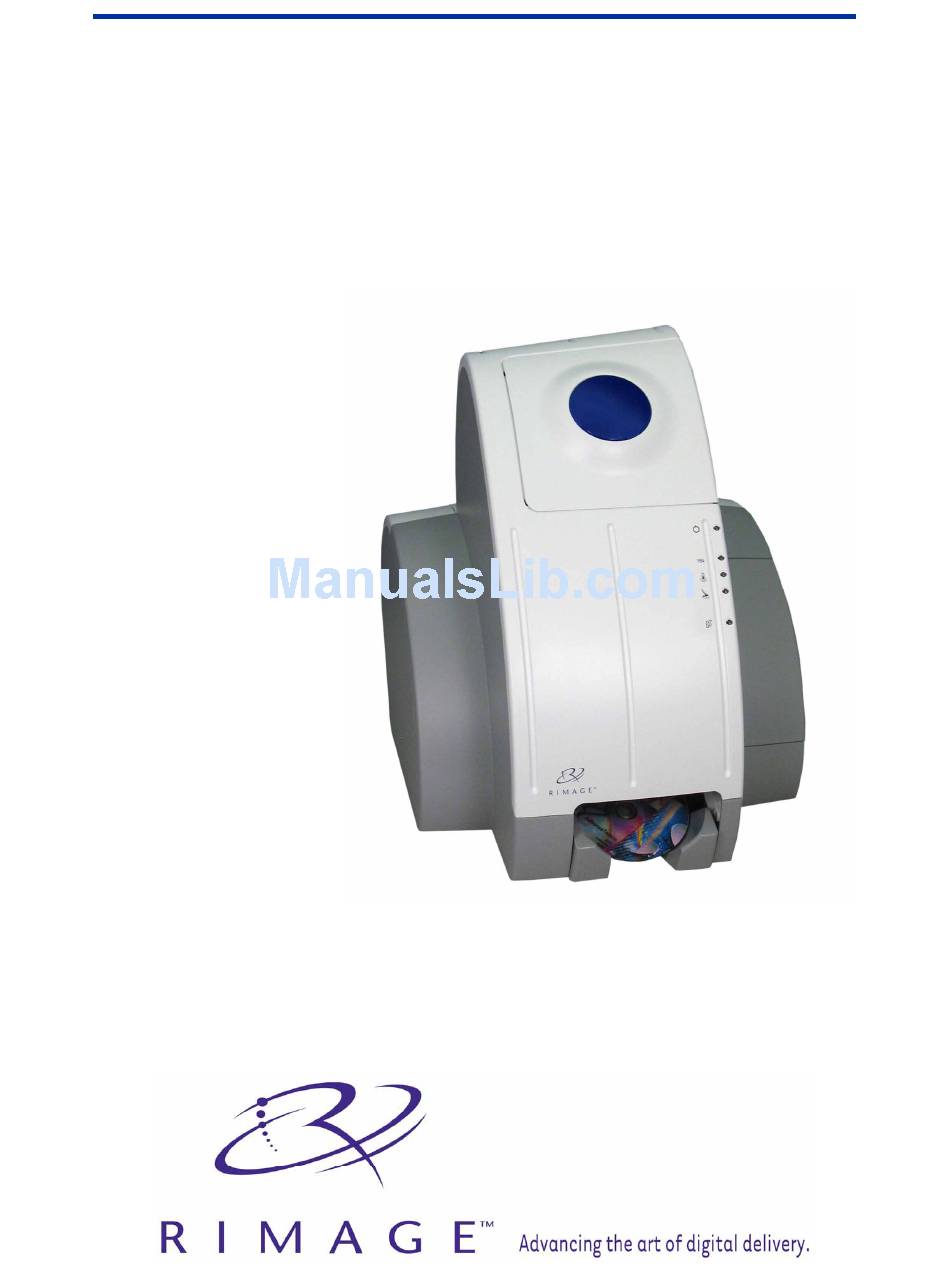

    ™ Rimage 360i User Guide This manual provides the information needed to operate the Rimage 360i and identify the parts. To set up and install your Rimage 360i, refer to the Rimage 360i Setup and Installation Guide.
  • Page 3 Rimage Corporation is not responsible for the content of any such third-party site. ©2005, Rimage Corporation Rimage™ is a trademark of the Rimage Corporation. 360i™ is a trademark of the Rimage Corporation. ® Dell is registered trademark of Dell Computer ®...

  • Page 4: Support Information

    Rimage 360i Support information For Rimage 360i™ Support, go to: www.rimage.com/Rimage360iSupport North America South America Asia/Pacific Rimage Corporation 7725 Washington Avenue South Minneapolis, MN 55439 Europe Africa Rimage Europe GmbH Hans-Böckler-Straße 7 63128 Dietzenbach, Germany...

  • Page 5: Table Of Contents

    Operating System requirements... 1 Media requirements... 1 Ink requirements... 1 Label design requirements ... 2 Identify the parts of the Rimage 360i ... 3 Front View ... 3 Rear view ... 6 Operate the Rimage 360i ... 7 Powering on the Rimage 360i ... 7 Pausing the Rimage 360i ...
  • Page 6 Rimage 360i...

  • Page 7: Introduction

    Introduction This manual provides the information needed to operate the Rimage 360i and identify the parts. To set up and install your Rimage 360i, refer to the Rimage 360i Setup and Installation Guide. Requirements Software requirements The Rimage 360i will operate only with the Rimage 360i Software.

  • Page 8: Label Design Requirements

    • Media – The media that is in Rimage Media Kits™ has a hub area of 23 mm and a printable area of 118 mm. On most labels, print settings of 24 mm and 118 mm are recommended.

  • Page 9: Identify The Parts Of The Rimage 360I

    Identify the parts of the Rimage 360i This section describes the Rimage 360i hardware and its features. Front View Input Door Project Status Indicator (PSI) Front Cover Disc Output 110808_C Identify the parts of the Rimage 360i Ink Cartridge Access Door...
  • Page 10 Rimage 360i Rimage 360i Buttons On the right side of the Rimage 360i, there is one button. Inside the front cover of the 360i, there are three buttons. Pause button • Press this button once to pause the Rimage 360i.
  • Page 11 The disc in motion LED blinks green when the disc is in motion. motion • The disc in motion LED blinks amber when the Rimage 360i is out of blank discs. • The disc in recorder LED is green when the disc is in the recorder.

  • Page 12: Rear View

    Rimage 360i Rear view Filter Cover Power Switch wer Cord Port USB 2.0 Port Rear Cover 110808_C...

  • Page 13: Operate The Rimage 360I

    Operate the Rimage 360i This section provides the information that you need to produce CDs or DVDs with the Rimage 360i. Powering on the Rimage 360i 1. To power on the 360i, press the power switch on the rear of the 360i. The Rimage 360i initializes.

  • Page 14: Loading The Discs

    Rimage 360i Loading the discs 1. Open the input door. 2. Place up to 25 discs in the disc input with the printable side facing out. 3. Close the input door. 110808_C...

  • Page 15: Select Your Printing Preferences

    Select your printing preferences Printing Preferences allows you to set up and run your Rimage 360i to produce the best possible label on your discs. Through Printing Preferences, you can: • Tip: For additional information about these • features, access the •...

  • Page 16: Setting The Print Quality

    Options window opens. b. Select the desired options. c. Select OK. The Digital Photography Options window closes. 6. When you have made the desired print quality changes, select OK. The Disc Color 360i Properties window closes. Adding, editing, or deleting a watermark This functionality allows you to create a new watermark or edit a currently existing watermark that you can print on your disc.

  • Page 17: Adjusting The Ink Volume Used

    5. If necessary, select the appropriate Color Space from the drop-down list. When you have made the desired choices, select OK. closes. 110808_C Operate the Rimage 360i The Disc Color 360i Properties window The Disc Color 360i Properties window...

  • Page 18: Changing Or Enabling Masking

    Inner Diam eter 38 mm 4. After you have entered the correct measurements, ub Area Disc Color 360i Properties window closes. Outer Diameter 35 mm Inner Diameter 24 mm Note: Select the Default button to return mask settings to the factory settings.

  • Page 19: Printing On Hub Without A Stacking Ring

    Select the Service ToolBox button. The Rimage Service Toolbox window opens. Select the Align Cartridges button. The Align Cartridges for Disc Color 360i dialog box opens. To align the ink cartridges, follow the instructions in the Align Cartridges for Disc Color 360i dialog box.

  • Page 20: Centering The Image On The Disc

    Rimage 360i Centering the image on the disc The Rimage 360i provides two ways to center the image on the disc. You can use the Auto Centering method or the Manual Centering method. The Auto Centering method is accurate to within +/- 0.5 mm.

  • Page 21: Maintain The Rimage 360I

    Maintain the Rimage 360i The procedures in this section will help keep your Rimage 360i in optimum operating condition. General Cleaning Tip: To keep your Rimage 360i clean, keep it in a dust free environment. Tip: Use only Rimage inkjet print...

  • Page 22: Replace Consumables

    The fan filter is a consumable item. You will need to change the fan filter after 20 ink cartridges. Use this procedure to change the fan filter. 1. On the rear of the Rimage 360i, press the tab on the filter cover and lift up the filter cover.

  • Page 23: Replacing The Ink Cartridges

    Replacing the ink cartridges Use this procedure to change the ink cartridges on your Rimage 360i. Important! You must use the appropriate ink cartridges in one of the configurations as stated on page 1 of this document. 1. Open the ink cartridge access door. The ink cartridge carriage moves to an accessible position on the carriage guide.

  • Page 24: Learn More

    Rimage 360i Learn More Rimage 360i Specifications Standard System One disc recorder, Rimage 360i with Rimage 360i Disc Color Printer, and software. Software requirements Rimage 360i Software Input bin capacity 25 Discs Output capacity 25 Discs Physical size Width – 15.25” (38.7 cm) Height –...

  • Page 25: Technical Support And Product Updates

    Technical support and product updates Support for the Rimage 360i is available through your authorized reseller. Important! Register your Rimage 360i online or complete and return the registration card so Rimage can notify you of upgrades as they become available.

  • Page 26: Safety Testing

    Rimage 360i Safety testing Product name: Rimage 360i Model: RAS17 Notice for USA Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 27: Rimage 360I Limited 1 Year Warranty

    To Rimage’s European depot repair location from a location in Europe with a typical response of 15 business days. To Rimage US depot repair from a location that is not in the US or Canada with a typical response of up to 25 business days.
