COILS – BLOWER COIL UNITS
CB19 AND CBH19 SERIES
CB19/
UP-FLOW, DOWN-FLOW AND HORIZONTAL
ENGINEERING DATA
CBH19
BLOWER COIL UNITS
*12,600 to 65,500 Btuh (3.7 to 19.2 kW) Cooling Capacity
Bulletin #210056
11,500 to 60,000 Btuh (3.4 to 17.6 kW) Heat Pump Heating Capacity
January 1995
6,400 to 102,400 Btuh (1.9 to 30.0 kW) Optional Electric Heat
Supersedes
April 1994
*ARI Standard 210/240 Ratings With Matching Outdoor Unit
Applications — The CB19 and CBH19 blower coil units are de-
signed for multi-position installation in a basement, utility
room, alcove, closet, crawlspace or attic. Units are applicable
to expansion valve systems in cooling applications and
check and expansion valve systems in heat pump applica-
tions. Units have factory installed check and expansion valve.
Several models are available in varying sizes with a wide
range of cooling and heating capacities. See Condensing Unit
bulletins in section Cooling Units — Condensing Units for
cooling capacities. See Heat Pump Outdoor Unit Bulletins in
section Heat Pumps — Matched Remote Systems for cooling
and heating capacities. Optional field installed electric heaters
are available in several sizes for additive heating capacity.
CB19 models are applicable to up-flow or down-flow dis-
charge air applications. Units are shipped for up-flow ap-
plications and may easily be field converted to the down-
flow position by turning the unit upside down and
repositioning the coil, drip shields and cabinet access panel.
Filters are not furnished and must be provided by the install-
er. An optional side return air adapter with filter(s) is avail-
CB19 MODEL — UP-FLO CB19 MODEL — DOWN-FLO
able for up-flow applications only. An optional additive
base is available for models with electric heat installed in
the down-flow position on combustible floors.
CBH19 models are designed for horizontal discharge air ap-
plications. Units are furnished with left hand air discharge as
standard and may be field changed to right hand discharge by
turning the unit over (end for end) and repositioning the coil.
CBH19-51 and CBH19-65 models are furnished in a two piece
cabinet with blower and optional electric heaters in one sec-
tion and the indoor coil in the other. Hardware is furnished for
field connection of cabinets. Filters are not furnished and
must be provided by the installer.
CBH19 MODEL — HORIZONTAL

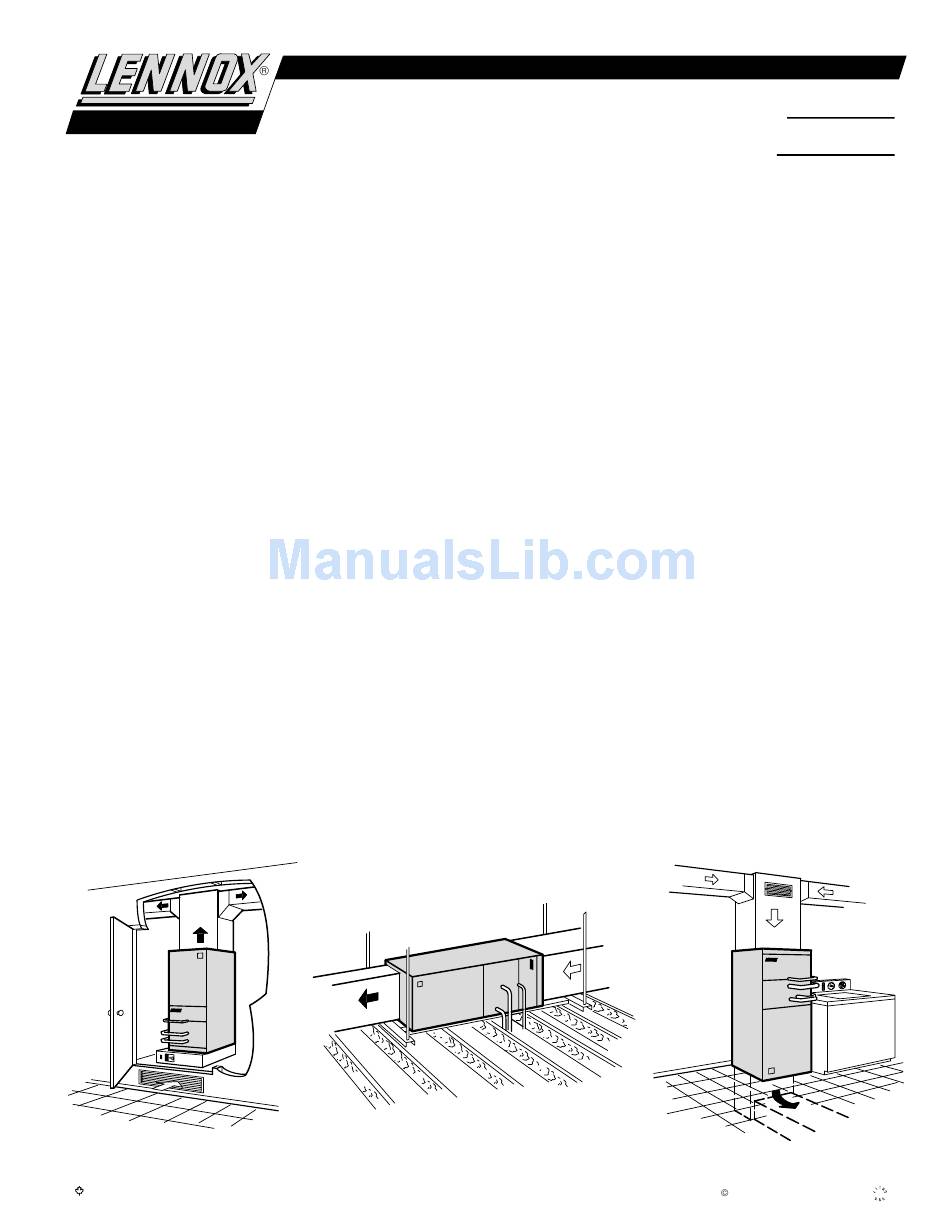

Typical Applications

Horizontal Installation
Up-Flow Installation
Down-Flow Installation
with optional electronic air cleaner
The maple leaf symbol in this bulletin denotes Canadian only usage where applicable
1995 Lennox Industries Inc.
NOTE — Due to Lennox' ongoing committment to quality, Specifications, Ratings and Dimensions subject to change without notice and without incurring liability.
