Summary of Contents for Broan ZB110HL
-
Page 1: Table Of Contents

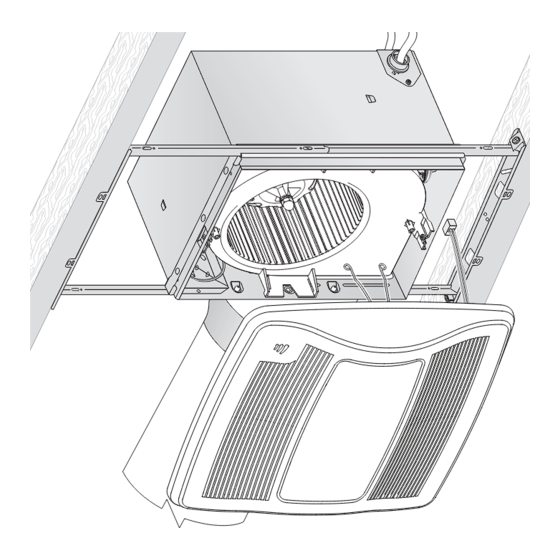

Fan with Light, Night Light and Humidity Sensor INSTALLATION GUIDE Table of Contents Warnings and Cautions Typical Installation New Construction Installation Easy installation in both Retrofit Installation Operation new construction and retrofit Cleaning and Maintenance Troubleshooting Service Parts © 2017 Broan... -
Page 2: Warnings And Cautions
Page 2 ZB110HL Installation Guide WARNING CAUTION TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR . For general ventilating use only. Do not use to exhaust INJURY TO PERSONS, OBSERVE THE FOLLOWING: hazardous or explosive materials and vapors. 1. Use this unit only in the manner intended by the manufacturer. -
Page 3: New Construction Installation
Page 3 ZB110HL Installation Guide New Construction Installation Tools needed Materials needed • Power screwdriver with a Phillips bit • 6" round metal ducting recommended for best performance. Use of other ducting is acceptable but may impact performance. • Phillips screwdriver •... - Page 4 Page 4 ZB110HL Installation Guide New Construction Installation Snap-in and Secure Housing Position Housing between joists and crimp channel on both sides of Mounting Frame to lock Housing in place. Do not crimp Housing. Screws from Parts Bag Attach Duct Connector and Ducting...
- Page 5 Page 5 ZB110HL Installation Guide New Construction Installation Connect Wires and Install Knockout Plate • Run 120VAC electrical wiring to the installation location. • Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag. • Connect wires as shown in wiring diagram.
- Page 6 Page 6 ZB110HL Installation Guide New Construction Installation Insert Mask and Finish Ceiling • Install ceiling material. • Cut out around Housing. CAUTION IN ORDER TO PREVENT Mask protects unit MOTOR/CONTROL DAMAGE: during construction. If the blower was unplugged, power must be Remove before installing Grille.
-
Page 7: Retrofit Installation
Page 7 ZB110HL Installation Guide Retrofit Installation Tools needed Materials needed • Power screwdriver with a Phillips bit • Ruler • Tape to seal duct connections • Phillips screwdriver • Pencil • Existing rigid duct will require the addition of a short length of flexible duct •... - Page 8 Page 8 ZB110HL Installation Guide Retrofit Installation Remove Blower Assembly Set aside Blower Assembly Both sides Remove Wiring Panel Set aside Wiring Panel Set aside screw Insert Mounting Frame Remove screws from Mounting Frame Bend up and set aside four tabs...
- Page 9 Page 9 ZB110HL Installation Guide Retrofit Installation Secure Mounting Frame Screws set aside in Step 7 Snap-in Housing Pull existing wiring into Housing as it is inserted into Mounting Frame Attach Ducting and Duct Connector Screw from Parts Bag Pull existing...
- Page 10 Page 10 ZB110HL Installation Guide Retrofit Installation Install Knockout Plate, Connect Wires and Reinstall Wiring Panel • Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag. • Connect wires as shown in wiring diagram.
- Page 11 Page 11 ZB110HL Installation Guide Retrofit Installation Reinsert and Secure Blower Assembly CAUTION IN ORDER TO PREVENT MOTOR/CONTROL DAMAGE: Power must be disconnected (see page 2, WARNING item 2) before inserting motor plugs into control assembly. Screws from Parts Bag If ceiling repairs are needed, place Mask in Housing after Blower Assembly is secured.
-
Page 12: Operation
Page 12 ZB110HL Installation Guide To Set the User-Adjustable Airflow Rate* WARNING Before servicing or cleaning unit, Using a small, flat-blade screwdriver, carefully rotate the CFM switch power off at service panel and lock the service adjustment until the arrow points to the desired airflow rate. -
Page 13: Troubleshooting
Page 13 ZB110HL Installation Guide Troubleshooting Service Parts Before continuing, turn off power as previously noted in WARNING and CAUTION sections on the previous page. Symptom: Fan does not run. • Check for an open fuse or circuit breaker in building’s service panel.
