Instruction Manual
D103553X012
Fisher
Large ET/EWT and ED/EWD Valves
™
NPS 12 through 30
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Scope of Manual
This instruction manual includes installation, maintenance, and parts information for NPS 12 through 30 Fisher
ET/EWT and ED/EWD valves, through CL600 ratings.
Refer to separate manuals for instructions covering the actuator and accessories.
Do not install, operate, or maintain ET/EWT or ED/EWD valves without being fully trained and qualified in valve,
actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is
important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and
warnings. If you have any questions about these instructions, contact your
Partner before proceeding.
www.Fisher.com
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .

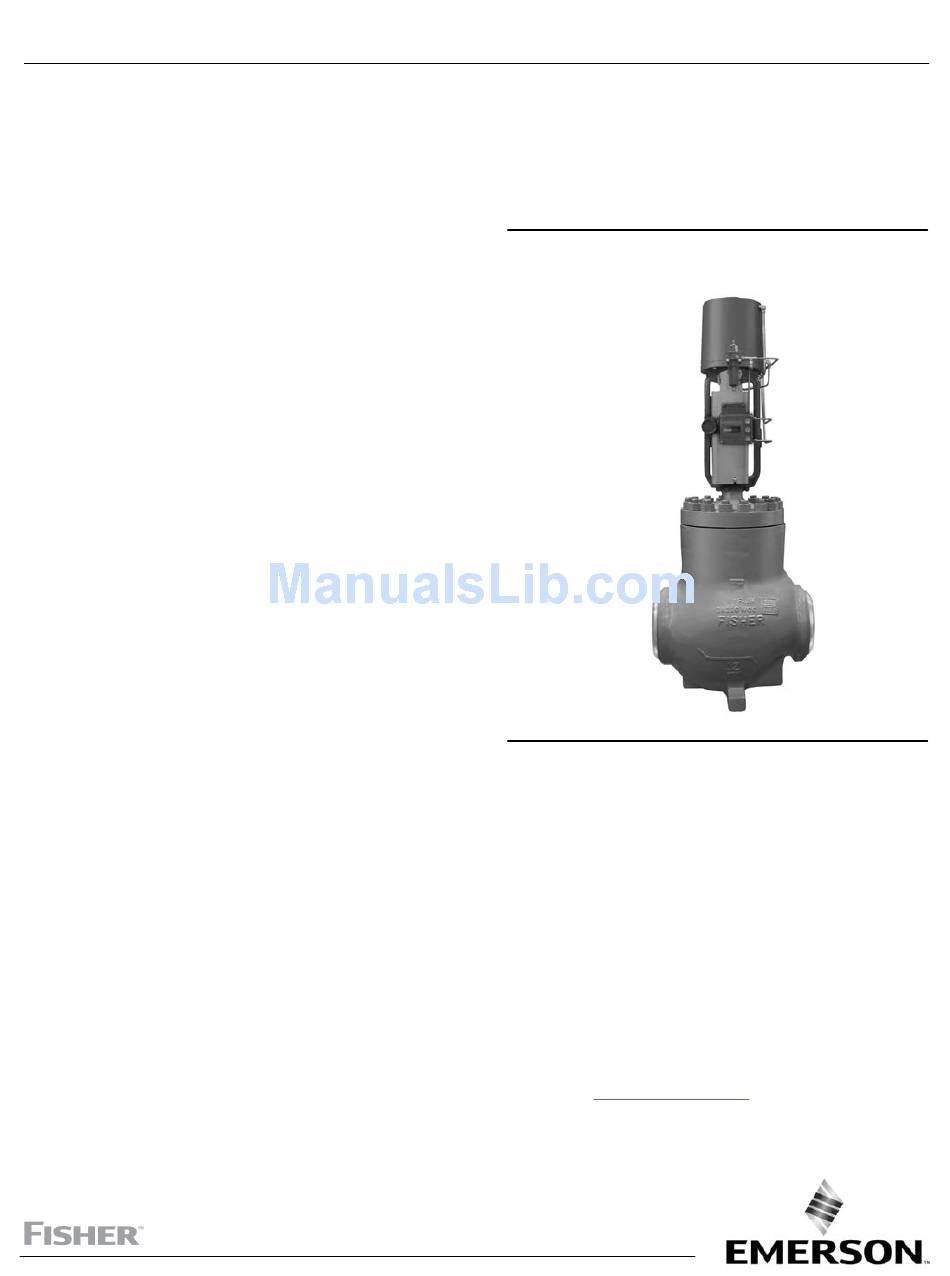

Figure 1. Fisher NPS 12 Valve with Piston Actuator
and FIELDVUE™ DVC6200 Digital Valve Controller
1
1
2
2
2
4
5
6
7
7
9
9
12
15
18
19
20
20
22
X0237-1
Emerson sales office
Large ET and ED Valves
July 2017
or Local Business
Advertisement
Table of Contents
Related Manuals for Emerson Fisher Large ED
Summary of Contents for Emerson Fisher Large ED
-
Page 1: Table Of Contents
To avoid personal injury or property damage, it is important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you have any questions about these instructions, contact your Emerson sales office or Local Business Partner before proceeding. -
Page 2: Educational Services
July 2017 D103553X012 Educational Services For information on available courses for Fisher Large ET/EWT and ED/EWD valves, as well as a variety of other products, contact: Emerson Automation Solutions Educational Services - Registration Phone: 1-641-754-3771 or 1-800-338-8158 E-mail: education@emerson.com emerson.com/fishervalvetraining... - Page 3 : J NPS 16x12, J 20x16, Cavitrol III Cages: Linear EWD, EWT, and EWT-C J 24x16, and J 24x20 For other characteristics, contact your Emerson sales office or Local Business Partner for details. End Connection Styles Flanged: CL150, 300, and 600 raised-face or ring-type joint flanges per ASME B16.5.
-
Page 4: Installation
18720 Flanged CL600 Buttwelding 1. Contact your Emerson sales office or Local Business Partner for these weights. 2. Dependent on valve travel, refer to product bulletin 51.1:ET/ED (Large) (D103554X012) for addition details. Installation WARNING Always wear protective gloves, clothing, and eyewear when performing any installation operations to avoid personal injury. -
Page 5: Maintenance
In general, if post weld heat treating is to be performed, all trim parts should be removed. Contact your Emerson sales office or Local Business Partner for additional information. -
Page 6: Packing Lubrication
Instruction Manual Large ET and ED Valves July 2017 D103553X012 Valve parts are subject to normal wear and must be inspected and replaced as necessary. Inspection and maintenance frequency depends on the severity of service conditions. This section includes instructions for packing lubrication, packing maintenance, and trim maintenance. -
Page 7: Packing Maintenance
Instruction Manual Large ET and ED Valves July 2017 D103553X012 Packing Maintenance Note For valves with ENVIRO-SEAL packing, see the Fisher instruction manual, ENVIRO-SEAL Packing System for Sliding-Stem Valves, D101642X012, for packing instructions. For valves with HIGH-SEAL packing, see the Fisher instruction manual, HIGH-SEAL ULF Live-Loaded Packing System, D101453X012, for packing instructions. - Page 8 Personal injury or damage to equipment could occur if improper stud and nut materials or parts are used. Do not operate or assemble this product with stud(s) and nut(s) that are not approved by Emerson/Fisher engineering and/or listed on the serial card provided with this product.
-
Page 9: Trim Maintenance
Instruction Manual Large ET and ED Valves July 2017 D103553X012 11. Lubricate the studs (key 15) and install hex nuts (key 16), using accepted bolting procedures during tightening, so that the body-to-bonnet joint will withstand test pressures and application service conditions. Use the bolt torques in table 4 as guidelines. - Page 10 Instruction Manual Large ET and ED Valves July 2017 D103553X012 Figure 2. Typical Packing UPPER WIPER UPPER WIPER (KEY 12) (KEY 12) PACKING PACKING FOLLOWER FOLLOWER (KEY 13) (KEY 13) FEMALE FEMALE ADAPTOR ADAPTOR PACKING RING PACKING RING MALE MALE WASHER ADAPTOR ADAPTOR...
- Page 11 Instruction Manual Large ET and ED Valves July 2017 D103553X012 Figure 2. Typical Packing (Continued) PACKING PACKING FOLLOWER FOLLOWER (KEY 13) (KEY 13) GRAPHITE RIBBON GRAPHITE RIBBON PACKING RING (KEY 7) PACKING RING (KEY 7) GRAPHITE FILAMENT GRAPHITE FILAMENT PACKING RING (KEY 7) PACKING RING (KEY 7) LANTERN RING LANTERN RING...
-
Page 12: Valve Plug Maintenance
Instruction Manual Large ET and ED Valves July 2017 D103553X012 For ED/EWD and ET-C/EWT-C Valves, using the below procedure, disassemble the seat ring from the valve body: a. Unscrew the seat ring cap screws (key 49). b. Install 3/8”-16 eye bolts with a minimum threaded length of 0.5 inches into the two equally spaced tapped holes in the top of the seat ring (key 9). - Page 13 Instruction Manual Large ET and ED Valves July 2017 D103553X012 For ET/EWT Valves Equipped with HTS1 Seals 1. Carefully pry the plug retaining ring (key 27) from its groove in the valve plug (key 2A). Then remove the plug seal ring (key 28), backup ring (key 29), and anti-extrusion ring (key 63).
- Page 14 Instruction Manual Large ET and ED Valves July 2017 D103553X012 3. Referring to figure 3, locate the 1/4-inch diameter hole in the groove where the piston ring was installed. 4. Select an appropriate tool such as a punch and place the tip of the tool into the hole with the body of the tool held tangent to the outside diameter of the retainer.
-
Page 15: Seat Ring Maintenance
Instruction Manual Large ET and ED Valves July 2017 D103553X012 14. Each new piston ring (key 6) is furnished as a complete ring, and each must be broken into two approximately equal portions. Do this by placing the ring on edge on a smooth, hard surface and striking the ring squarely with a hammer. - Page 16 GG43649X012 24.00 1. Contact your Emerson sales office or Local Business Partner for this tool and dimensions. For ET/EWT Valves 1. Carefully pry or cut out the seat ring seal ring (key 223) from its groove in the seat ring (key 9). Discard the old seat ring seal ring.
- Page 17 Instruction Manual Large ET and ED Valves July 2017 D103553X012 6. Tack weld the seat ring to the cage using minimal heat. Two welds, 6 mm (1/4-inch) long and 180 degrees apart, are required. CAUTION To avoid damaging the seal ring, slowly and gently stretch it for the following procedure. Avoid jerking sharply on the ring. 7.
-
Page 18: Bore Seal Retrofit
Additional actuator thrust is required for a valve equipped with the bore seal. When installing the bore seal in an existing valve, contact your Emerson sales office or Local Business Partner for assistance in determining new actuator thrust requirements. The bore seal retrofit will require a new valve plug and stem assembly (key 2), bore seal (key 64), and piston ring (key 6). -
Page 19: Assembly
This is especially critical in ED/EWD valves equipped with the bore seal. If after assembly the rated shutoff class is not attained your Emerson sales office Local Business Partner can provide further assistance. -
Page 20: Parts Ordering
WARNING Use only genuine Fisher replacement parts. Components that are not supplied by Emerson Automation Solutions should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the performance of the valve, and could cause personal injury and property damage. - Page 21 Instruction Manual Large ET and ED Valves July 2017 D103553X012 ENVIRO-SEAL Packing Kits Repair kits include parts to replace the “soft” packing materials in valves that already have ENVIRO-SEAL packing arrangements installed or in valves that have been upgraded with ENVIRO-SEAL retrofit kits. For part numbers of individual components, refer to instruction manual ENVIRO-SEAL Packing System for Sliding-Stem Valves, D101642X012.
-
Page 22: Parts List
Packing (figure 2) PTFE V-Ring Single Packing Packing Set see parts kit Spring Note Special Washer Contact your Emerson sales office or Local Business Partner for Part Packing Box Ring see parts kit Ordering information. Upper Wiper see parts kit Packing Follower PTFE V‐Ring Double Packing... - Page 23 Instruction Manual Large ET and ED Valves July 2017 D103553X012 Figure 5. Typical Fisher ED/EWD Valve FLOW DIRECTION 44B1142-B APPLY LUBRICANT 10A9421‐A AJ5428‐D OPTIONAL LUBRICATOR OPTIONAL LUBRICATOR/ISOLATING VALVE A0832‐2...
- Page 24 Instruction Manual Large ET and ED Valves July 2017 D103553X012 Figure 6. Typical Fisher ET/EWT Valve FLOW DIRECTION 44B1146-C APPLY LUBRICANT 10A9421‐A AJ5428‐D OPTIONAL LUBRICATOR OPTIONAL LUBRICATOR/ISOLATING VALVE A0832‐2...
- Page 25 Instruction Manual Large ET and ED Valves July 2017 D103553X012 Figure 7. Typical Fisher ET/EWT Valve Equipped with HTS1 Seals FLOW DIRECTION VIEW A VIEW B GG12454-C APPLY LUBRICANT 10A9421‐A AJ5428‐D OPTIONAL LUBRICATOR OPTIONAL LUBRICATOR/ISOLATING VALVE A0832‐2...
- Page 26 Instruction Manual Large ET and ED Valves July 2017 D103553X012 Figure 8. Typical Fisher ET-C/EWT-C Valve FLOW DIRECTION VIEW A GE81255-A APPLY LUBRICANT 10A9421‐A AJ5428‐D OPTIONAL LUBRICATOR OPTIONAL LUBRICATOR/ISOLATING VALVE A0832‐2...
- Page 27 Instruction Manual Large ET and ED Valves July 2017 D103553X012...
- Page 28 Fisher, FIELDVUE, Cavitrol, WhisperFlo, Whisper Trim, and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co.
