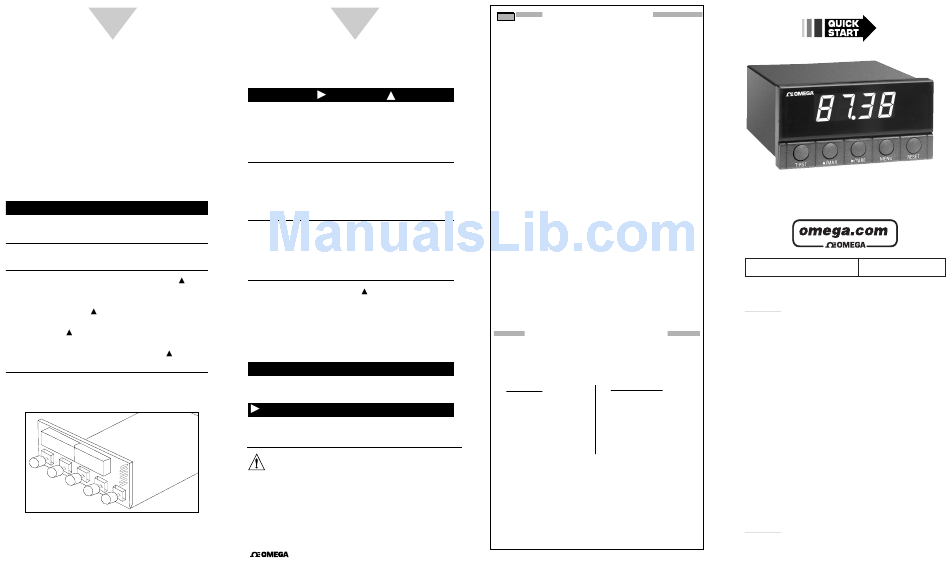

Omega DP24-E Quick Start

5
Reference Information
Meter Modes
Run Mode - The meter is in the run mode when the
display is actively showing a process.
Configuration Mode - The meter is in the configuration
mode when you press the MENU button to enable
meter configurations.
Jumpers
The following table gives you information about
jumpers. Refer to the illustration below for exact
jumper location. Refer to the Operator's Manual for
additional jumper information.
Jumper Description
S1 Installed: 10 V excitation
Removed: 24 V excitation
S2 Installed: Front-panel buttons locked
out Removed: All buttons operable
S3 Installed: PEAK shows when
button is pushed. PrsT (Peak Reset)
is active when RESET is pushed.
Press /MAX to show PEAK value.*
Removed: VALLEY shows when
/MAX button is pushed. VrST
(Valley Reset) is active when
RESET is pushed. Press /MAX to
show VALLEY value.*
*Shows in run mode only
S3
S2
S1
S1 - S3 Jumpers
6
Configuration Mode
The following table lists display prompts that appear
when the meter is in the configuration mode.
MENU /TARE
InP 0-10
4-20
20-4
0-5
1-5
dEc.P FFF.F
FFFF.
FFFF
F.FFF
FF.FF
ScAL int
LivE
/MAX
* Shows only if you press the
Tare
The following buttons enable tare functions in the run
mode:
T-RST
Clears tare value
/TARE
Tares display value to zero.
This device is marked with the international caution symbol. It is important to read
the Setup Guide before installing or commissioning this device as it contains
important information relating to safety and EMC.
