File No. 960-012
1.1
GENERAL

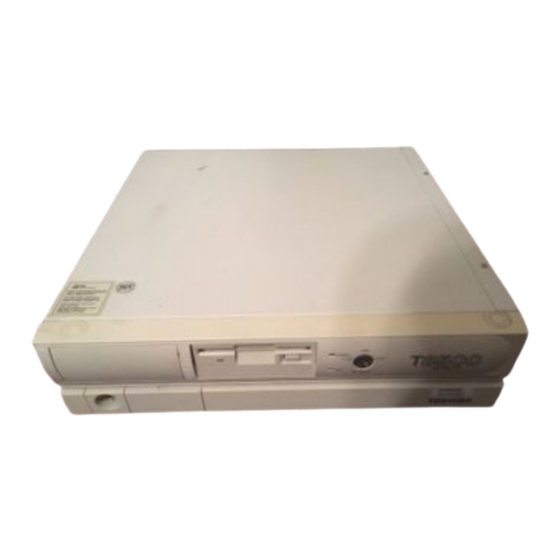

Toshiba T8500 is one of the most powerful personal computers
available, offering high technology, high speed and full IBM
PC AT compatibility.
This system unit is composed of Main Board, 3.5-inch floppy
disk drive (FOO) , 3.5-inch hard disk drive (HOD) and power
supply unit.
The system unit has 6 connectors (labeled EX-FOO, PRT, SCSI,
RGB, SERIAL1, and SERIAL2), keyboard socket, 3 IBM PC AT
compatible slots, and 1 slot compatible with Toshiba size
optional card.
The central processing unit (CPU) is the 32-bit 80386-20/25
microprocessor.
The standard memory has a capacity of 2 Mbytes; 1 Mbyte is
on the main board and 1 Mbyte is standard memory board.
32 Kbytes (80386-20) or 64 Kbytes (80386-25) of cache memory
speeds up the T8500 processing.
The HOD has a capacity of 100 Mbytes.
The FOO can support
200 (720 Kbytes) and 2HO (1.44 Mbytes) floppy disks.
The
auto-sensing universal power supply is used worldwide, and
has one AC-OUT socket for supplying power to your display.

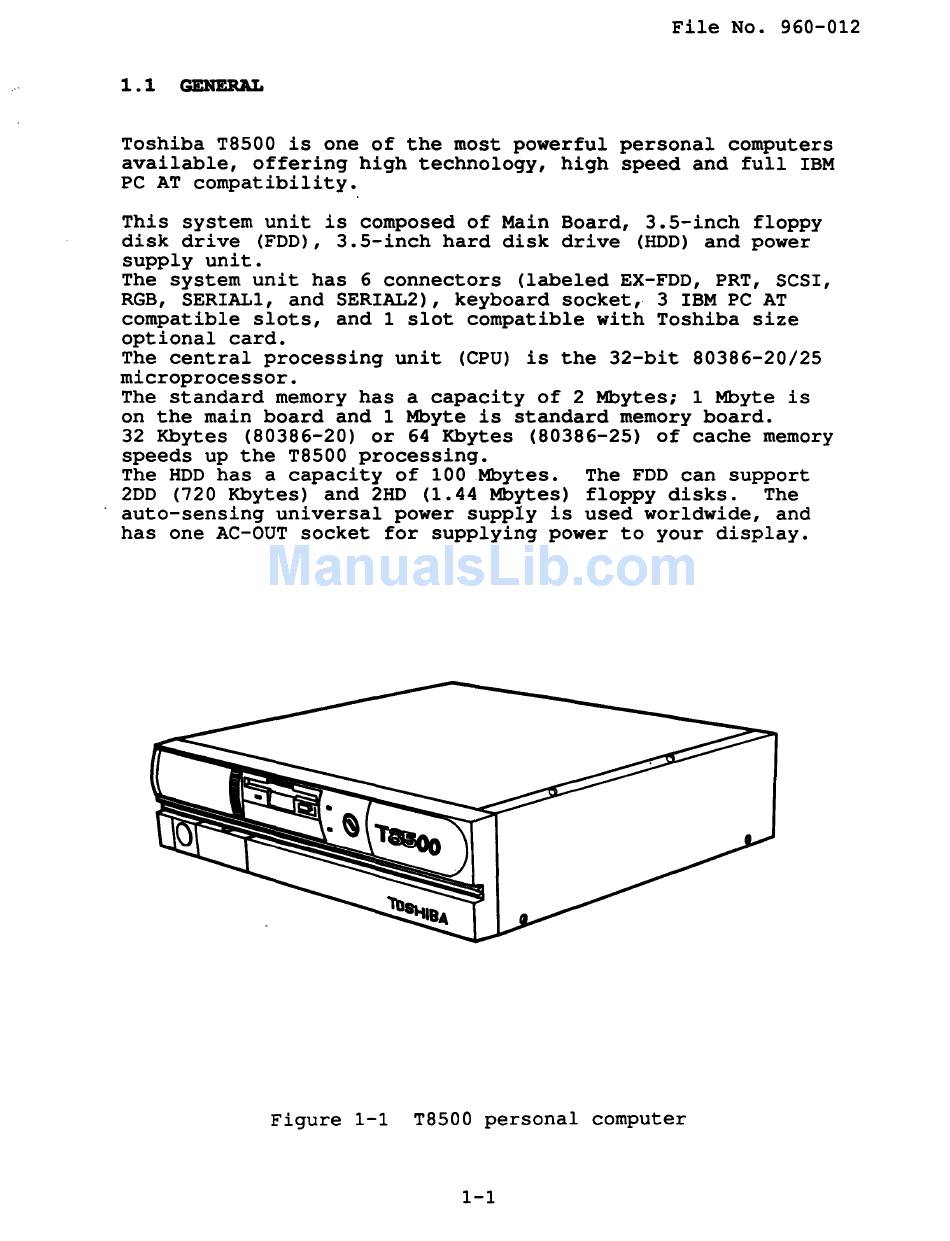

Figure 1-1
T8500 personal computer
1-1
