Remington 494 Operating Instructions Manual

Powder actuated fastening tool
Hide thumbs

Advertisement

Table of Contents

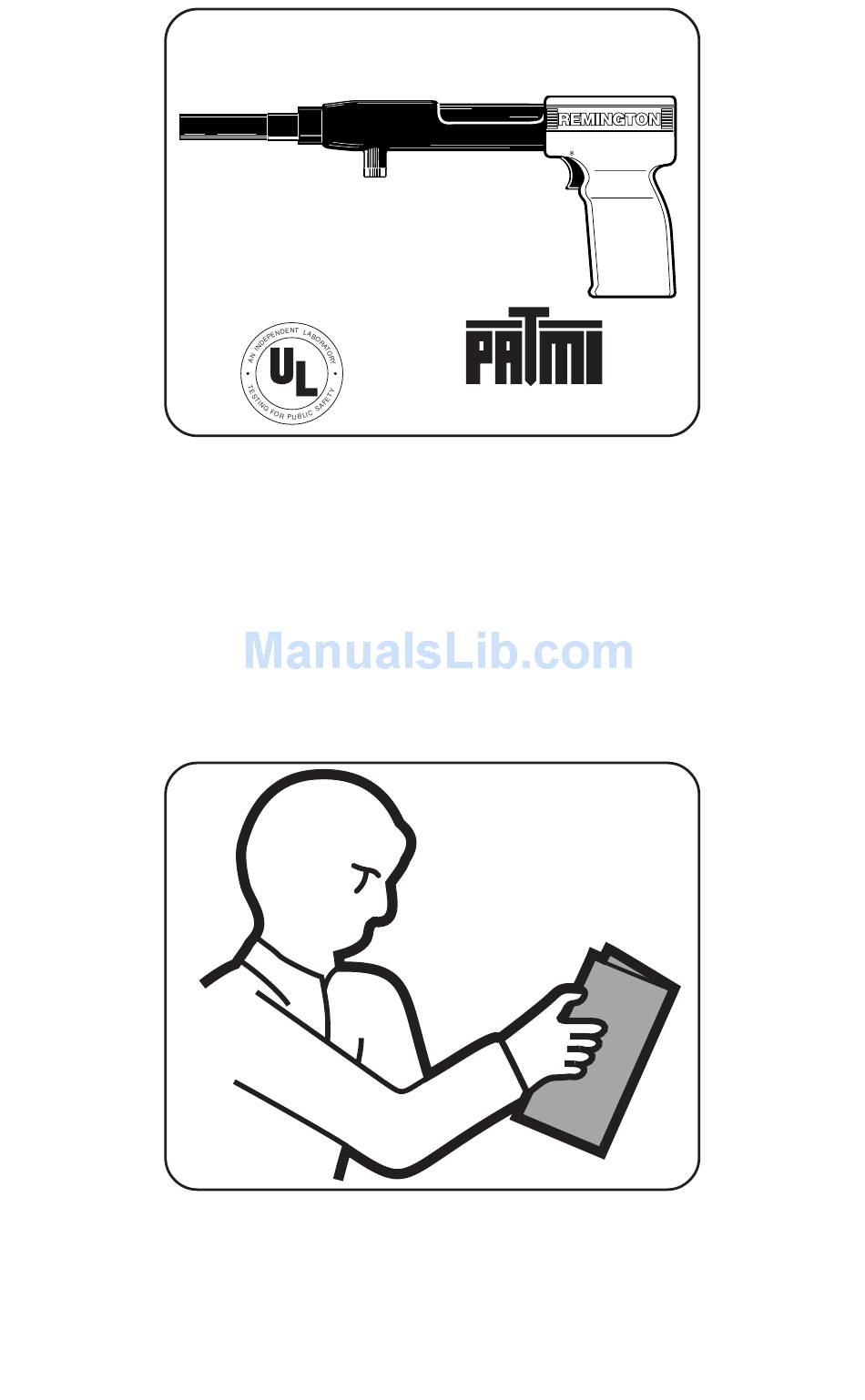

REMINGTON
Model 494
Powder Actuated
Fastening Tool
®
G 028
Operating
Instructions
IMPORTANT:
Read this manual and all labels carefully before
operating your powder actuated tool. This manual
should always accompany the tool and be transferred
with it upon change of ownership.
POWDER ACTUATED TOOL
MANUFACTURERS´ INSTITUTE INC.
G 029
482-1
®
™

Advertisement

Table of Contents
loading

Related Manuals for Remington 494

Summary of Contents for Remington 494

  • Page 1 REMINGTON Model 494 Powder Actuated Fastening Tool ® G 028 Operating Instructions IMPORTANT: Read this manual and all labels carefully before operating your powder actuated tool. This manual should always accompany the tool and be transferred with it upon change of ownership.

  • Page 2: Table Of Contents

    Warranty ... Back Cover Model 494 Powder Actuated Fastening Tool The Remington Model 494 Powder Actuated Fastening Tool is designed for use with Remington 22 caliber Type A crimped loads and Remington Power Fasteners. Remington power fasteners are manufactured from special steel and heat treated to produce a very hard yet ductile fastener.

  • Page 3: Warning: Safety Precautions

    Warning: Safety Precautions WARNING ICON G 001 The following pages contain detailed warnings, cautions, and rules of safe operation. Read carefully and become familiar before operating to avoid serious injury. We expressly disclaim any liability for any injury to persons or damage to property which result from your failure to take the precautions contained in this manual.
  • Page 4 Safety Precautions 482-9 ALWAYS clear the work area on all sides and post appropriate warning signs on job sites. ALWAYS make sure the work area is clean from loose material and debris. HANDLING THE TOOL G 018 NEVER place your hand over the muzzle. Accidental discharge can cause serious injury. G 018 NEVER place your finger on the trigger until the tool’s muzzle is against the work surface.
  • Page 5 G 018 ALWAYS store UNLOADED powder actuated tool and power loads in a locked container. Keep power loads of different power levels in separate containers. G 018 482-19 NEVER carry or pass a loaded powder actuated tool. NEVER point a powder actuated tool at anyone.
  • Page 6 Safety Precautions G 018 482-25 An operator taking medication should take extra precautions while handling the tool. NEVER drink alcoholic beverages or take medications which impair your vision, balance or judgement before using a powder actuated tool. KNOW YOUR FASTENING BASE MATERIAL 482-26 Point flattens...
  • Page 7 CAST IRON GLASS G 018 NEVER attempt to drive power fasteners into very hard or brittle materials including, but not limited to cast iron, glass, tile, stone, brick, or hardened steel. Materials of this type tend to shatter and create hazard from flying particles. G 018 NEVER make fastenings in spalled or cracked areas.
  • Page 8 Safety Precautions 3" 482-38 DO NOT drive power fasteners into concrete less than three times as thick as the intended fastener penetration, within 3" of the edge, within 3" of another power fastener or within 3" of a failed power fastener. WELD 482-40 TOO THIN...
  • Page 9 Should the tool fail to fire, hold the muzzle firmly against the work surface for 30 seconds. Release the trigger and remove pressure on the tool while holding the muzzle against the work surface. Again press the tool firmly against the work surface and pull the trigger. If the tool still fails to fire, hold the tool firmly against the work surface for another 30 seconds before unloading and carefully discarding the misfired power load into water or oil.
  • Page 10 Safety Precautions Start GRAY BROWN GREEN YELLOW 482-31 Remington power loads are available in four power levels with gray (1) being the lowest power level and yellow (4) being the highest power level. Always start with the lowest power level (gray-level 1) and increase until a proper fastening is made (see page 13 Selecting Fasteners and Loads).
  • Page 11 G 018 482-59 Power fasteners are a permanently installed fixture. An act of demolition is required for their removal. Appropriate safety precautions must be taken. Head Shank Plastic Flute 482-60 NEVER use common nails or other materials as fasteners. Remington Power Fasteners are manufactured from special steel and heat treated to produce a very hard yet ductile fastener.

  • Page 12: Why A Fastener Holds

    Why A Power Fastener Holds WHY A POWER FASTENER HOLDS IN CONCRETE The compression bond of the concrete to the power fastener accounts for the majority of the holding power. The fastener dis- places the concrete which tries to return to its original form causing a squeezing effect.

  • Page 13: Selecting Fasteners And Power Loads

    Selecting Power Fasteners and Power Loads FASTENING INTO CONCRETE The proper power fastener length can be determined by adding the thickness of the material to be fastened and the amount of fastener that will actually penetrate the concrete. The concrete must be three times as thick as the intended fastener penetration.

  • Page 14: Operation

    Operation Grasp muzzle and slide barrel forward rapidly until it stops. This sets piston into firing position and opens the chamber. 482-70 Insert power fastener into muzzle of tool, head end first. Push the fastener until point is even with end of tool. ALWAYS load the fastener first, then the power load. 482-71 Select the proper Remington Power Load and insert into the chamber until it stops (see Application Chart on page 23).
  • Page 15 Place the muzzle of tool perpendicular to work surface without tilting the tool. Push tool against work surface until sliding action of barrel stops. Squeeze trigger to set power fastener. Be sure to keep pressure on tool during this operation. After fastening is made, slide barrel forward rapidly.

  • Page 16: Maintenance

    Maintenance IMPORTANT: Clean your tool after each day’s use. The parts shown in the illustration below should be cleaned daily. Clean metal parts with accessory wire brushes. Apply penetrating lubricant sparingly and wipe dry. Barrel Buffer Muzzle Cap Troubleshooting Guide PROBLEM Piston rod hangs out of muzzle cap.

  • Page 17: Parts Centrals

    Troubleshooting Guide (cont.) PROBLEM Tool does not completely depress. Tool does not fire. Opening and closing of barrel or pushing down of the tool, etc. is not smooth but is rough or binds. Contact authorized dealers of this product. If they can’t supply original replacement part(s), either contact your nearest Parts Central (see below) or call DESA International’s Parts Department at 1-800-972-7879.

  • Page 18: Parts List

    Parts List – Model 494 PART 101123-01 101122-01 101128-01 056217 075370 101148-01 100858-01 101124-01 101127-01 101126-01 101439-01 100856-01S 100864-01 TA4083 100857-01S 101147-01 100862-01 056218 076657 IMPORTANT: Do not use key numbers when ordering service parts. Always order components by part number and description. Include model number and serial number of tool.

  • Page 19: Accessories

    PART NO. DESCRIPTION 101320-02 Spall Shield 056415 Goggles 056485 Brush, 1/4" 056486 Brush, 5/8" 103754 Hex Wrench 3/16" For Parts and Accessories, please contact your dealer or distributor. If they are unable to satisfy your requirements, please contact DESA International at the locations as stated on back page. Tool Disassembly and Assembly WARNING: Always unload a powder actuated tool before disassembling, replacing barrel, cleaning, or assembling.

  • Page 20: Tool Assembly

    Tool Disassembly and Assembly WARNING: Always unload a powder actuated tool before disassembling, replacing barrel, cleaning, or assembling. WARNING ICON G 001 ASSEMBLY 1. Place buffer, small end first, in muzzle cap. Push piston all the way into the barrel. Screw muzzle cap into barrel.

  • Page 21: Buffer And Piston Replacement

    Buffer and Piston Replacement WARNING: Always unload a powder actuated tool before disassembling, replacing barrel, cleaning, or assembling. WARNING ICON G 001 IMPORTANT: This tool is equipped with a piston buffer. The buffer stops the piston before it makes contact with the muzzle cap. This protects the barrel and muzzle cap.

  • Page 22: Application Chart

    Application Chart Power load and power fastener application information. For fastening this Two by fours Furring strips Metal electrical junction boxes Conduit clips Shelf brackets 1/4" Plywood or pegboard Power load listings are recommendations only. If you are in doubt, try a test fastening using the next lightest power load.
  • Page 23 IMPORTANT • If power fastener goes below the top surface of the board, use penetrating control disc (* see illustration below). • Always wear approved eye and ear protection. Use power fastener with penetration control disc, part number 015549. 22 CALIBER Type A Crimp Loads for powder...
  • Page 24 Limited Warranty Agreement DESA International warrants the Remington Model 494 Powder Actuated Fastening Tool against defects in materials and workmanship for a period of one (1) year from the date of purchase. If within one (1) year from the purchase date this Powder Actuated Tool fails due to a defect in material or workmanship, DESA will repair or replace the tool at DESA’s option.
