Omron HEM-6131 Instruction Manual

HEM-6131-AP_A_M_EN.fm 1 ページ ２０１３年５月１４日 火曜日 午後６時９分
Display:
L
G
H
Wrist Blood
Pressure Monitor I
Model HEM-6131 J
Instruction Manual
K
1887246-8A
G. Memory symbol
Introduction
H. Systolic blood pressure
I. Diastolic blood pressure
Thank you for purchasing the OMRON HEM-6131 Wrist Blood
Pressure Monitor. J. Battery low symbol
K. Heartbeat symbol
The OMRON HEM-6131 is a compact and easy to use blood
(Flashes during measurement)
pressure monitor, operating on the oscillometric principle. It
L. Average value symbol
measures your blood pressure and pulse rate simply and quickly.
For comfortable controlled inflation without the need of pressure M. Date/Time display
pre-setting or re-inflation the device uses its advanced "IntelliSense"
technology.
2. Preparation
Intended Use
This product is designed to measure the blood pressure and pulse 2.1 Installing/Replacing the Batteries
rate of people within the range of the designated wrist cuff, following
the instructions in this instruction manual.
1. Remove the battery cover.
It is mainly designed for general household use. Please read the
Important Safety Information in this instruction manual before using
the unit.
Please read this instruction manual thoroughly before using the
unit.
Please keep for future reference.
For specific information about your own blood pressure,
CONSULT YOUR DOCTOR.
2. Insert two 1.5V "AAA"
alkaline (LR03) batteries

Important Safety Information

as indicated in the battery
Consult your doctor prior to using in pregnancy or if diagnosed with
compartment and then
arrhythmia or arteriosclerosis.
replace the battery cover.
Please read this section carefully before using the unit.
Warning:
Notes:
Indicates a potentially hazardous situation which, if not avoided,
• If the battery low symbol (
could result in death or serious injury.
the unit then replace both batteries at the same time.
(General Usage)
• The measurement values continue to be stored in memory
• Always consult your doctor. Self-diagnosis of measurement results
even after the batteries are replaced.
and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should
Disposal of used batteries should be carried out in accordance
consult a doctor before using the unit, as cuff inflation can cause with the national regulations for the disposal of batteries.
internal bleeding.

2.2 Setting the Date and Time

(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with 1.
Press and hold the
plenty of clean water. Consult a doctor immediately.
flashes on the display.
Caution:
Indicates a potentially hazardous situation which, if not avoided, may
2. Set the monitor to the correct date and time
result in minor or moderate injury to the user or patient or damage to
before taking a measurement for the first time.
the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who
cannot express their consent.
• Do not use the unit for any purpose other than measuring blood
pressure.
• Do not use a mobile phone or other devices that emit
electromagnetic fields, near the unit. This may result in incorrect
operation of the unit.
• Do not disassemble the unit or wrist cuff.
• Do not operate the unit in a moving vehicle (car, airplane).
(Battery Usage)
Year
• If battery fluid should get on your skin or clothing, immediately rinse
with plenty of clean water. Month
• Use only two "AAA" alkaline (LR03) batteries with this unit.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace both
batteries at the same time.
• Remove the batteries if the unit will not be used for three months or
more.
• Do not use new and used batteries together. 3. Press the START/STOP button to store the setting.
General Precautions
Notes:
• Do not apply strong shocks and vibrations to or drop the unit.
• If the batteries have been removed, the date and time setting
• Do not take measurements after bathing, drinking alcohol or will need to be reset.
caffeine, smoking, exercising or eating.
• If the date and time are not set, "-:--" appears during or after
• Do not inflate the wrist cuff when it is not wrapped around your measurement.
wrist.
For more information about re-setting the date and time,
• Read and follow the "Important information regarding Electro
please refer to 3.4 Setting the Positioning Sensor.
Magnetic Compatibility (EMC)" in the Technical Data Section.
• Read and follow the "Correct Disposal of This Product" in the

3. Using the Unit

Technical Data Section when disposing of the device and any used
accessories or optional parts.

3.1 Applying the Wrist Cuff

Do not apply over clothing.

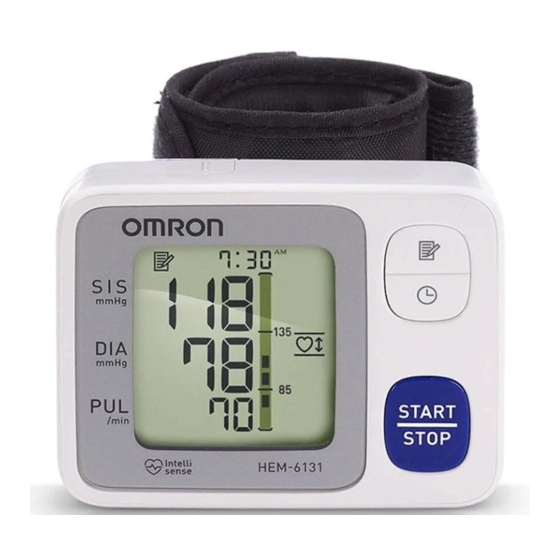

1. Overview
1. Place the wrist cuff over

Main unit:

your wrist.
A
D
Your palm should face upward.
B
E
2. Wrap the wrist cuff around
your wrist.
F
C
Wrap the wrist cuff securely
around the wrist for taking
A. Wrist cuff
D. Memory ( ) button
accurate measurements.
B. Battery compartment E. Date/Time setting ( ) button
C. Display F. START/STOP button
Make sure that the wrist cuff
does not cover the protruding
part of the wrist bone (ulna) on
the outside of the wrist.
Note: You can take a
measurement on either
your left or right wrist.

3.2 How to Sit Correctly

M N
To take a measurement, you need
Q
to be relaxed and comfortably
seated, under comfortable room
R
temperature. No bathing, drinking
alcohol or caffeine, smoking,
S
exercising or eating 30 minutes
before taking a measurement.
T
U
• Sit on a chair with your feet flat on the
floor.
O P • Sit upright with your back straight.
• The cuff should be at the same level
N. Blood pressure level indicator
as your heart.
O. Pulse display and Memory
number
• Relax your wrist and hand. Do not bend your wrist back, clench
P. Deflation symbol
your fist, or bend your wrist forward.
Q. Cuff wrapping guide
R. Positioning indicator
S. Positioning symbol
T. Movement error symbol
U. Irregular heartbeat symbol

3.3 Taking a Reading

Notes:
• To cancel a measurement, press the START/STOP button at
any time during measurement.
• Remain still while taking a measurement.
1. Press the START/STOP button.
All the symbols appear on the display.
While your position is improper, the Positioning symbol and the
Positioning indicator flash, when you are in proper position the
Positioning symbol lights on the display.
The monitor is in The monitor is higher The monitor is lower
proper position. than the heart. than the heart.
) appears on the display, turn off
After the Positioning symbol lights for more than 2 seconds,
button until the year
the wrist cuff will start to inflate automatically.
Alternating
Cuff Wrapping Guide
date/time display
1) Press the button to change.
• Hold down to advance the digit
rapidly.
2) Press the button to confirm. START INFLATE DEFLATE COMPLETE
• Next setting appears.
Cuff Wrapping Guide
The Cuff wrapping Guide is a unique feature that indicates if
the cuff is not wrapped tightly enough around the wrist.
If the is displayed, it means the reading is NOT reliable
due to the incorrect wrapping of the cuff.
Please wrap the cuff again, taking care to wrap it correctly and
take the measurement again. When the is displayed,
Day
the cuff is correctly wrapped tightly enough on the wrist and
the reading is accurate and reliable.
Hour
Minute
2. Undo the wrist cuff and remove the unit.
3. Press the START/STOP button to turn off the
monitor.
The monitor automatically stores the measurement in its
memory.
It will automatically turn off after two minutes.
Important:
• Recent research suggests that the
following values can be used as a
guide to high blood pressure for
measurements taken at home.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
This criteria is for home blood pressure measurement.
• Your blood pressure monitor includes an
irregular heartbeat feature. Irregular
heartbeats can influence the results of the
measurement. The irregular heartbeat
algorithm automatically determines if the
measurement is usable or needs to be
repeated. If the measurement results are
affected by irregular heartbeats but the result
is valid, the result is shown together with the
irregular heartbeat symbol ( ).
If the irregular heartbeats cause the measurement to be
invalid, no result is shown. If the irregular heartbeat symbol
( ) is shown after you have taken a measurement, repeat
the measurement. If the irregular heartbeat symbol (
shown frequently, please make your doctor aware of it.
• If you move during measurement, the
movement error symbol ( ) will appear on
the display. Keep still and repeat the
measurement.
13A0092
Notes:
4. Troubleshooting and Maintenance
• Wait 2 - 3 minutes before taking another blood
pressure measurement. Waiting between readings

4.1 The Icons and Error Messages

allows the arteries to return to the condition prior to
taking the blood pressure measurement.
Error Display
• The blood pressure can differ between the right arm
and the left arm, and therefore also the measured
blood pressure values can be different. OMRON
recommends to always use the same arm for
measurement. If the values between the two arms
differ substantially, please check with your doctor
which arm to use for your measurement.
Warning:
Self-diagnosis of measured results and treatment are
dangerous. Please follow the instructions of your doctor.
3.4 Setting the Positioning Sensor
1. Press and hold the
Blink
button to set the
Positioning Sensor.
The Positioning Sensor
Lit
"on" or "oFF" appears
on the display.
Press the to reset the
Positioning sensor.
The Positioning Sensor
is set "on" as default.
Press the button.
The year flashes to set
the current date and
time on the display.
2. After setting the date and time, press the
START/STOP button to store the Positioning
Sensor setting.
For more information about setting the date and time, please
refer to 2.2 Setting the Date and Time.

3.5 Using the Memory Function

The unit automatically stores up to 60 sets of measurement
values (blood pressure and pulse rate).
It can also calculate an average reading based on the
measurements from the last three readings taken within 10
minutes. If there are only two readings in memory for that
period, the average will be based on two readings. If there is
Note: The irregular heartbeat symbol (
one reading in memory for that period, the average will be
symbol (
based on one reading.
Notes:

4.2 Troubleshooting

• If the memory is full, the monitor will delete the oldest
readings.
Problem
• When viewing the reading taken without setting the date and
time, "-:--" is displayed instead of the date and time.
To View the Average Value
Press the Memory button.
The reading is
extremely low
(or high).
Note: If there are no measurements
results stored in the memory, the
screen to the right is displayed.
Wrist cuff pressure
does not rise.
Wrist cuff deflates
To View the Readings Stored in Memory
too soon.
1.
Press the button, while the average value is
displayed.
The blood pressure is different
The Memory number
Alternating each time. The reading is
appears for a second
date/time
extremely low (or high).
before the pulse rate is
display
displayed. The newest
set is numbered "1".
The unit loses
power during
measurement.
2.
Press the button repeatedly to view the
readings stored in memory.
Nothing happens
when you press

To Delete All the Values Stored in Memory

the buttons.
When the memory symbol ( ) appears, first press
the button. Then while holding it down, press the
START/STOP button simultaneously for about 2 - 3
Other problems.
seconds.
) is
First Second
Note: You cannot partially delete the stored readings.
4.3 Maintenance
To protect your unit from damage, please observe the
following:
Cause Remedy
• Do not subject the main unit and the cuff to
extreme temperatures, humidity, moisture or
Remove the wrist cuff. Wait
2 - 3 minutes and then take
direct sunlight.
another measurement.
Irregular heartbeats • Do not disassemble the unit.
Repeat the steps in section
are detected.
3.1, 3.2 and 3.3. If this error • Do not subject the unit to strong shocks or
continues to appear, contact
vibrations (for example, dropping the unit on the
your doctor.
floor).
• Do not use volatile liquids to clean the main unit.
Movement during Carefully read and repeat the
• Do not wash the cuff or immerse it in water.
measurement. steps in section 3.3.
• Do not use petrol, thinners or similar solvents to
clean the cuff.
You should replace them with • Do not carry out repairs of any kind yourself. If a
The batteries are
new ones ahead of time.
defect occurs, consult your OMRON retail outlet
low.
Refer to section 2.1.
or distributor as mentioned on the packaging.
You should replace them with
The batteries are
new ones at once.
exhausted.
Refer to section 2.1.
Wrist cuff not Apply the wrist cuff correctly.
applied correctly. Refer to section 3.1.
Repeat Measurement while
remaining still and refrain
Movement during
from talking during the
measurement.
measurement.
Refer to section 3.3.
• The unit should be cleaned with a soft, dry cloth.
• Use a soft, moistened cloth and soap to clean
the cuff.
Apply the wrist cuff correctly
• Keep the unit in its storage case when not in
and repeat measurement
Wrist cuff not
while remaining still and use.
applied correctly, or
refrain from talking during the
movement during • Fold the cuff into the storage case.
measurement.
measurement.
Refer to section 3.1, 3.2 and
Do not store the unit in the following situations:
3.3.
• If the unit is wet.
Arm position Remain still until the
• Locations exposed to extreme temperatures,
changed during measurement is complete.
measurement. Refer to section 3.3
humidity, direct sunlight, dust or corrosive
vapours.
Contact your local OMRON • Locations exposed to vibrations, shocks or
Device error.
representative.
where it will be at an angle.
Calibration and Service
) and the movement error
• The accuracy of this blood pressure monitor has
) may also be displayed with error messages.
been carefully tested and is designed for a long
service life.
• It is generally recommended to have the unit
Cause Remedy
inspected every two years to ensure correct
functioning and accuracy. Please consult your
Measure while in the
The wrist cuff is not
correct posture.
authorised OMRON dealer or the local
at heart level.
Refer to section 3.2.
representative.
The cuff is not
Wrap the cuff correctly.
wrapped snugly
Refer to section 3.1.

5. Technical Data

around the wrist.
Product Description Wrist Blood Pressure Monitor
The arms and Relax and try taking the
Model HEM-6131
shoulders are measurement again.
Display LCD Digital Display
tense. Refer to section 3.3.
Measurement Method Oscillometric method
Measurement Range Pressure: 0 to 299 mmHg
Movement or Remain still and do not
Pulse: 40 to 180 beats/min.
talking during talk during Measurement.
measurement. Refer to section 3.3. Accuracy Pressure: ±3 mmHg
Pulse: ±5% of display reading
Air is leaking from Consult your local
Inflation Automatic inflation by pump
the wrist cuff. OMRON representative.
Deflation Automatic rapid deflation
Memory 60 Measurements
Apply the cuff correctly so
Power Source 2 x 1.5V (LR03, AAA alkaline batteries)
The wrist cuff is that it is firmly wrapped
Battery Life Approx. 300 measurements with new
loose. around the wrist. Refer to
alkaline batteries at a room temperature of
section 3.1.
23°C
Blood pressure readings
Applied Part = Type B
constantly vary with time
of day and how relaxed
Protection Against Internally powered ME equipment
you are. Take several
Electric Shock
deep breaths and try to
Operating temperature/ +10 to +40°C / Maximum: 30 to 85% RH
remain relaxed before
Humidity
taking a measurement.
Storage temperature/ -20 to +60°C / Maximum: 10 to 95% RH /
Humidity 700 to 1060hPa
Console Weight Approx. 101g without batteries
Replace the batteries with
The batteries are Outer Dimensions Approx. 78 (w) mm x 60 (h) mm x 21 (d)
new ones.
exhausted.
mm (without the wrist cuff)
Refer to section 2.1.
Measurable Wrist Approx. 13.5 to 21.5 cm
Circumference
Cuff Material Nylon and polyester
The batteries have Insert the batteries with
Package Content Main unit, storage case, battery set,
been inserted the correct (+/-) polarity.
instruction manual
incorrectly. Refer to section 2.1.
• Press the START/STOP button and repeat
Note: Subject to technical modification without prior notice.
measurement.
• If the problem continues, try replacing the
batteries with new ones.
If this still does not solve the problem, contact
• This device fulfils the provisions of EC directive 93/42/EEC
your local OMRON representative.
(Medical Device Directive).
• This blood pressure monitor is designed according to the European
Standard EN1060, Non-invasive sphygmomanometers Part 1:
General Requirements and Part 3: Supplementary requirements
for electromechanical blood pressure measuring systems.
Important information regarding Electro Magnetic
Compatibility (EMC)
With the increased number of electronic devices such as PC's and
mobile (cellular) telephones, medical devices in use may be
susceptible to electromagnetic interference from other devices.
Electromagnetic interference may result in incorrect operation of
the medical device and create a potentially unsafe situation.
Medical devices should also not interfere with other devices.
In order to regulate the requirements for EMC (Electro Magnetic
Compatibility) with the aim to prevent unsafe product situations, the
EN60601-1-2:2007 standard has been implemented. This standard
defines the levels of immunity to electromagnetic interferences as
well as maximum levels of electromagnetic emissions for medical
devices.
This medical device manufactured by OMRON HEALTHCARE
conforms to this EN60601-1-2:2007 standard for both immunity and
emissions.
Nevertheless, special precautions need to be observed:
• Do not use mobile (cellular) telephones and other devices, which
generate strong electrical or electromagnetic fields, near the
medical device. This may result in incorrect operation of the unit
and create a potentially unsafe situation. Recommendation is to
keep a minimum distance of 7 m. Verify correct operation of the
device in case the distance is shorter.
Further documentation in accordance with EN60601-1-2:2007 is
available at OMRON HEALTHCARE EUROPE at the address
mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its
literature, indicates that it should not be
disposed of, with other household wastes at the
end of its working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this product from
other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details
of where and how they can return this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product should not be
mixed with other commercial wastes for disposal.
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto,
617-0002 JAPAN
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp
THE NETHERLANDS
OMRON HEALTHCARE SINGAPORE PTE LTD.
438A Alexandra Road, #05-05/08
Asia Pacific HQ
Alexandra Technopark, Singapore 119967
www.omron-healthcare.com.sg
OMRON HEALTHCARE MANUFACTURING
Production Facility
VIETNAM CO., LTD.
Binh Duong Province, Vietnam
This OMRON product is manufactured under the strict quality
system of OMRONHEALTHCARE Co., Ltd., Japan. The Core
component for OMRON blood pressure monitors, which is the
Pressure Sensor, is produced in Japan for assembly.
Made in Vietnam
