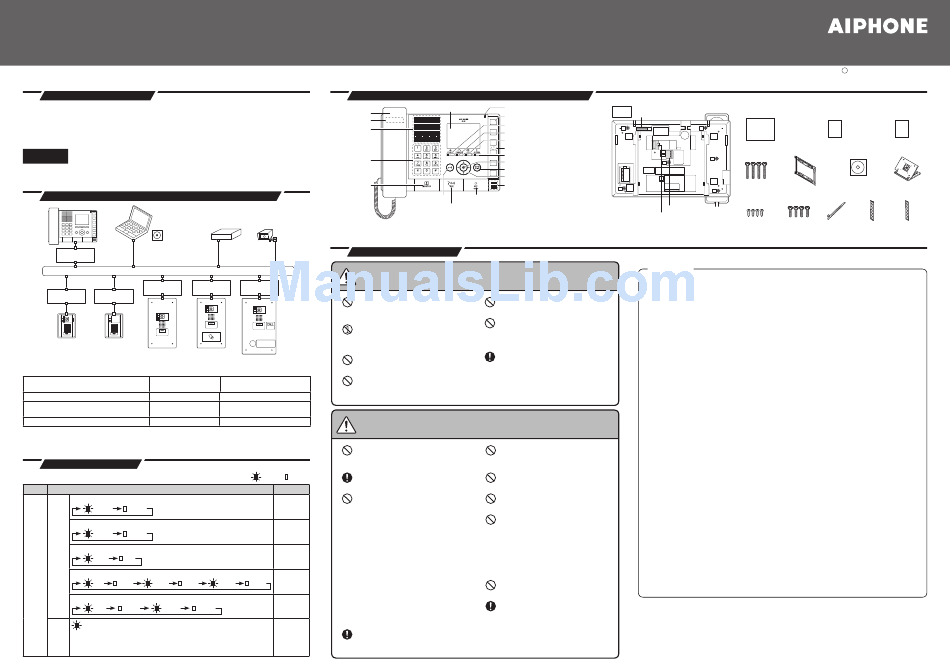

Installation Manual
Introduction
Introduction
• Read this manual before installation and connection.
Read the "Setting Manual" and "Operation Manual" included on the DVD-ROM.
• Confi gure the system settings according to the "Setting Manual" after completing the installation
and connection. The system will not function unless it has been properly confi gured.
• After installation, explain to the customer how to use the device, and be sure to provide the
accompanying DVD-ROM.
Important
Perform the installation and connection only after fully understanding this device and the manual.
Illustrations used in this manual may be different from the actual ones.
Example of System Confi guration
Example of System Confi guration
IX-MV
PC
(third party)
IX Support Tool
(included with IX-MV)
PoE-enabled switch
(third party)
LAN
PoE-enabled switch
PoE-enabled switch
(third party)
(third party)
PoE-enabled switch
PoE-enabled switch
(third party)
(third party)
IX-DA
IX-BA
IX-DF
IX-DF-HID
IX-DF-P
 Number of station registrations in address book
Product number
Product name
IX-MV
Master Station
IX-DA, IX-DF, IX-DF-HID-I*
1
, IX-DF-HID*
1
,
Video Door Station
IX-DF-2RA*
, IX-DF-PI*
, IX-DF-P*
1
2
2
IX-BA, IX-SS, IX-SS-2RA*
Audio Only Door Station
1
*
1
North America only.
*
Except North America. HID Card Reader is not included.
2
*
Only Master Stations can be registered (Max. 20).
3
Indicators
Indicators
Refer to the separate "IX-MV Operation Manual" for indicators other than those listed.
Name
Status (Pattern)
Status
Orange
Normal fl ashing
indicator
fl ashing
0.75 sec
0.75 sec
Fast fl ashing
0.25 sec
0.25 sec
Long interval fl ashing
0.5 sec
4 sec
Long irregular fl ashing
1 sec
0.25 sec
0.25 sec
0.25 sec
Short irregular fl ashing
1 sec
0.25 sec
0.25 sec
0.25 sec
Blue
light
Part Names and Accessories
Part Names and Accessories
Handset
Hook switch
Speaker
Keypad
MONITOR
button
Network Video
Network Camera
Recorder
(third party)
(third party)
Precautions
Precautions
Warning
PoE-enabled switch
(third party)
1. Voltage is applied to parts within the
equipment. Do not touch any parts that are
not associated with the installation, wiring,
or connection. Electric shock could result.
2. Do not dismantle or alter the unit.
Fire or electric shock could result.
Dismantling
EMERGENCY
or
alteration
*1
3. Keep the unit away from water or any
*1
*2
IX-DF-2RA
other liquid.
Fire or electric shock could result.
4. The unit is not explosion-proof. Do not
Number of station registrations
install or use near gases or fl ammable
in address book
materials.
500 stations
Fire or explosion could result.
20 stations*
3
20 stations*
3
Caution
1. Do not install or make any wire
terminations while power supply is
plugged in. It can cause electrical shock
or damage to the unit.
2. Before turning on power, make sure
: Light ON
: Light OFF
wires are not crossed or shorted. If not,
fi re or electric shock could result.
Explanation
3. Do not install the unit in any of the
Booting
following locations. Fire, electric shock,
or unit trouble could result.
• Places under direct sunlight or places
near heating equipment that varies in
Device
temperature.
error
• Places subject to dust, oil, chemicals,
hydrogen sulfi de (hot spring).
• Places subject to moisture and
Communication
humidity extremes, such as
failure
bathrooms, cellars, greenhouses, etc.
• Places where the temperature is quite
low, such as inside a refrigerated area
Firmware
or in front of an air conditioner.
version
0.25 sec
0.25 sec
• Places subject to steam or smoke (near
upgrading
heating or cooking surfaces).
Initializing
• Where noise generating devices
such as dimmer switches or inverter
electrical appliances are close by.
• Locations subject to extremely
During
powerful electric fi elds.
communication,
4. When mounting the unit on a wall,
Standby
install the unit in a convenient location,
but not where it could be jarred or
(Depends on
bumped. Injury could result.
setting)

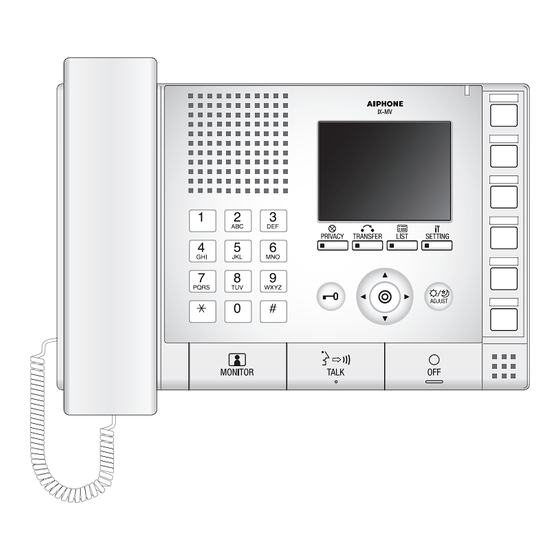

IX-MV
(Master Station)
Color LCD monitor
Status indicator (orange/blue)
SPEED DIAL Buttons (x6)
PRIVACY button / Privacy indicator (blue)
TRANSFER button / Transfer indicator (orange)
LIST button / List indicator (blue)
RESET button (beneath the signature plate)*
SETTINGS button / Settings indicator (blue)
Select button
ADJUST button
Up/Down and L/R buttons
Microphone
* Press and hold the reset button for
Door Release button
OFF button
longer than 1 second, then release to
TALK button / Talk indicator (blue)
restart station.
Negligence could result in death or serious injury.
5. Do not connect any terminal on the unit
to an AC power line.
Fire or electric shock could result.
6. Do not put any metal or fl ammable
material into the unit through the
openings.
Fire, electric shock, or unit trouble could
result.
7. Existing wiring such as chime wiring,
etc. may contain high voltage AC
electricity. Damage to the unit or
electric shock could result. Wiring
and installation should be done by a
qualifi ed technician.
Negligence could result in injury to people or damage to property.
5. Do not place or install the unit in the
locations subject to frequent vibration or
impact. If the unit falls, injury to people
or damage to the unit could result.
6. Do not run wires between movable
objects (doors, windows, etc.). It may
cause malfunction.
7. Do not press on the LCD or subject it to
a high impact. The LCD glass could be
punctured and result in an injury.
8. If the LCD is punctured, do not allow
skin contact with the liquid crystal
inside. Infl ammation could result.
* If liquid crystal is ingested,
immediately gargle with water and
seek medical attention.
* If contact with the eyes or skin
occurs, clean with pure water for at
least 15 minutes and seek medical
attention.
9. Do not put anything on the unit or cover
the unit with cloth, etc. Fire or unit
trouble could result.
10. Be sure to perform a call test or check
the chime volume with the handset on
the hook. If you operate the hook switch
with the handset on your ear, a sudden
call etc. may arrive causing damage to
your ear.
Issue Date : Nov. 2014 FK2121 A P1114 SQ 56145 Printed in Thailand
Accessories included
Back
MAC address
Installation Manual
(this manual) x1
Mounting bracket
Mounting bracket*
screw x4
Low voltage cable connections
CAT5e/6 cable connections
Wall mounting
Desk stand
screws x4
screws x4
Notice
1. Aiphone assumes no responsibility for damages as a result of delayed or unusable services, which were
due to failures in network equipment, communication services by Internet and cellular phone companies, line
interruptions, communication failures, or inaccuracies or omissions in the transmission unit.
2. We will under no conditions be liable for damage that occurs due to the inability to communicate due to
malfunctions, problems, or operational errors in this product.
3. If personal information leaked by eavesdropping or unauthorized access in the communication paths over
the Internet, please be aware that Aiphone assumes no responsibility for the damages.
4. We will under no conditions be liable for any damages or losses resulting from this product's contents or
specifi cations.
5. This manual was created by Aiphone Co., Ltd., all rights reserved. Copying a part of or this entire manual
without prior permission from Aiphone Co., Ltd. is strictly forbidden.
6. Please note that this manual may be revised or changed without prior notice.
7. Please note that product specifi cations may be changed for the sake of improvement without prior notice.
8. Please be aware that it is the customer's responsibility to ensure that their computer is secure. We will under
no conditions be liable for security failures.
9. This system is not intended for life support or crime prevention. It is just a supplementary means of
conveying information. Aiphone will under no conditions be liable for loss of life or property which occurs
while the system is being operated.
10. Keep the unit more than 1m (3.3') away from radio or TV set.
11. Install the unit in an area that will be accessible for future inspections, repairs, and maintenance.
12. As to other manufacturer's devices (such as sensor, detectors, door releases) used with this system, comply
with the Specifi cations and Warranty conditions that the manufacturers or venders present.
13. If the unit is down or does not operate properly, unplug the power supply or turn off the POWER switches.
14. If it is used close to a cellular phone, the unit may malfunction.
15. The unit can be damaged if dropped. Handle with care.
16. The unit turns inoperative during power failure.
17. In areas where broadcasting station antennas are close by, the intercom system may be affected by radio
frequency interference.
18. All the units, except for door station, is designed for indoor use only. Do not use outdoor.
19. This product, being a control unit of door release, should not be used as a crime prevention device.
20. It must be noted in advance that the LCD panel, though manufactured with very high precision techniques,
inevitably will have a very small portion of its picture elements always lit or not lit at all. This is not
considered a unit malfunction.
21. At a gate or porch illuminated by a fl uorescent lamp, the picture may vary, but this is not a malfunction.
22. If stripes or fi ne patterns are refl ected, outlines and colors shown may differ from actual people or
backgrounds, but this is not a malfunction.
23. Warm-color lighting shining on the video door station may change the tint of the picture on the monitor.
24. When using fl uorescent lights to illuminate the screen its colors may periodically change (color rolling), but
this is not a malfunction.
25. The unit case may become a warm with use, but this is not a unit malfunction.
Quick Start Programming Guide
Chinese RoHS paper
(English) x1
x1
DVD-ROM
Desk stand
(Support Tool, Manuals,
1
x1
Custom Sound (sample)) x1
x1
Cable tie
Signature plate*
1
Signature card*
1
x1
x1
x1
*1 Attached to the main unit.
