Honda Choke Adjustment Procedure
1. Engines are shipped with choke adjusted to the
completely closed position when the choke is
engaged. The choke only requires adjusting if
inspection reveals the choke is not fully closing.
2. Move throttle control to full choke position.
3. Turn choke adjusting screw counterclockwise fi ve
to seven turns.
4. Attempt to move choke rod in the direction of
the choke adjusting screw. If the rod has no
movement, no adjustment is necessary.
Lit. No. 96210/96211, Rev. 00
CHOKE ADJUSTMENT PROCEDURE
5. Return the choke adjusting screw to its original
position or clockwise until it touches choke lever.
6. If the choke rod has movement, bend engaging
tab in the direction away from choke adjusting
screw until there is no choke rod movement.
7. In the event bending the tab fails to remove all choke
rod movement, partially straighten out the bend in
the choke rod. This bend is near the governor arm.
8. The choke adjusting screw, when properly
adjusted, stops excessive force from being
exerted on the choke actuator.
10

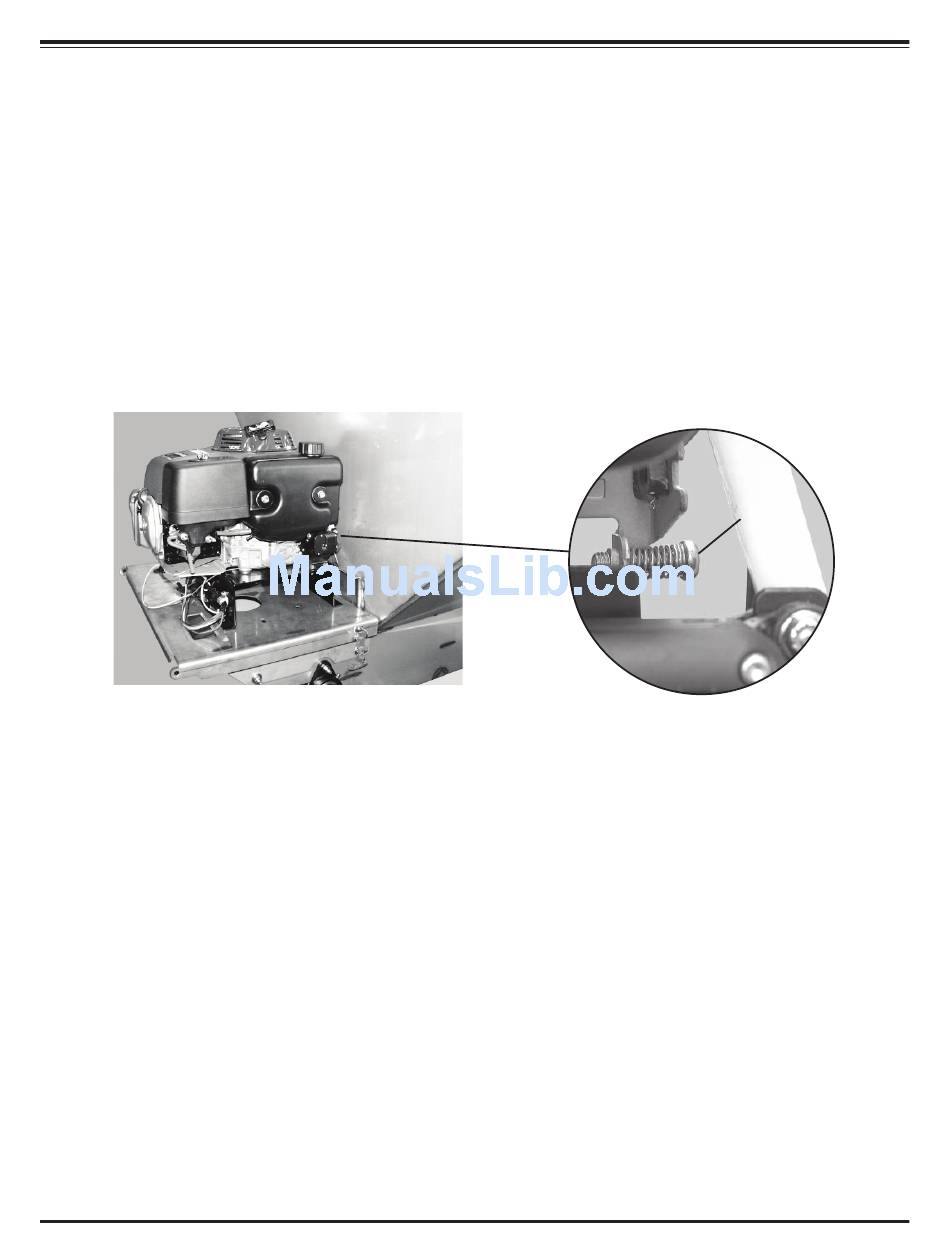

Choke
Adjustment
Screw
June 15, 2008
