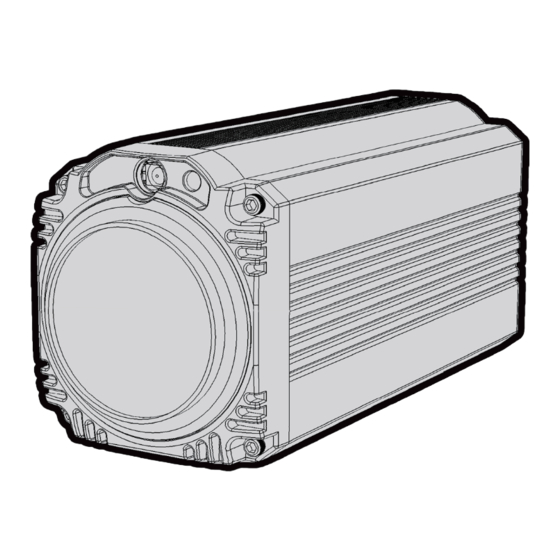

Block camera
Hide thumbs Also See for BC-80:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
BLOCK CAMERA
BC-80
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Datavideo BC-80

Summary of Contents for Datavideo BC-80

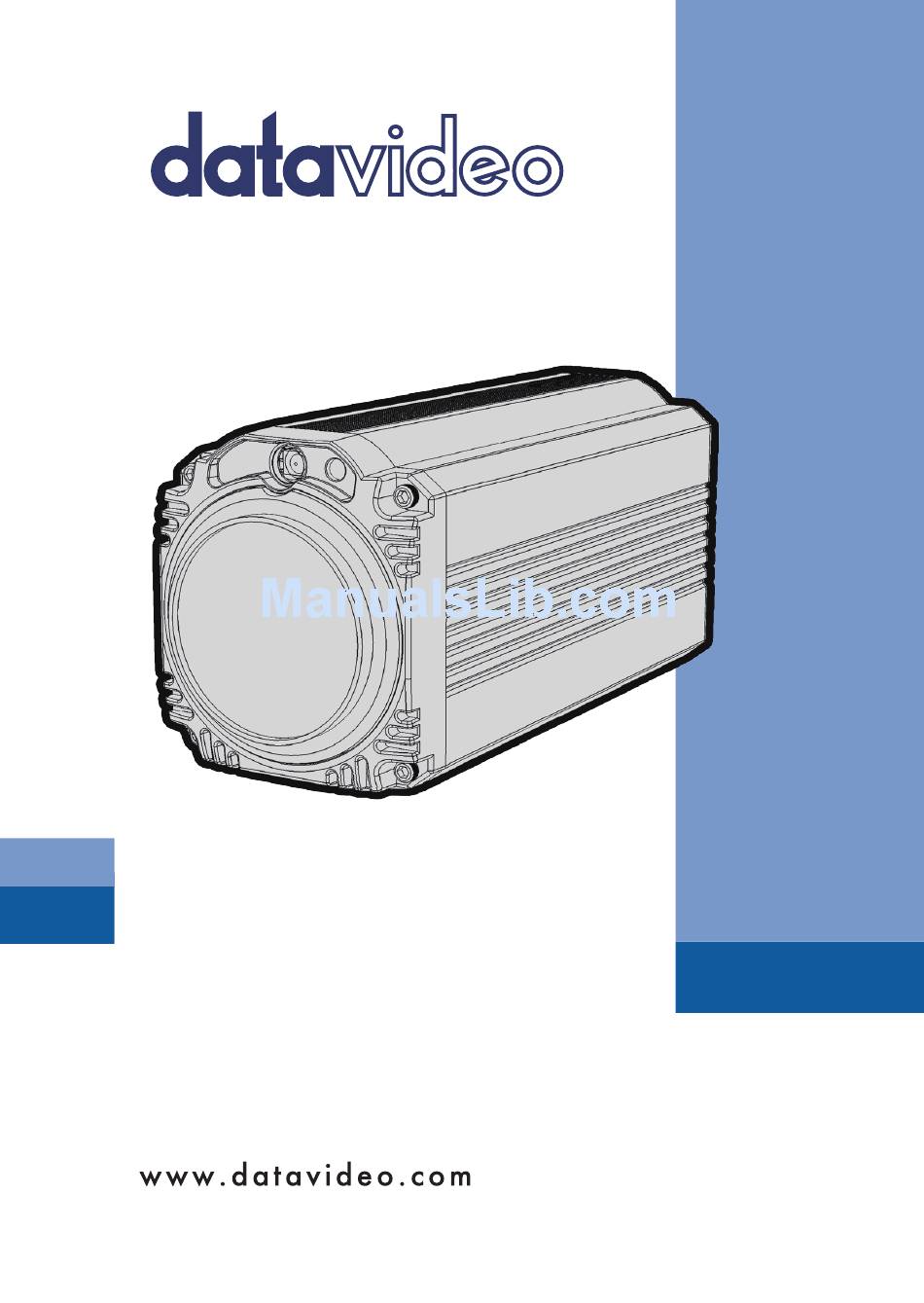

  • Page 1 BLOCK CAMERA BC-80 Instruction Manual...

  • Page 2: Table Of Contents

    Table of Contents FCC COMPLIANCE STATEMENT ..........4 WARNINGS AND PRECAUTIONS ..........4 WARRANTY ................5 ..............5 TANDARD ARRANTY ............... 6 HREE ARRANTY DISPOSAL ................7 1. INTRODUCTION ..............8 1.1 F ................8 EATURES 2. SYSTEM DIAGRAM .............. 9 3.
  • Page 3 Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.

  • Page 4: Fcc Compliance Statement

    This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 5: Warranty

    Warranty Standard Warranty • Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase. • The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

  • Page 6: Three Year Warranty

    Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year. • The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

  • Page 7: Disposal

    Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 8: Introduction

    1. Introduction The BC-80 Block Camera is a small HD camera with an infra-red remote control. It can be used for HD high quality shooting in an environment where space is limited. The image resolution is 1920x1080. The BC-80 provides 30x optical focus, and the image output interfaces are SDI and HDMI.

  • Page 9: System Diagram

    2. System Diagram...

  • Page 10: Connections

    3. Connections 3.1 Front View IR Receiver Receives signal from the IR remote control. Tally Light As the camera is booting the tally light stays solid green and turns solid red for about three seconds just before the boot is complete. The tally light remains solid green after the camera finishes booting.

  • Page 11: Rear Panel

    3.2 Rear Panel...
  • Page 12 SDI Output Video output connected to SDI monitor. HDMI Output Video output connected to HDMI port of the monitor. RS-422 Control Remote control port using Port the RS-422 control protocol. RS-422 Control Protocol for details. 12V DC Power DC in socket connects the supplied 12V PSU.
  • Page 13 Firmware Connects USB drive for Upgrade Port firmware upgrade. For details, please refer to the Firmware Upgrade section. DIP Switch DIP Switch sets the camera VISCA ID, Remote Control Protocol, and Resolution, Video Mode Selection Method, and Camera ID Assignment. For details, please refer to the Switch Settings section.

  • Page 14: Ir Remote Control

    4. IR Remote Control Use the IR remote control that comes with the product package to operate the BC-80 Block Camera. The IR remote control functions are described in the table below.
  • Page 15 Item Description Reset Press RESET or XYZ button to return the camera lens to the default zoom position (Z:0000). Group Not Applicable Select CAM1-CAM4 in a multi- camera environment Press Camera Select buttons to select a camera from Camera 1 to Camera 4 in a multi-camera environment.
  • Page 16 Manually focus camera lens on a subject Press either (F) FAR button or (N) Focus Setup NEAR button to manually focus the camera lens onto the subject. Before using manual focus, make sure Auto Focus mode is turned off by pressing the AUTO FOCUS button.
  • Page 17 Make the subject appear brighter Adjust the iris opening (aperture), to control the amount of light coming through the lens (i.e. the "exposure"). Press IRIS+ button to Iris Control enlarge the iris opening to allow more light to come in so that the subject appears brighter and press IRIS- button to shrink the iris opening to allow less light to come...
  • Page 18 Zoom Zoom In/Out Press either (T) TELE button to zoom Buttons in on the subject such that it appears to be close to the camera or (W) WIDE button to zoom out from the subject such that it appears to be far away from the camera.

  • Page 19: Osd Menu Options

    5. OSD Menu Options On-Screen Menu allows the user to change various camera settings such as shooting conditions and the system setup. Press Menu button on the IR remote control to enter the on-screen menu as shown below. [MAIN MENU] 1: Camera Set (Normal) 2: Video Output 3: Remote Control...
  • Page 20 Enabling DIP SW 8 allows you to use the DIP switch to set the video mode instead of the remote control. Pattern Pattern generates color bars for color calibration. Remote control settings 3. Remote Control 4. System System configuration Fog Correction When the surrounding area of the subject is foggy and of a low contrast, turning on fog correction will make the subject appear...
  • Page 21 Camera Video Remote Camera Set System Escape Output Control (Advance) (Normal) 1. Remote 1. Camera Camera Selection Source Display Name Name 2. Video 2. Set RS- 2. Tally 2. Mirror 2. Mirror Mode Light 3. White 3. Set 3. Reset 3.
  • Page 22 First Level Second Level Third Level Fourth Level Sub-Option Main Options Sub-Options Parameters Parameters Descriptions NAME DISPLAY SW ON/OFF LOWER LEFT 1. Camera UPPER LEFT Name POSITION LOWER RIGHT UPPER RIGHT ESCAPE 2. Mirror AWB(AUTO) AWC (ONE PUSH) (MANUAL) MODE 3200K (INDOOR) 5600K (OUTDOOR)
  • Page 23 F2.4 F2.8 F3.4 F4.8 F5.6 F6.8 F9.6 CLOSE ESCAPE AGC MODE 0 dB ~ GAIN MANUAL GAIN LIMIT 9 dB 12 dB 15 dB DAY (COLOR) 18 dB 21 dB GAIN LIMIT 24 dB 27 dB 30 dB 33 dB 6.
  • Page 24 720p59.94 720p50 1080p59.94 1080p50 1080p29.97 1080p25 3. Pattern COLOR BAR 4. Escape (Configurable RS-422, SW 1. Remote using DIP switch Source bit 4 ONLY) DVIP, SW BY MENU CAMERA ID MODE BY SWITCH CAMERA ID 9600 2. Set RS-422 19200 RS-422 BAUD RATE 38400...
  • Page 25 DEBUG FRAME ON/OFF PWR ON CAM ON/OFF TEST DUAL LVDS TEST ON/OFF INT. COLOR BAR ON/OFF ESCAPE Escape RED/GREEN GREEN 2. Tally Light 3. Reset All YES/NO SW VERSION ESCAPE MB CPU V00.31b 4. Update MB FPGA V006 Software UPDATE ALL YES/NO ESCAPE 5.
  • Page 26 MWB RED COMPONENT (Enabled in 0~128~255 (Manual) mode) MWB BLUE COMPONENT (Enabled in 0~128~255 (Manual) mode) ESCAPE AUTO FOCUS MODE MANUAL SENSITIVITY NORMAL 4. Focus FOCUS SPEED ESCAPE AUTO IRIS MODE MANUAL F1.6 F2.0 F2.4 F2.8 F3.4 F4.8 Manual IRIS 5.
  • Page 27 0dB~GAIN MANUAL GAIN LIMIT 9 dB 12 dB 15 dB 18 dB 21 dB DAY (COLOR) 24 dB GAIN LIMIT 27 dB 30 dB 33 dB 36 dB 39 dB ESCAPE DNR(AT AGC DNR LEVEL ESCAPE OFF/ON 7. Fog CORRECTION Correction ESCAPE 8.
  • Page 28 1/100 1/120 1/125 1/150 1/180 1/215 1/250 1/300 1/350 1/425 1/500 1/600 1/725 1/1000 1/1250 1/1500 ESCAPE STANDARD MODE1 (WD OFF) MODE2 (WD 14. Gamma OFF) Mode MODE3 (WD OFF) MODE4 (WD OFF) (This option is enabled after 15. WD Mode VE/ON/OFF AGC is turned 16.

  • Page 29: Dip Switch Settings

    6. DIP Switch Settings DIP SW 1/2/3 VISCA ID ON / OFF / OFF VISCA-ID 1 OFF / ON / OFF VISCA-ID 2 ON / ON / OFF VISCA-ID 3 OFF / OFF / ON VISCA-ID 4 ON / OFF / ON VISCA-ID 5 OFF / ON / ON VISCA-ID 6...

  • Page 30: Rmc-180 Ptz Camera Control Unit

    7. RMC-180 PTZ Camera Control Unit The RMC-180 PTZ Camera Controller is designed to control up to 4 Datavideo Block/Pan Tilt Zoom (PTZ) cameras such as the BC-80. The four RJ-45 ports provided on the RMC-180 rear serve to connect...
  • Page 31 RMC-180 Controller BC-80 Camera (RJ-45 Port) (RS-422 Port) White/Orange White/Orange Orange Orange White/Green White/Green Blue Blue White/Blue White/Blue Green Green White/Brown White/Brown Brown Brown...

  • Page 32: Dvip Configuration Tool

    DVIP Configuration Tool. Step1. Connect your PC directly to the DVIP port of the BC-80 camera. If there is more than one BC-80 camera, please connect all the BC-80 cameras to an Ethernet router.
  • Page 33 Step2. After logging in the interface card, the user will be able to view the device name, MAC address and number of device.

  • Page 34: Device Search

    8.1.2 Device Search  On the tool bar, users can click the search icon to search for all DVIP devices. 8.1.3 Clearing Device List  On the tool bar, users are allowed to clear the device list by clicking the “Device List Clear” button.

  • Page 35: Detailed Device Network Information

    8.1.4 Detailed Device Network Information  After selecting a device in the left column, you will then be able to view each device information on the right, including name, MAC, IP address and etc.

  • Page 36: Modify Device Information And Write To Device

    8.1.5 Modify Device Information and Write to Device  The user is allowed to modify the device information in the right column such as device name, MAC, IP address and etc. Click the Save button to write the information into the device. Right after the Save button is clicked, you will be able to see a prompt message at the top right corner to request for a device reboot for the new settings to become effective.

  • Page 37: Switch To Other Network Interface

    8.1.6 Switch to Other Network Interface  To select other network interface cards, click Network Network Card...

  • Page 38: Language Selection

    8.1.7 Language Selection  On the tool bar, select a language: Traditional Chinese, Simplified Chinese or English...

  • Page 39: Firmware Upgrade

    9. Firmware Upgrade Copy MB CPU and MB FPGA image files into the root directory of a USB hard drive (<16 GB) and insert it into the USB Upgrade port (You may use a USB extension cord). Open the OSD menu using IR remote control by pressing the MENU button.

  • Page 40: Dimensions

    10. Dimensions All measurements in millimeters (mm)

  • Page 41: Specifications

    11. Specifications Video Image Pickup Element 1/2.8” type Exmor CMOS sensor Effective Picture Approx. 2.38 Mega pixels Elements HDMI & SDI: 1080p/59.94/50/29.97/25 Signal System 1080i/59.94/50 720p/59.94/50 S/N Ratio 50 dB 50%, High Sensitivity Mode Min. Illumination Color : 0.75 lx (F1.8, AGC ON, 1/30 sec) 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180),...
  • Page 42 Lens Type 30x Optical Zoom Focal Length F=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7 Angle of View Approx. 63.7 degrees (WIDE END) / (Horizontal) 2.3 degrees (TELE END) Filter M52.0 x 0.75 Thread with UV Protection RoHS Compliant Video Output Video Output...

  • Page 43: Service And Support

    It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to DATAVIDEO WORLDWIDE OFFICES common questions, support requests or contact your local office below.
