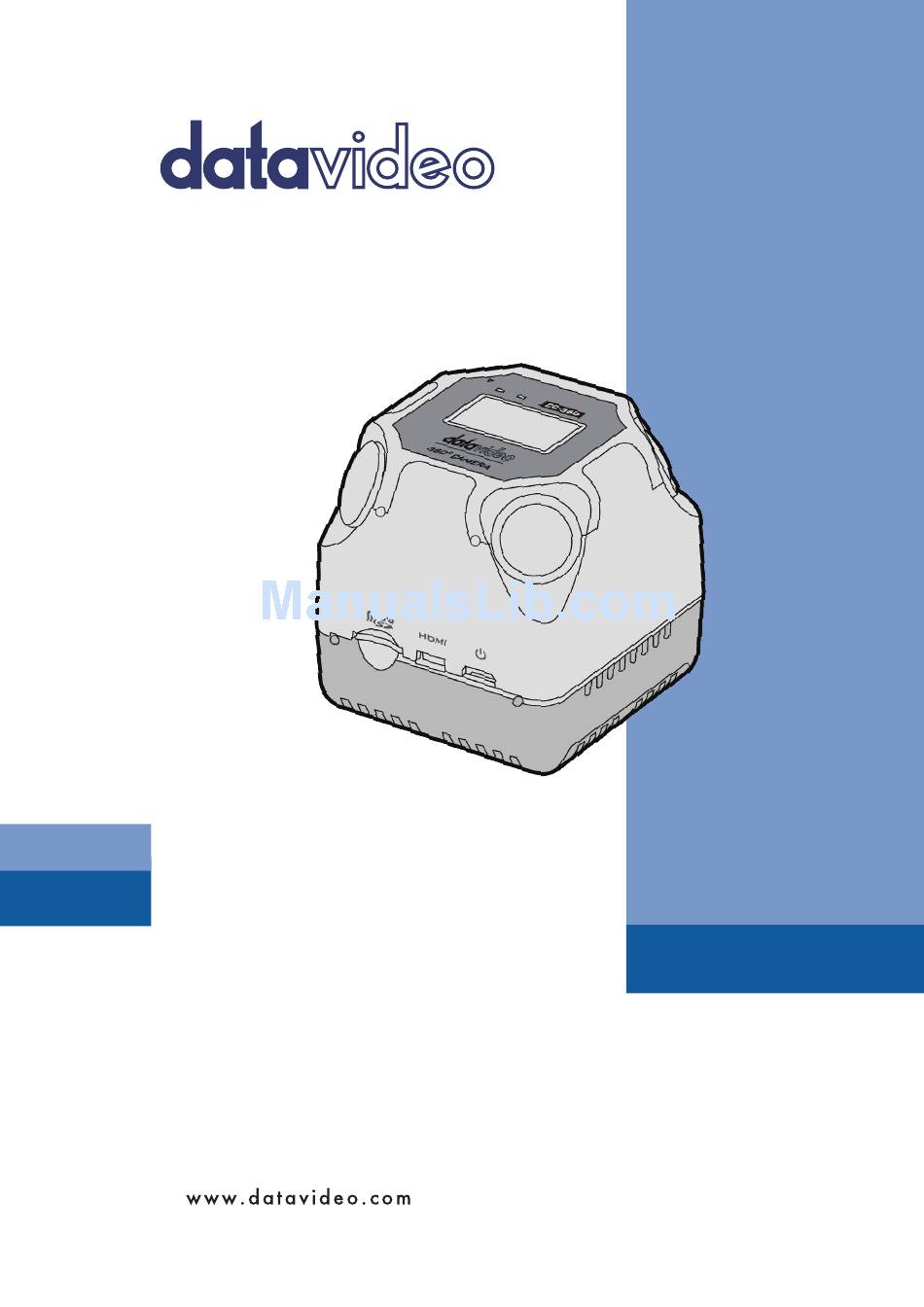

  • Page 1 4K 360- DEGREE CAMERA CC-360 Instruction manual...

  • Page 2: Table Of Contents

    ......................... 5 HREE ARRANTY DISPOSAL ............................. 5 PRODUCT OVERVIEW ......................6 FEATURES ..........................6 CONNECTIONS AND CONTROLS ..................... 6 HOW TO OPERATE CC-360 FROM MOBILE DEVICE ..............8 CC-360 APP ......................... 8 NSTALL ON C ........................8 OWER AMERA ........................9 ONNECT TO CC-360 APP ........................
  • Page 3 Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information.

  • Page 4: Fcc Compliance Statement

    AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. 8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

  • Page 5: Warranty

    Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year. • The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

  • Page 6: Product Overview

    • File storage on Micro SD Card. • Micro USB and Micro HDMI for connecting external devices. 3. Connections and Controls In this section, the user will be introduced the individual functions of the CC-360 camera. Buttons Power Button ON/OFF Press power button to power on the camera.
  • Page 7 Hold shot button to switch Photo / Record mode. • Motion Setting Mode The Motion Setting Mode allows the user to select modes by simply rotating the camera. To enter the motion setting mode, press and hold the shot button and •...

  • Page 8: How To Operate Cc-360 From Mobile Device

    • 4. How to Operate CC-360 from Mobile Device To operate CC-360 from mobile device, the user should first install the CC-360 APP on mobile device, which will then be connected wirelessly to the camera after CC-360 is powered ON.

  • Page 9: Connect To Wi-Fi

    Wi-Fi connection, you will be able to view the live image right away. 5. CC-360 APP After the CC-360 APP is opened and if it is your first access, the live image will be displayed in the Global Mode...

  • Page 10: Switch Button

    Note: You can only hear the recorded audio after transferring recorded video to the mobile device. 5.3 View Angle Control Modes The CC-360 APP offers the user three view angle control modes. Icon Control Modes and Descriptions Normal Slide on the mobile screen to change the view angle.

  • Page 11: Status Icons

    Icon Orientation Modes and Descriptions Standard Global Displays a full 360 degree image. Note: The view angle cannot be changed in this mode. Front Displays a cropped image (90 degree orientation) and the user is allowed to freely adjust the view angle. Little Planet Displays the image in 360 degrees (circular orientation).

  • Page 12: Shortcut Menu

    Below is a list of available options: • None • Burst – 3 Shots • Burst – 5 Shots • Burst – 10 Shots • Selfie – 2 Sec • Selfie – 10 Sec Recording Mode Tap this icon to open a pop-up window on which you will be able to configure the Time- Lapse mode.
  • Page 13 • Video: Video files File Display One image per screen Mode Four images per screen Device Mode CC-360 Camera SD Card Mobile Device Storage Device Storage Tap this icon to view folders and files on the mobile View device storage (Android and iOS).

  • Page 14: View Modes

    6. View Modes The View Mode icon can be found at the bottom right corner of the screen. Tap the icon to set up the display orientation mode and the video resolution. First tap the mode icon, and then click the desired resolution to complete the configuration, which will be applied to the live display, captured picture and recorded video.

  • Page 15: Quad

    7. Camera Setup Tap this icon at the bottom left corner to set up the CC-360 APP. 7.1 Brightness (EV) Change brightness of the target image by tapping the desired EV value.

  • Page 16: Gain (Iso)

    This slider allows the user to adjust the lateral stitching gap, i.e. the gap between the top and bottom images. This slider allows the user to adjust the surrounding stitching gap. • Note 1: Before using the stitching function, make sure the object shot is placed at least 60 centimeters from the camera lens.

  • Page 17: Sharpness

    Tip: To get a better result in the dark environment, we recommend setting the Shutter Speed to NON AUTO first and then select 1/60 or 1/120. In ISO, disable AUTO and then set an appropriate value. 7.5 Sharpness Tap this icon to open the Sharpness slider as shown below to adjust the image sharpness.

  • Page 18: Time Lapse Mode

    • 60 Hz (NTSC) 7.8 System Format Micro SD Card: CC-360 accepts micro SD cards with capacities ranging from 8 GB to 128 GB. Format the camera’s SD card to FAT32. Note that disk formatting will erase all files on the SD card.

  • Page 19: Advanced Settings

    After the camera is connected to the wireless access point, you will no longer be able to connect directly to the camera. To use the CC-360 APP to operate the camera, please connect your mobile device to the same access point. After that, activate the Remote Connection and Section 8 then select the camera’s IP address.

  • Page 20: Network Streaming

    IP address, mask address, gateway IP, DNS server IP and the port number. 8.2 Physical Connections To establish physical connection with a hub or router, connect the CC-360 to the hub or router via a Micro-USB to RJ45 adapter. The connection setup is shown in the diagram below.

  • Page 21: View On Vlc Player

    This section provides guidance on video playback on a mobile device. 1. Connect your mobile device to the same network to which the camera is connected. 2. Run the CC-360 APP. 3. Tap the Wi-Fi icon at the top right corner of the screen and on the pop-up window, select Remote Connection and then enter the IP address along with the port number.

  • Page 22: 360° Live Streaming

    3. After login, the user will be able to view the camera’s live image on the Streaming page (please enable Adobe Flash player in your browser). 4. If on the Streaming page, the camera’s live image does not appear, please enable Live Streaming in RTMP Configuration and make sure you have entered the correct Server URL/Stream Key.

  • Page 23: Wireless Connection

    2. Connect the mobile phone to the camera’s SSID (SSID: US_XXXX / Password: 88888888). Set the camera to Client Mode so that the camera can be connected to the access point. 3. On the CC-360 APP, select an SSID of the AP with Internet connection and then enter the password.

  • Page 24: Youtube

    10. Wait until the streaming starts on the live streaming page on the PC. YouTube Follow the procedure below to set up live streaming on YouTube. 1. Login YouTube on PC and click Upload. 2. Under LIVE STREAMING, click “Get started” button. 3.

  • Page 25: Facebook

    8. Copy the [Primary Server URL/Streaming Name] Ex: rtmp://a.rtmp.youtube.com/live2/0x4c-b6hv-dw56-ezqx 9. Paste the [URL/Streaming Name] into the Server URL/Stream Key field in CC-360 APP’s RTMP Configuration option. 10. Click “Live control room” and you can start streaming after the stream connection is established.
  • Page 26 4. Paste the [URL/Streaming Name] into the Server URL/Stream Key field in CC-360 APP’s RTMP Configuration option. 5. As soon as the preview appears, you can start streaming live.

  • Page 27: Firmware Update Procedure

    9. Firmware Update Procedure Datavideo usually releases new firmware containing new features or reported bug fixes from time to time. Customers can either download the CC-360 firmware as they wish or contact their local dealer or reseller for assistance. This section outlines the firmware upgrade process which should take approximately 10 minutes to complete.

  • Page 28: Frequently-Asked Questions

    10. Frequently-Asked Questions This section describes problems that you may encounter while using CC-360. If you have any questions, please refer to related sections and follow all suggested solutions. If problem still exists, please contact your distributor or the service center.
  • Page 29 QUAD will have a resolution of 2160p on any 16:9 players. I have edited my 360 video and The videos recorded by CC-360 cameras uploaded it to YouTube, but it cannot be contain 360 metadata and can be uploaded played as a 360 video.

  • Page 30: Dimensions

    11. Dimensions Bottom All measurements in millimetres (mm)

  • Page 31: Specifications

    12. Specifications CC-360 View Angle 360° x 210° Image Sensor 2.1 MP CMOS Sensor x 4 Lens 2.3 mm wide angle lens x 4 Photo Format JPEG Video Format H.264 Status Screen 0.96” OLED Photo Resolution 6144 x 1792 (11M)

  • Page 32: Service & Support

    Service & Support It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, DATAVIDEO WORLDWIDE OFFICES please visit www.datavideo.com to access our FAQ section.
