Connections & Setup
How to Connect: Dolby Digital Receiver + Speakers
If you own a Dolby Digital® or PCM (Pulse-Code Modulation) receiver that uses an optical cable-type input, connect an
optical cable for excellent audio quality. Connect one end of the optical cable to the DIGITAL AUDIO OUT jack on your TV
to the Optical Input Jack on your receiver/amplifier receiver. Consult your Dolby Digital receiver manual to complete
speaker hookup to the receiver.
You might want to switch INTERNAL SPEAKER SOURCE to EXT AMP and connect the audio receiver's CENTER SPEAKER
OUTPUT to the TV's EXT AMP input to use the TV's internal speakers as a center speaker.
•
Go to Audio menu and select Audio Select if your receiver can decode DD and PCM.
•
Go to Audio menu and select PCM if your receiver can decode only PCM.

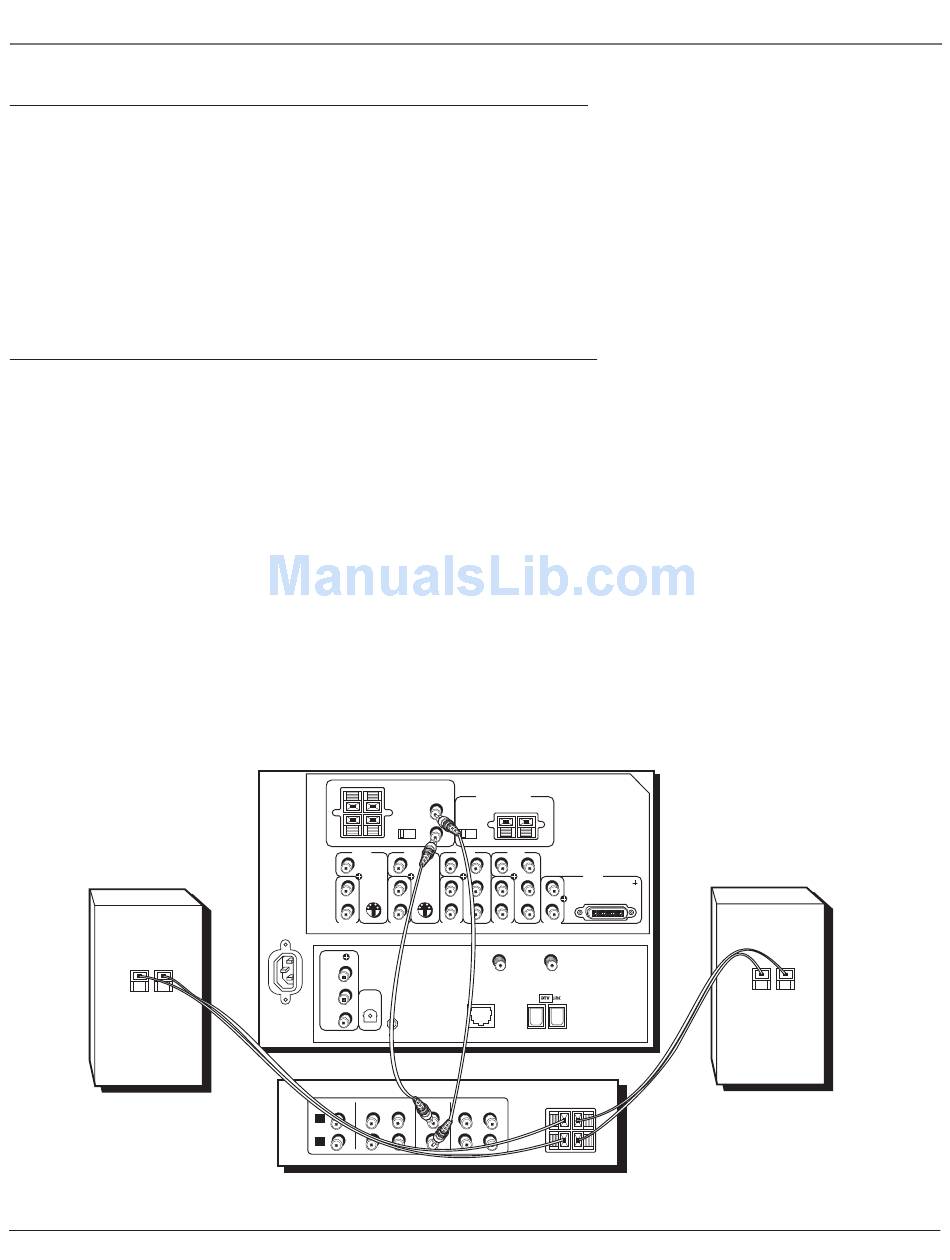

How to Connect: A/V Amplifier/Receiver + Speakers
1. Connect the FIXED/VARIABLE AUDIO OUTPUT from the TV to an A/V amplifier/receiver using audio cables.
2. Be sure to go to the Fixed/Variable Out screen in the Audio menu and select whether you want the FIXED/VARIABLE
AUDIO OUTPUT jacks to send fixed volume audio or variable volume audio.
• Fixed Output provides fixed-level audio output from the TV. This audio output is ideal for connecting to an A/V
receiver that has its own volume control.
• Variable Output provides variable-level audio output. Volume levels are controlled by the volume controls on
the TV and TV remote control.
3. Use speaker wire to connect the TV to external speakers.
• The EXT/INT W/EXT SURR switch beside the jacks lets you turn the TV's internal speakers on or off. The
default position of the switch is INT W/EXT SURR.
• If you connect speakers and place the switch in the INT W/EXT SURR position, you get audio from the internal
speakers as well as L minus R from both external speakers. This connection gives you a matrix surround effect.
• If you connect speakers and place the switch in the EXT position, you get audio from the external speakers
only. The TV's internal speakers are turned off.
Notes: The external speaker rating is 8 ohms with 30 watts total power handling capabilities.
Subwoofer status is not affected by the EXT/INT W/EXT SURR switch setting.
+
–
Back of Right Speaker
*"Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.
10
RIGHT
LEFT
FIXED/VARIABLE
AUDIO
OUTPUT
CENTER CHANNEL INPUT
MAXIMUM AMPLIFIER POWER RATING
SPEAKER
INTERNAL
(60 WATTS into 8 OHMS)
SELECT
SPEAKER
SOURCE
INT W/
R
EXT
EXT
SURR
TV EXT AMP
L
EXTERNAL SPEAKERS
VIDEO
VIDEO
VIDEO
INPUT 1
INPUT 2
INPUT 3
V
V
V
V
P
R
S-VIDEO
S-VIDEO
L/
L/
L/
P
L/
MONO
MONO
MONO
B
MONO
R
R
R
Y
R
AUDIO
AUDIO
AUDIO
AUDIO
INPUT 1
INPUT 2
INPUT 3
INPUT 4
RECORD
OUTPUT
VIDEO
ANTENNA B
INPUT
AUDIO
DIGITAL
AUDIO
ETHERNET
OUTPUT
R
L
G-LINK
CD
TAPE
TV
VCR
IN
IN
OUT
IN
IN
OUT
L
R
TV
VIDEO
INPUT 4
P
R
VIDEO
INPUT 5
DVI-HDTV
P
L/
B
MONO
Y
R
AUDIO
INPUT 5
ANTENNA A
INPUT
A/V AMPLIFIER
RIGHT
LEFT
+
–
+
–
Back of Left Speaker
